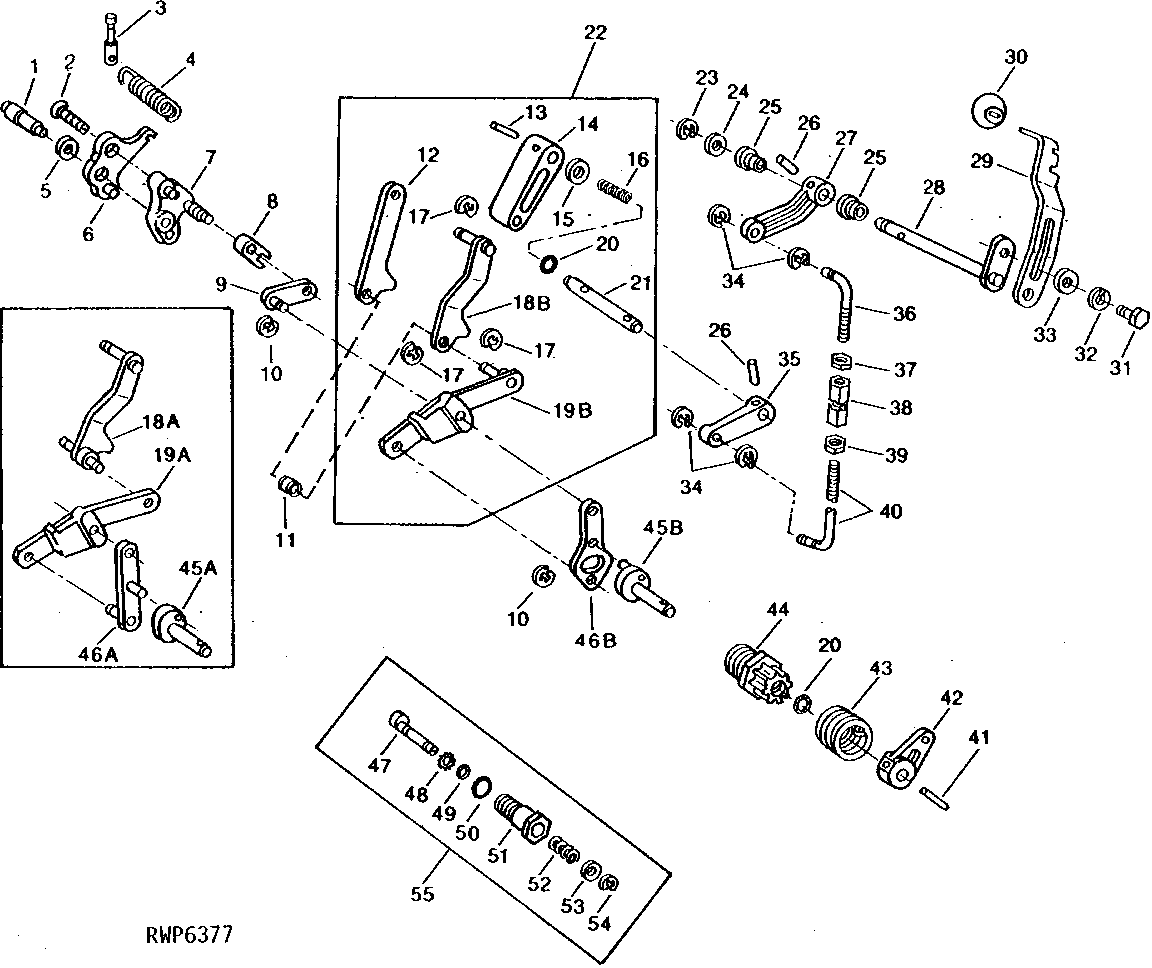

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL (TRACTOR SERIAL NO. -052148) [04D03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64296	1	SHAFT	-
1	R40949	1	SHAFT	(SUB R64296)
2	T22228	1	SCREW	-
3	R41108	1	PIN FASTENER	-
3	R66894	1	PIN	-
4	R53033	1	SPRING	(SUB R60730)
4	R60730	1	Extension Spring	-
5	24H1321	1	Shim	0.018"
6	AR40676	1	LEVER	-
7	AR40754	1	LINK	(SUB AR81783, R64845, T519T AND R64843)
8	R40885	1	NUT	-
9	AR40675	1	PIN FASTENER	-
10	R72653	6	Snap Ring	(SUB FOR M2396T)
11	R41661	1	BUSHING	-
12	R52828	1	LINK	-
13	R56504	3	Spring Pin	-
14	R56821	1	ARM	(SUB FOR R52824)
15	24H1341	1	Washer	17/32" X 15/16" X 0.060"
16	B423R	1	EXTENSION SPRING	-
17	R72653	3	Snap Ring	(SUB FOR M2396T)
20	R394R	2	O-Ring	-
21	R52823	1	SHAFT	-
22	AR86775	1	STARTER MOTOR KIT	LOAD SELECTOR CONTROL LINKAGE
23	R26871	1	Snap Ring	-
24	24H1227	1	Washer	17/32" X 13/16" X 0.060"
25	R41076	2	Grommet	-
26	R56504	2	Spring Pin	-
27	R40915	1	Lever	-
28	AR74767	1	SHAFT	(SUB FOR AR55625)
29	R51353	1	LEVER	-
30	R49932	1	KNOB	-
31	19H1813	1	CAP SCREW	5/16" X 5/8"
32	12H303	1	Lock Washer	5/16"
33	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
34	R72654	4	Snap Ring	(SUB FOR R27507)
35	R40892	1	LEVER	-
36	R55140	1	HOOK BOLT	-
37	14H1025	1	Nut	1/4"
38	R52422	1	Turnbuckle	-
39	14H649	1	Nut	1/4"
40	R55143	1	HOOK BOLT	-
41	34H284	1	Spring Pin	3/16" X 1-1/4"
42	R51359	1	Control Lever	-
43	R51747	1	SPRING	-
44	R52174	1	BEARING HOUSING W/O BEARING	(ALSO ORDER U13639)
47	R55373	1	ECCENTRIC	(ALSO ORDER R55374) (SUB FOR R51028)
48	12H310	1	Lock Washer	3/8"
49	A4365R	1	O-Ring	-
50	R26906	1	O-Ring	-
51	R55374	1	BUSHING	(ALSO ORDER R55373) (SUB FOR R51027)
52	R50559	1	SPRING	-
53	24M7096	1	Washer	10.500 X 18 X 1.600 MM
54	R72653	1	Snap Ring	-
55	AR59026	1	BUSHING	KIT, WITH ECCENTRIC
18A	AR58236	1	LINK	(SUB AR72293 AND AR72294)
18B	AR72294	1	LINK	-
19A	AR55084	1	LINK	(SUB AR72293 AND AR72294)
19B	AR72293	1	LINK	-
45A	R54128	1	SHAFT	(SUB AR72292 AND AR79505)
45B	AR79505	1	SHAFT	-
45B	AR72291	1	SHAFT	(SUB AR79505)
46A	AR40753	1	LINK	(SUB AR72292 AND AR79505)
46B	AR72292	1	LINK	-

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL (TRACTOR SERIAL NO. -052148) [04D03]

Нет текстового описания
