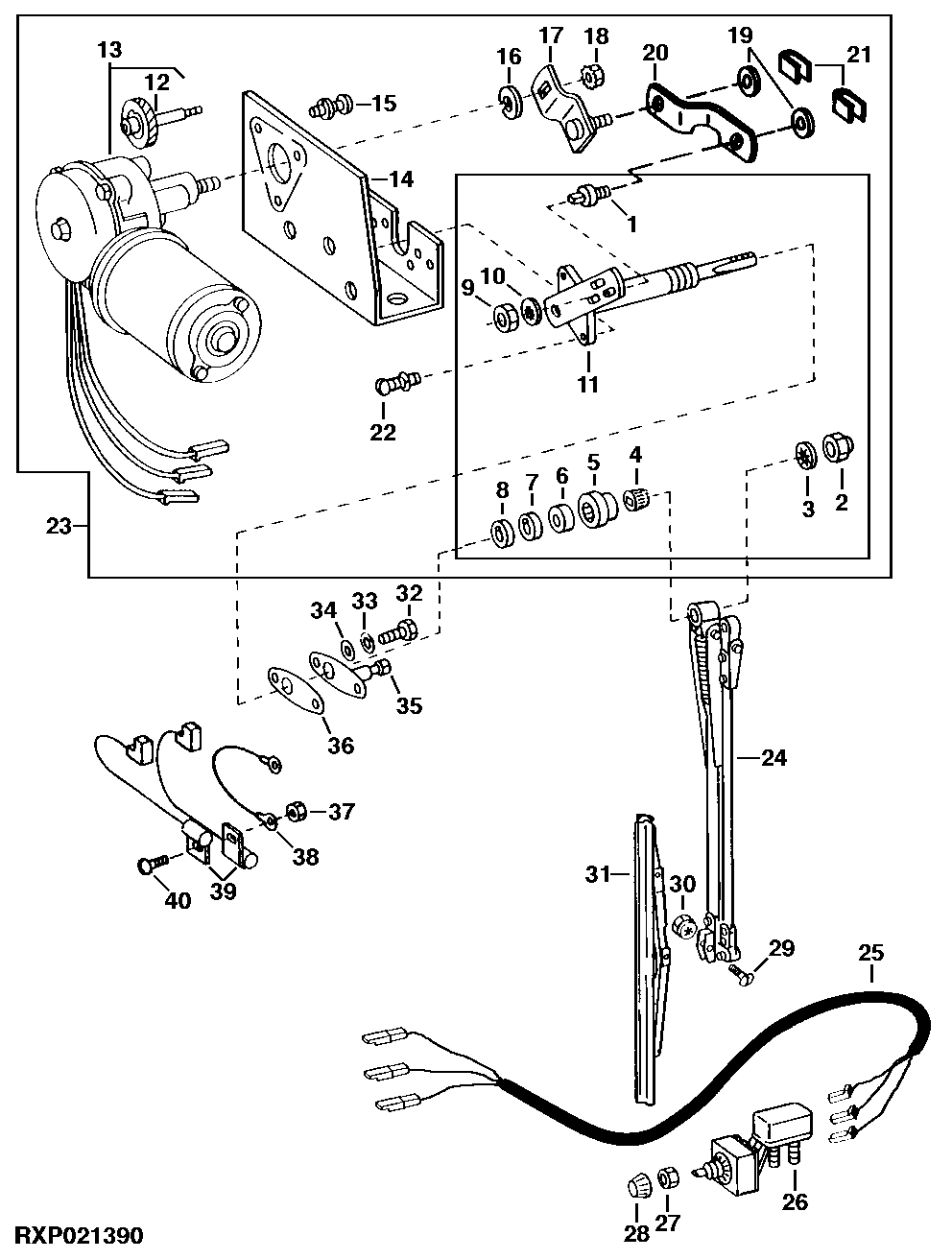

RIGHT-HAND WINDSHIELD WIPER AND MOTOR (WIPER MOTOR NO. AR59444) [02F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U46507	1	PIN	-
2	U46514	1	NUT	-
2	R63671	1	Nut	-
3	12H303	1	Lock Washer	5/16"
4	U46513	1	NUT	-
4	R63670	1	Weld Nut	-
5	U46512	1	CAP	-
5	R63669	1	Cap	-
6	U46511	1	NUT	-
6	R63668	1	Nut	-
7	U46510	1	WASHER	-
7	R63667	1	Washer	-
8	U46509	1	WASHER	-
8	R63666	1	Washer	-
9	14H649	1	Nut	1/4"
10	12H297	1	Lock Washer	1/4"
11	AR55021	1	SHAFT	(SUB AR78595)
11	AR78595	1	Shaft	(SUB FOR AR55021)
12	RE13281	1	GEAR	(SUB FOR AR75606)
13	AR59444	1	MOTOR	(A) (SUB RE58851)
14	AT103999	1	BRACKET	(SUB FOR U46515)
15	AU43854	3	SCREW WITH WASHER	-
16	U46508	1	WASHER	-
17	AU43954	1	ARM	-
18	AU43857	1	LOCK NUT	-
19	T32255	2	Shim	-
20	AU43853	1	Link	-
21	U46506	2	Clip	-
22	AU43855	2	SCREW WITH WASHER	(SUB 12M7060 AND 21H1298)
23	AR56687	1	MOTOR	(ORDER COMPONENT PARTS)
23	AR78594	1	MOTOR	(ORDER COMPONENT PARTS)
24	RE36108	1	Arm	(SUB FOR AR56690)
25	AR60051	1	WIRING HARNESS	-
26	AR64992	1	Rotary Switch	(SUB FOR AR57228)
27	R44165	1	Lock Nut	-
28	AR69370	1	KNOB	(SUB FOR AR49969)
29	R92205	1	Screw	(SUB FOR T35441)
30	T35440	1	Lock Nut	-
31	AR56694	1	Wiper Blade	-
32	19H3287	2	Cap Screw	1/4" X 2-5/8"
33	12H302	2	Lock Washer	1/4"
34	24H1286	1	Washer	9/32" X 1/2" X 1/16"
34	12H356	1	Lock Washer	1/4"
35	AR56688	1	PLATE	(SUB RE36215)
35	RE36215	1	Plate	(SUB FOR AR78596, AR56688 OR AU42023)
35	R97997	1	Nut	(USE WITH RE36215) (NLA)
36	R63672	1	Adapter Fitting	(SUB FOR R50453)
37	14H605	1	Nut	0.164"
38	AR87493	1	Wiring Lead	-
39	AR71570	1	Capacitor	-
40	21H1299	1	SCREW	0.164" X 3/8"

RIGHT-HAND WINDSHIELD WIPER AND MOTOR (WIPER MOTOR NO. AR59444) [02F19]
