Открытый узел

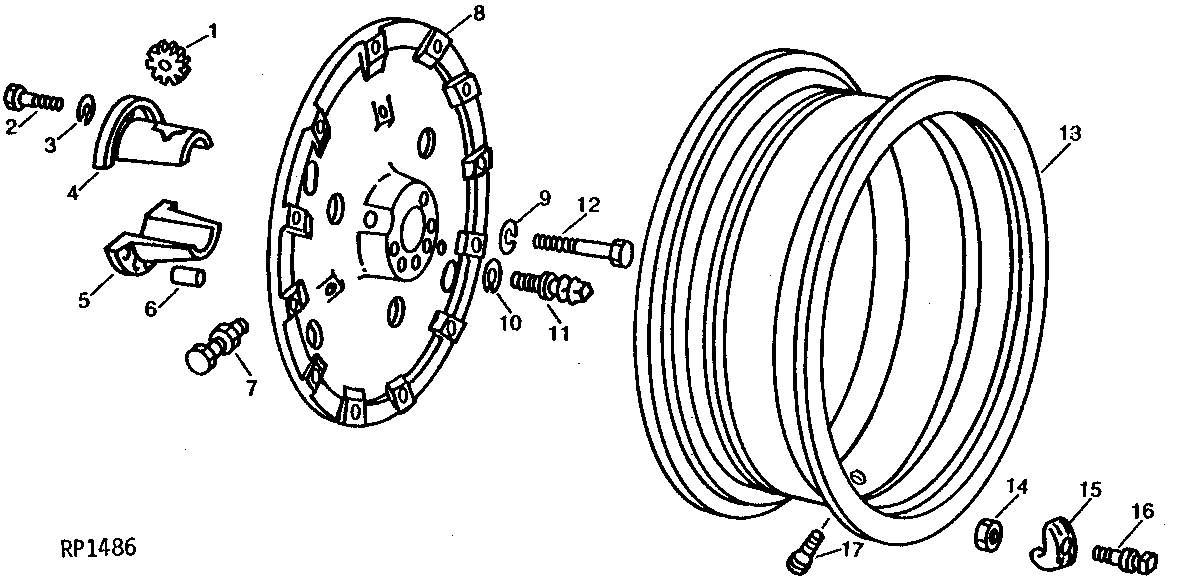

REAR WHEELS (86MM AXLE) [04I01]

REAR WHEELS (86MM AXLE) [04I01]

REAR WHEELS (86MM AXLE) [04I01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

REAR WHEELS (86MM AXLE) [04I01]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	B3014R	1	PINION	(USE WITH R43530 AND R35300)
1	A4379R	1	PINION	-
2	19H2600	3	Cap Screw	3/4" X 2-5/8"
3	12H236	3	Lock Washer	3/4"
4	R33531	1	Half Sleeve	(SUB R93955)
4	R52031	1	Half Sleeve	(USE WITH R43530 AND R35300)
5	R33532	1	HALF SLEEVE	-
5	R52032	1	HALF SLEEVE	(USE WITH R43530 AND R35300) (SUB AR83355)
6	R35335	2	Dowel Pin	(USE WITH R43530 AND R35300)
7	A4380R	1	PINION SHAFT	-
8	R48955	1	WHEEL	(16.9-34, 18.4-34 OR 20.8-34 TIRE AND RIM)
8	R43530	1	Wheel	(12.4-42 TIRE)
8	R33450	1	DISK	(SPECIAL OFFSET) (15.5-38, 16.9-38, 18.4-38 OR 20.8-23 TIRE AND RIM) (SUB R70309)
8	R48954	1	WHEEL	(13.6-38, 15.5-38, 16.9-38, 18.4-38 OR 20.8-38 TIRE AND RIM)
8	R35300	1	Wheel	(23.1-34 TIRE AND RIM)
8	R52160	1	WHEEL	(SPECIAL OFFSET) (16.9-34, 18.4-34 OR 20.8-34 TIRE AND RIM)
8	R34680	1	WHEEL	(23.1-30 TIRE AND RIM)
9	12H245	3	Lock Washer	7/8"
10	A4883R	2	Snap Ring	-
10	R35333	2	Snap Ring	(USE WITH R43530 OR R35300)
11	R35332	2	Screw	(USE WITH R43530 OR R35300)
11	R33706	2	SCREW	(SUB R58303)
12	08H4419	3	Cap Screw	7/8" X 6-1/2"
12	08H4486	3	CAP SCREW	7/8" X 7-1/2", (USE WITH R43530 OR R35300)
13	R80306	1	Rim	(18.4-38 TIRE) (SUB FOR R41012)
13	R43743	1	Rim	(12.4-42 TIRE)
13	R74851	1	RIM	(20.8-38 TIRE) (SUB FOR R43744)
13	R41846	1	RIM	(16.9-38 TIRE)
13	R31491	1	RIM	(15.5-38 TIRE)
13	R31490	1	RIM	(13.6-38 TIRE)
13	R56837	1	Rim	(23.1-34 TIRE)
13	R48146	1	RIM	(20.8-34 TIRE)
13	R31943	1	RIM	(18.4-34 TIRE)
13	R31592	1	RIM	(16.9-34 TIRE)
13	R34659	1	Rim	(23.1-30 TIRE)
14	14H800	1	Nut	5/8", (8 USED WITH R34680) (12 USED WITH R33450, R35300, R48954, R48955, OR R52160) (16 USED WITH R43530)
15	B634R	1	CLAMP	(8 USED WITH R34680) (12 USED WITH R35300)
15	A4388R	1	CLAMP	(12 USED WITH R33450, R48954, R48955 AND R52160) (16 USED WITH R43530)
16	A4064R	1	BOLT	(8 USED WITH R34680) (12 USED WITH R35300) (SUB R34801)
16	08H4694	1	BOLT	5/8" X 4", H.S., SAE 8 (12 USED WITH R33450, R48954, R48955, OR R52160) (16 USED WITH R43530)
17	AT67275	1	Tire Valve Stem	.812 DIA
17	AT25226	1	Tire Valve Stem	.625 DIA
17	R55151	1	Plug	.609 DIA, (SECOND HOLE)
