Открытый узел

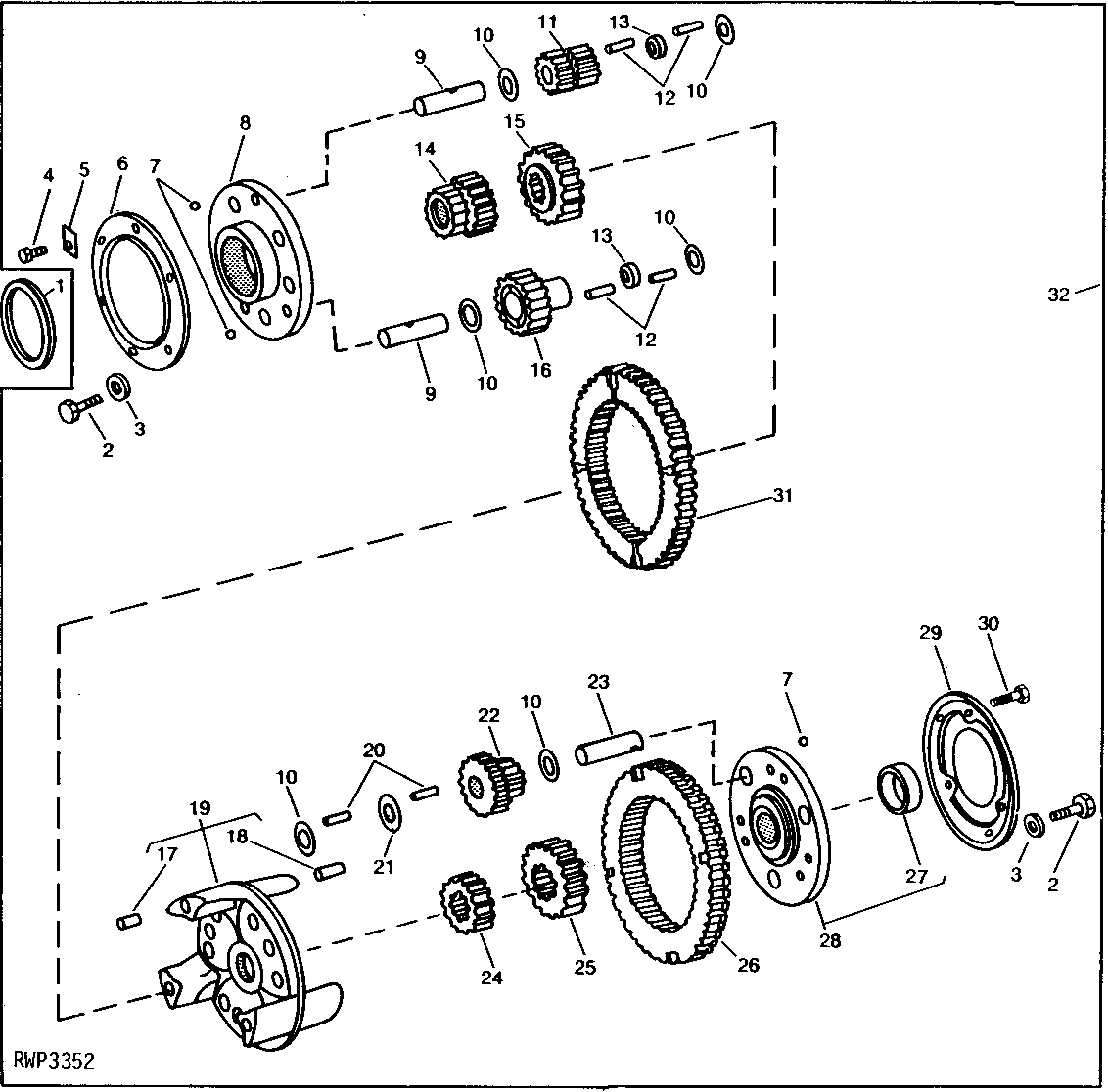

PLANETARY CARRIER ASSEMBLY (POWER SHIFT) [03E20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R76308	1	Thrust Washer	(SUB FOR R51714)
2	R65515	6	CAP SCREW	-
3	24H1286	6	Washer	9/32" X 1/2" X 1/16"
4	R51710	3	CAP SCREW	-
5	R64525	3	Thrust Washer	-
6	R33082	1	RETAINER	-
6	R65516	1	RETAINER	-
7	H871R	9	Ball	5MM (3/16")
8	R51320	1	COVER	(SUB R65458, R65516, (3) R65515 AND (3) 24H1286)
8	R65458	1	COVER	-
9	R51707	6	PINION SHAFT	(SUB R65517)
9	R65517	6	SHAFT	-
10	R66197	18	Thrust Washer	(SUB FOR R43216)
11	R51061	3	PLANET PINION	-
12	R33058	372	NEEDLE ROLLER	-
13	R51708	6	SPACER	-
14	R51063	1	PINION	(SUB RE16255 AND RE19049)
15	AR55156	1	PINION	(MARKED R51060)
16	R51062	3	PINION	-
17	R51709	3	BUSHING	-
18	R26650	3	Dowel Pin	-
19	AR82924	1	PLANET PINION CARRIER	(MARKED R65378) (SUB RE12105, MARKED R77932)
19	AR61213	1	PLANET PINION CARRIER	(MARKED R51318) (SUB AR69607)
19	AR69607	1	PLANET PINION CARRIER	(MARKED R58417) (SUB RE12105)
20	R46307	144	PIN	(SUB (144) R60755 AND (3) R60756)
20	R60755	144	Needle Roller	-
21	R51713	3	SPACER	(A) (SUB (144) R60755 AND (3) R60756)
21	R60756	3	Washer	-
22	AR63998	1	PINION	(SUB AR76155) (SET OF (3) R51057 OR R57909)
22	AR85322	1	PLANET PINION	(SUB FOR AR76155) (SET OF (3) R57909) (SUB (3) R65914)
23	R51712	3	PIN	-
23	R62710	3	PINION SHAFT	(SUB R65383)
23	R65383	3	SHAFT	-
24	RE10954	1	PLANET PINION	(SUB FOR AR58772 OR RE10953)
25	R51058	1	PINION	-
26	R51281	1	GEAR	-
27	R51711	1	BUSHING	-
28	AR61214	1	COVER	(MARKED R51319)
28	AR82925	1	COVER	(MARKED R57908) (ALSO ORDER R65382, (3) R59444 AND (3) 24H132) (SUB FOR AR69608)
28	AR82925	1	COVER	(MARKED R65384)
29	R51718	1	RETAINER	-
29	R65382	1	RETAINER	-
30	R63300	3	Self-Locking Screw	(SUB FOR R31198)
31	R57910	1	RING GEAR	-
32	AR83394	1	PLANET PINION CARRIER	(SUB FOR AR70161)
..	AR61412	1	TRANSMISSION	(SUB RE19056 OR RE240041)
..	AR83395	1	TRANSMISSION	(SUB RE19056 OR RE240041)

PLANETARY CARRIER ASSEMBLY (POWER SHIFT) [03E20]

Нет текстового описания
