Открытый узел

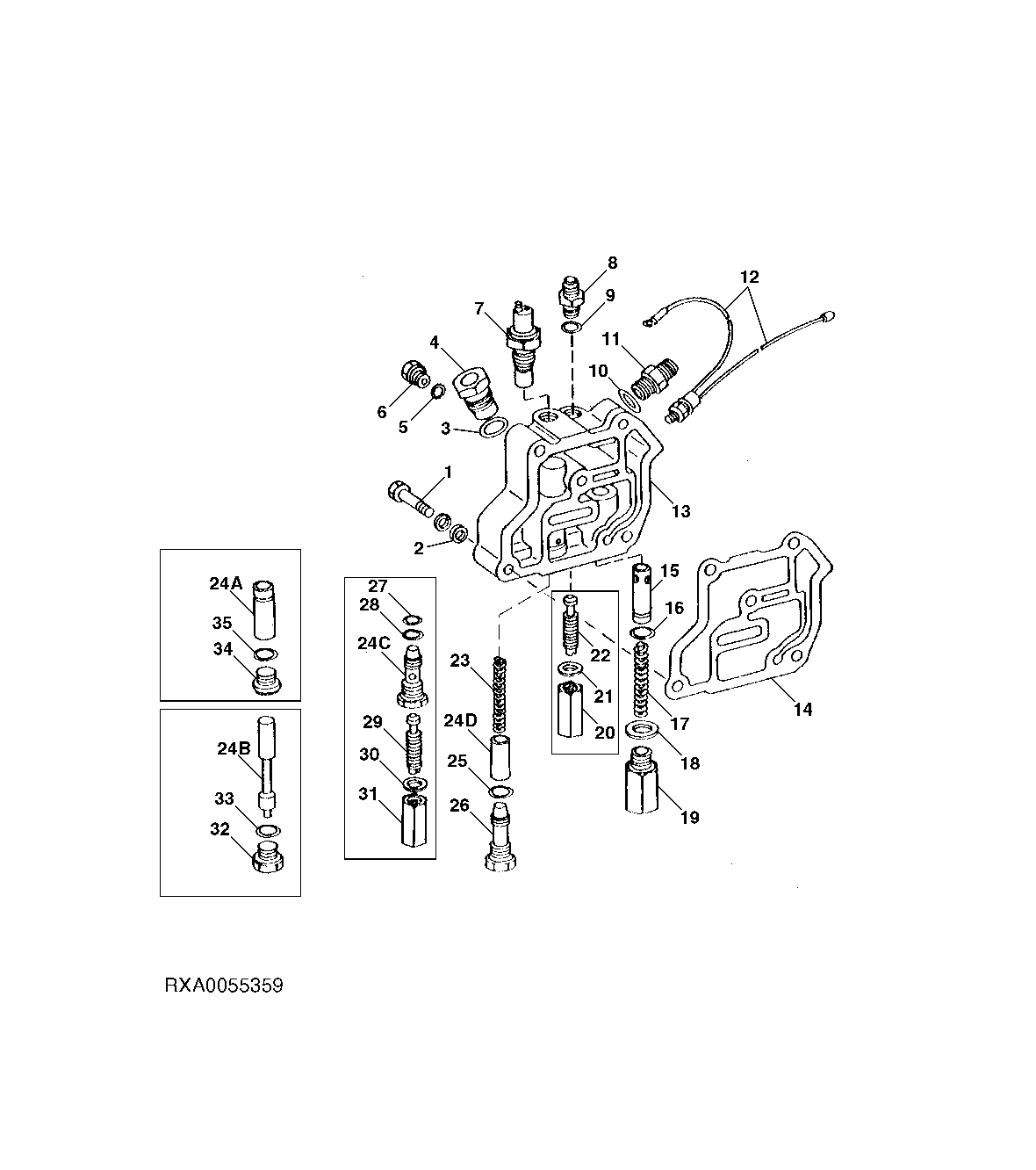

OIL FILTER RELIEF VALVE HOUSING (QUAD-RANGE AND SYNCRO-RANGE) [03E01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2055	3	CAP SCREW	7/16" X 2-1/4"
1	19H1828	1	CAP SCREW	7/16" X 4"
1	12H293	5	Lock Washer	7/16"
1	19H2500	1	CAP SCREW	7/16" X 1-3/8"
2	24H1325	5	Washer	15/32" X 59/64" X 0.065"
3	B2762R	1	O-Ring	-
4	R76494	1	FITTING	-
5	R26286	1	O-Ring	-
6	R27094	1	Drain Plug	-
7	AR61610	1	PRESSURE SWITCH	(POWER FRONT WHEEL DRIVE)
7	15H624	1	Pipe Plug	1/2", (LESS POWER FRONT WHEEL DRIVE)
8	R27237	1	Fitting	-
8	R57298	1	FITTING	(USE WITH AR72894)
9	R26375	1	O-Ring	-
10	F3171R	1	O-Ring	-
11	R27267	1	Fitting	-
12	AR61969	1	SENSOR	TRANSMISSION
13	RE238218	1	HOUSING	(SUB FOR R51460)
13	RE238218	1	HOUSING	(POWER FRONT WHEEL DRIVE) (SUB FOR R53114)
13	RE238218	1	HOUSING	(SUB FOR AR69268) (MARKED R57655 OR R57657)
13	RE238218	1	HOUSING	(SUB FOR AR72973) (MARKED R60151 OR R60152)
13	AR73905	1	HOUSING	(MARKED R60401 OR R60402)
13	15H624	1	Pipe Plug	1/2"
13	R39112	1	Fitting	-
13	R26375	1	O-Ring	-
14	R100338	1	GASKET	(SUB FOR R51461, R57656 OR R63976)
15	R54042	1	VALVE	(SUB R57560 AND R33259, THIS APPLICATION)
15	R57560	1	VALVE	-
16	R33259	1	O-Ring	-
17	R51574	1	SPRING	-
18	R1742R	1	WASHER	-
19	R51577	1	FITTING PLUG	-
20	F2847R	1	NUT	-
21	F2846R	1	WASHER	-
22	R39587	1	SET SCREW	-
23	R28914	1	SPRING	-
25	R26375	1	O-Ring	-
26	R60396	1	FITTING	-
27	R28776	1	O-Ring	(A)
28	R26375	1	O-Ring	(A)
29	R39587	1	SET SCREW	(A)
30	F2846R	1	WASHER	(A)
31	F2847R	1	NUT	(A)
32	R39112	1	Fitting	-
33	R26375	1	O-Ring	-
34	R33138	1	Fitting	-
35	R26375	1	O-Ring	-
..	AR72894	1	BREAKAWAY COUPLER	MANUAL BYPASS VALVE
24A	R57559	1	VALVE	(ALSO ORDER R33259) (SUB FOR R33162, THIS APPLICATION)
24B	R56781	1	VALVE	(SUB AR72894)
24C	R60093	1	PLUG	(A) (ORDER AR72894 OR RE238218)
24D	R60092	1	CHECK VALVE	(A)

OIL FILTER RELIEF VALVE HOUSING (QUAD-RANGE AND SYNCRO-RANGE) [03E01]
