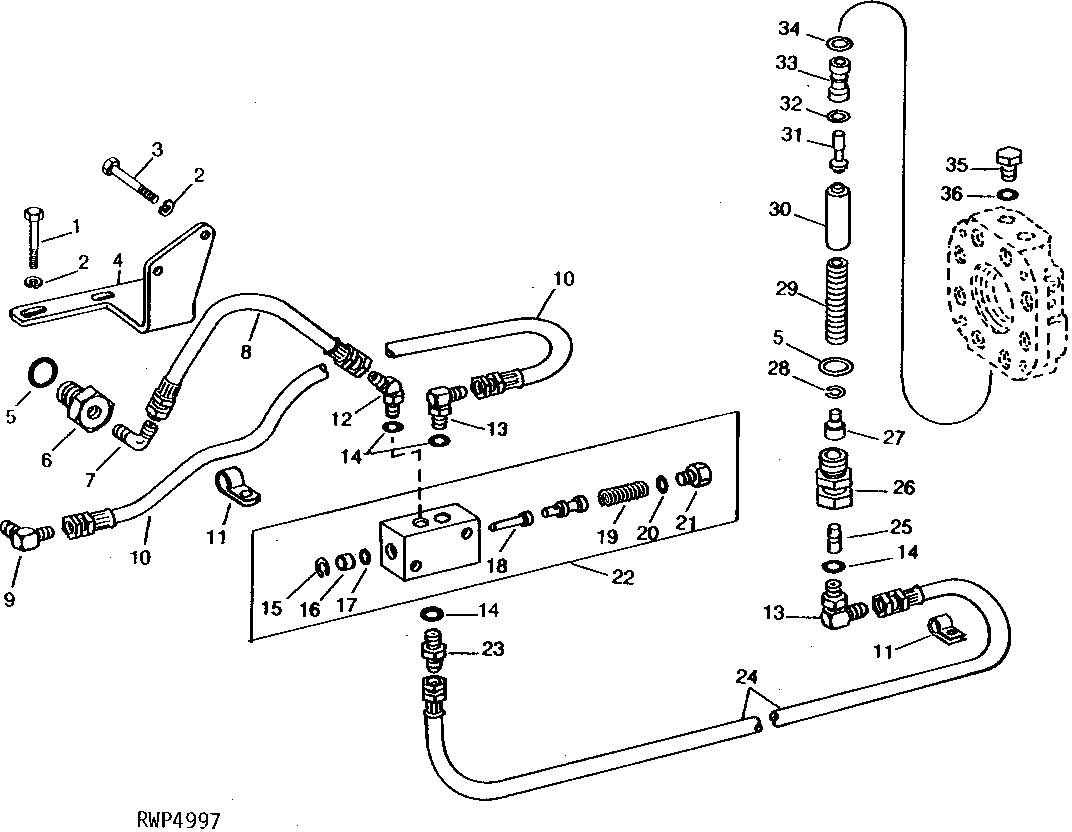

INCREASED ROCKSHAFT LIFT POWER KIT [04E07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1800	2	Cap Screw	3/8" X 1-1/2"
2	12H304	4	Lock Washer	3/8"
3	19H1732	2	Cap Screw	3/8" X 1-1/4"
4	R55473	1	BRACKET	-
5	F3171R	2	O-Ring	-
6	R56993	1	ADAPTER FITTING	-
7	AR74095	1	ELBOW FITTING	(SUB FOR T28051)
8	AR36875	1	Hose	-
9	AR26674	1	ELBOW FITTING	-
10	AR36935	1	HYDRAULIC HOSE	-
11	R34557	2	Clamp	-
12	AR35223	1	ELBOW FITTING	-
13	AR26746	2	Elbow Fitting	(SUB FOR AT32335)
14	R26287	4	O-Ring	-
15	R48523	1	Snap Ring	(SUB FOR R55463)
16	AR68190	1	SEAL	-
17	T17951	1	O-Ring	(SUB FOR R27490)
18	R55471	1	PIN	-
19	R57091	1	SPRING	-
20	R26448	1	O-Ring	-
21	R55472	1	FITTING	-
22	AR68114	1	VALVE	-
23	R27527	1	ADAPTER FITTING	-
24	AR64606	1	HYDRAULIC HOSE	-
25	R55466	1	Pin Fastener	-
26	AR64604	1	ADAPTER FITTING	(SUB AR92855, RE10712, R27166 AND R41057)
27	R55467	1	Piston	-
28	B474R	1	SNAP RING	-
29	R31781	1	Spring	-
30	R32344	1	GUIDE	(SUB R71321)
31	R65194	1	VALVE	(SUB FOR R27472 OR R70559) (SUB RE10712, R27166 AND R41057)
32	R27166	1	O-Ring	-
33	R69262	1	SLEEVE	(SUB FOR R55464 OR R65193) (SUB RE10712, R27166 AND R41057)
34	R27564	1	O-Ring	-
35	R27218	1	Fitting Plug	-
36	R26448	1	O-Ring	-
..	R44302	4	Tie Band	-

INCREASED ROCKSHAFT LIFT POWER KIT [04E07]
