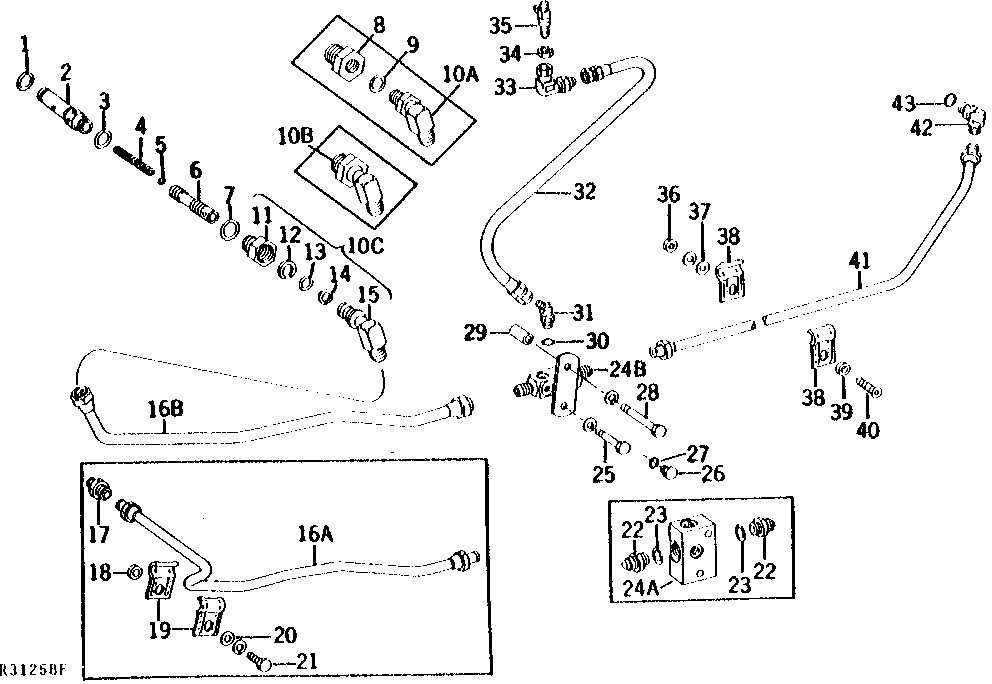

HYDRAULIC OIL PRESSURE LINES AND PRESSURE CONTROL VALVE [04C04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U15192	1	O-Ring	(SUB FOR R55023)
2	R50216	1	HOUSING	(SUB R56741, AR74194 AND U15192) (ALSO ORDER AR66346)
2	R55134	1	HOUSING	(SUB R56741, AR74194 AND U15192) (ALSO ORDER AR66346 ON TRACTORS PRIOR TO SERIAL NO. 008503)
2	R56741	1	CONTROL VALVE	-
3	U15192	1	O-Ring	-
4	R40072	1	SPRING	-
5	24H1283	1	Washer	7/32" X 1/2" X 0.049"
6	AR63906	1	VALVE	-
7	R29936	1	O-Ring	-
8	R55133	1	PLUG	(SUB R56741, AR74194 AND U15192)
9	R26906	1	O-Ring	-
11	R61259	1	ADAPTER FITTING	-
12	A4275R	1	SNAP RING	-
13	R21722	1	O-Ring	-
14	R26546	1	BACK-UP RING	-
15	AR74195	1	ELBOW FITTING	-
17	R27270	1	Fitting	-
18	28H1517	1	Washer	0.493" X 0.675" X 1/4"
19	R47576	2	CLAMP	-
20	24M7096	1	Washer	10.500 X 18 X 1.600 MM
21	12H304	1	Lock Washer	3/8"
21	19H2552	1	CAP SCREW	3/8" X 1-1/8"
22	R27270	2	Fitting	-
23	R26906	2	O-Ring	-
25	19H1726	1	Cap Screw	(A) (B) 3/8" X 2-1/4"
25	12H304	1	Lock Washer	(A) (B) 3/8"
26	R27216	1	DRAIN PLUG	(SUB FOR R31631)
27	R26287	1	O-Ring	-
28	12H304	1	Lock Washer	(C) 3/8"
28	19H1854	1	Cap Screw	(C) 3/8" X 3-3/4"
29	28H3380	1	Spacer	(C)
29	28H1496	1	Spacer	(A) (B)
29	28H1535	1	Spacer	(C)
30	R26448	1	O-Ring	-
31	AT38033	1	Elbow Fitting	(LESS SOUND-GARD BODY) (SUB FOR AR26722)
31	AT35121	1	Elbow Fitting	(SOUND-GARD BODY) (SUB FOR AR26725)
32	AR86055	1	Hydraulic Hose	(LESS SOUND-GARD BODY) (ALSO ORDER AR67586) (SUB FOR AR63320)
33	AR67586	1	ELBOW FITTING	-
34	R26572	1	Nut	-
35	AR64094	1	TEE FITTING	(SUB FOR AR56773)
36	14H1076	1	Nut	3/8"
36	12H304	1	Lock Washer	3/8"
37	24M7096	1	Washer	10.500 X 18 X 1.600 MM
38	R47576	2	CLAMP	-
39	28H1878	1	SPACER	3/8" X 7/16"
40	R52028	1	CAP SCREW	-
41	AR59005	1	OIL LINE	-
42	AT32338	1	Fitting	(SUB FOR AR26828)
42	AT49331	1	Elbow Fitting	(FOR REPLACEMENT PUMP)
43	R26906	1	O-Ring	-
..	AR21969	1	Plug	PLUG ASSORTMENT
10A	AR26724	1	Elbow Fitting	-
10B	AR67679	1	ELBOW FITTING	(SUB AR74194)
10C	AR74194	1	ELBOW FITTING	-
16A	AR54652	1	OIL LINE	(SUB AR66346, AR26724 AND R26906)
16B	AR66346	1	OIL LINE	-
16B	AR75978	1	OIL LINE	-
24A	AR72834	1	FITTING	(ALSO ORDER 28H1496) (SUB FOR R53181)
24B	AR72834	1	FITTING	-
