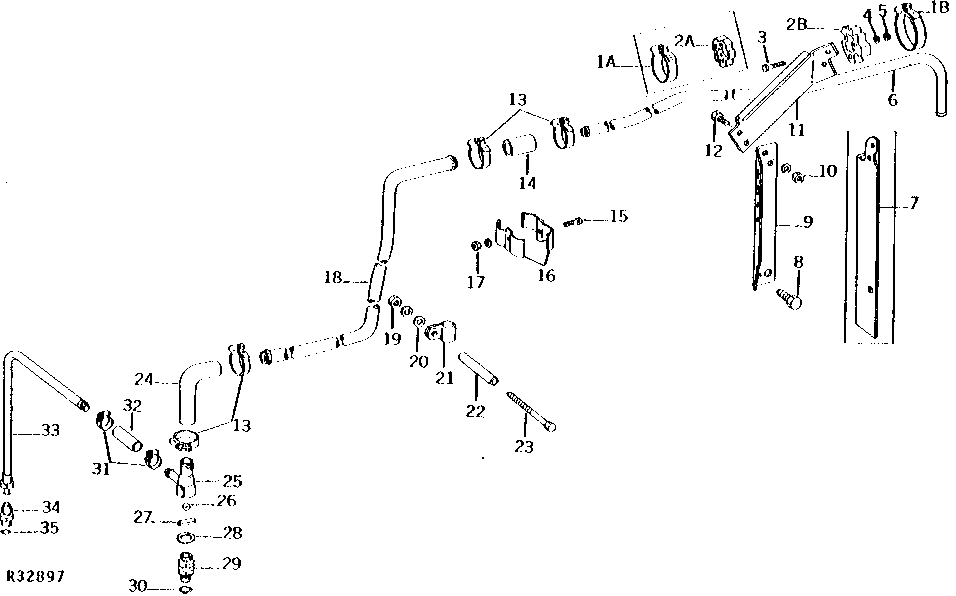

HYDRAULIC OIL COOLER RETURN LINES (POWER SHIFT) [04C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	19H1791	2	Cap Screw	1/4" X 1-1/4"
4	24H1287	2	Washer	9/32" X 5/8" X 0.065"
5	14H786	2	Nut	1/4"
6	R53760	1	FUEL LINE	(NLA)
6	R59980	1	TUBE	(NLA)
7	R52181	1	SUPPORT	-
8	R45692	1	Cap Screw	-
9	R59979	1	SUPPORT	-
10	14H1076	2	Nut	3/8"
10	12H304	2	Lock Washer	3/8"
11	R59978	1	SUPPORT	-
12	19H2284	2	Cap Screw	3/8" X 7/8"
13	TY22467	4	Clamp	(SUB FOR AR21839)
14	-	1	Part 18	57 MM (2-1/4") (MAKE FROM T61939) (SUB FOR T25469, T35695 OR T35690)
15	19H1849	1	Cap Screw	5/16" X 1-1/4"
16	F1682R	2	HALF CLAMP	(SOUND-GARD BODY)
17	14H785	1	Nut	5/16"
17	12H303	1	Lock Washer	5/16"
18	R52731	1	OIL LINE	-
19	14H1076	1	Nut	3/8"
19	12H304	1	Lock Washer	3/8"
20	24M7096	1	Washer	10.500 X 18 X 1.600 MM
21	T24959	1	Clamp	-
22	28H1622	1	Bushing	3/8" X 3-1/4"
23	19H1925	1	Cap Screw	3/8" X 4-1/4"
24	T22958	1	HOSE	(SUB FOR T40167) (SUB L35843)
25	R53259	1	TEE FITTING	(SUB R62708, AR77284, R495R, R51571 AND 34H247)
25	R62708	1	TEE FITTING	-
26	R51571	1	Ball	-
27	34H184	1	Spring Pin	1/8" X 1-1/8"
27	34H247	1	Spring Pin	1/8" X 3/4"
28	R53262	1	WASHER	(SUB R495R, AR77284, R62708, R51571 AND 34H247)
28	R495R	1	O-Ring	-
29	AR59285	1	THREADED NIPPLE	(SUB AR77284, R62708, R495R, R51571 AND 34H247)
29	AR77284	1	THREADED NIPPLE	-
30	F3171R	1	O-Ring	-
31	TY22465	2	Hose Clamp	(SUB FOR AR21837)
32	-	1	Part 42	635 MM (2-1/2") (MAKE FROM R20922)
33	AR59286	1	OIL LINE	-
34	R27270	1	Fitting	-
35	R26906	1	O-Ring	-
..	AR21969	1	Plug	PLUG ASSORTMENT
1A	TY22470	3	Clamp	(SUB FOR AR21840)
1B	AR21999	4	Hose Clamp	-
2A	R50711	3	SPACER	-
2B	R56672	4	SPACER	-

HYDRAULIC OIL COOLER RETURN LINES (POWER SHIFT) [04C13]
