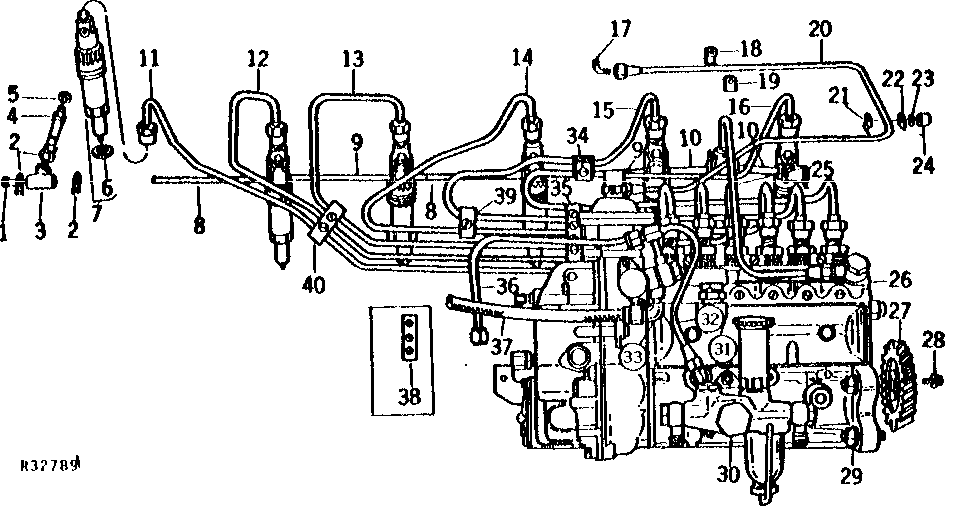

FUEL INJECTION PUMP, NOZZLES, AND FUEL LINES (ENGINE SERIAL NO. 445570- ) [01E18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	16H644	1	RIVET	1/4" X 1/2"
2	R34766	21	Clamp	-
3	T23425	7	BOOT	-
4	R59293	6	FITTING	(SUB (6) R87082 AND (6) R77551)
4	R87082	6	Fitting	(SUB FOR R83558) (ALSO ORDER R77551)
5	R59294	6	SEALING RING	(USE WITH R59293 OR R83558)
5	R77551	6	O-Ring	-
6	R64840	6	Washer	(SUB FOR R59104)
7	-	6	Part 9	(SUB AR74665 OR SE500103, THIS APPLICATION) (USE WITH CYLINDER HEAD MARKED R59876, R58673, R67906, R61521 OR R76384
7	AR74665	6	NOZZLE HOLDER	-
7	SE500103	6	INJECTION NOZZLE	(A) (PKG. OF 6)
7	SE501112	1	Injection Nozzle Reman	(A) (PKG OF 1)
8	R60877	2	LINE	-
9	R60876	2	FUEL LINE	-
10	R62245	2	FUEL LINE	-
11	AR96862	1	FUEL LINE	NO. 6, (SUB FOR AR69451)
12	AR96861	1	FUEL LINE	NO. 5, (SUB FOR AR69450)
13	AR96860	1	FUEL LINE	NO. 4, (SUB FOR AR69449)
14	AR96859	1	FUEL LINE	NO. 3, (SUB FOR AR69448)
15	AR96858	1	FUEL LINE	NO. 2, (SUB FOR AR69447)
16	AR96857	1	FUEL LINE	NO. 1, (SUB FOR AR69446)
17	R57641	1	ELBOW FITTING	-
18	R27528	1	CLAMP	-
19	R27256	1	STRAP	-
20	AR77448	1	FUEL LINE	FUEL CONTROL
20	T18015	1	WASHER	-
20	T18012	1	Elbow Fitting	-
21	R27528	1	CLAMP	-
22	R31655	1	STRAP	-
23	24H1305	1	Washer	13/32" X 13/16" X 0.065"
24	28H1525	1	BUSHING	-
25	AR76502	1	FUEL LINE	-
26	AR73517	1	FUEL INJECTION PUMP	(NLA)
27	R68274	1	GEAR	(SUB FOR AR55487, AR78345 OR AR88905, APPL)
28	R63845	3	Washer	-
28	AR59115	3	SELF-LOCKING SCREW	(SUB 19H3336 AND R63845)
28	19H3336	3	Screw	3/8" X 7/8"
29	M72490	4	Washer	(SUB FOR R42729)
29	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662)
29	R55396	4	STUD	-
30	AR63831	1	FUEL PUMP	-
31	R57641	1	ELBOW FITTING	-
32	AR76158	1	OIL LINE	-
33	U45538	1	ELBOW FITTING	-
34	R59305	1	Strap	-
34	12H246	1	LOCK WASHER	0.190"
34	21H1463	1	Cap Screw	0.190" X 7/8"
34	R61144	1	Strap	-
34	R58186	2	Clamp	-
35	R59302	2	CLAMP	-
35	R61147	1	RETAINER	-
35	R59304	1	REINFORCEMENT	-
35	21H1463	5	Cap Screw	0.190" X 7/8"
35	12H246	5	LOCK WASHER	0.190"
36	AR101137	1	OIL LINE	(SUB FOR AR76488 OR AR89353)
36	R51936	1	Sealing Washer	-
37	AR76326	1	HOSE	(SUB AR85331)
37	AR85333	1	FUEL LINE	(ALSO ORDER AR85332 AND R50201)
38	R59299	2	CLAMP	-
38	R61146	1	STRAP	-
38	R59300	1	STRAP	-
38	21H1463	3	Cap Screw	0.190" X 7/8"
38	12H246	3	LOCK WASHER	0.190"
39	R61144	1	Strap	-
39	12H246	1	LOCK WASHER	0.190"
39	21H1463	1	Cap Screw	0.190" X 7/8"
39	R59305	1	Strap	-
39	R58186	2	Clamp	-
40	R59297	2	Half Clamp	-
40	R61145	1	Strap	-
40	R59298	1	Strap	-
40	21H1463	2	Cap Screw	0.190" X 7/8"
40	12H246	2	LOCK WASHER	0.190"

FUEL INJECTION PUMP, NOZZLES, AND FUEL LINES (ENGINE SERIAL NO. 445570- ) [01E18]
