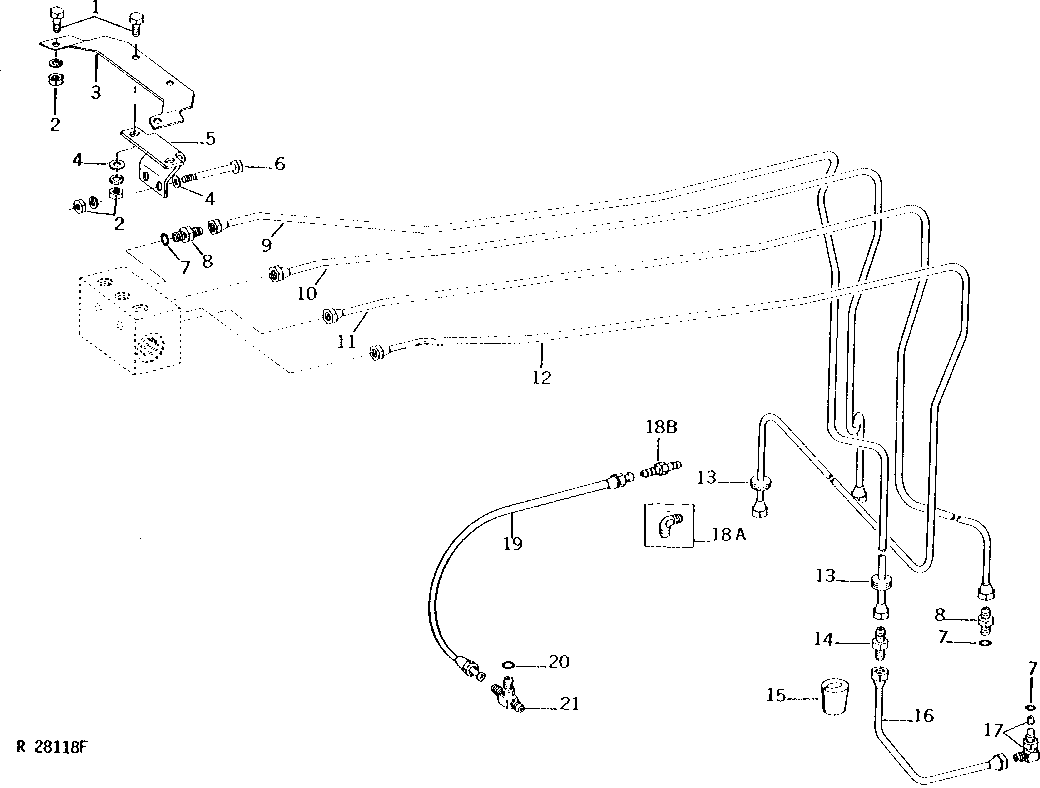

FRONT STEERING UPPER AND LOWER OIL LINES AND BRACKETS (TRACTOR SERIAL NO. 027635- ) [03J13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2284	2	Cap Screw	3/8" X 7/8"
1	19H2284	4	Cap Screw	(A) 3/8" X 7/8"
2	14H1076	6	Nut	(A) 3/8"
2	14H1076	4	Nut	3/8"
2	12H304	6	Lock Washer	(A) 3/8"
2	12H304	4	Lock Washer	3/8"
3	R52076	1	BRACKET	(A)
4	24H1305	4	Washer	13/32" X 13/16" X 0.065"
5	R56636	1	SUPPORT	-
6	19H2023	2	CAP SCREW	3/8" X 3-1/4"
7	R26448	8	O-Ring	-
8	R27212	6	Fitting	-
9	AR67578	1	OIL LINE	L.H. UPPER
10	AR67577	1	OIL LINE	-
11	AR67576	1	OIL LINE	-
12	AR67579	1	OIL LINE	R.H. UPPER
13	R41440	2	Grommet	-
14	R27095	2	Fitting	-
15	R56664	2	GROMMET	-
16	AR67571	2	OIL LINE	-
17	AR67562	2	Elbow Fitting	-
19	AR56065	1	Oil Line	-
20	R26287	1	O-Ring	-
21	AR56615	1	TEE FITTING	-
..	AR21969	1	Plug	PLUG ASSORTMENT
18A	AR74095	1	ELBOW FITTING	(SUB FOR T28051)
18B	R39832	1	Adapter Fitting	(SUB FOR AR74095, THIS APPLICATION)

FRONT STEERING UPPER AND LOWER OIL LINES AND BRACKETS (TRACTOR SERIAL NO. 027635- ) [03J13]
