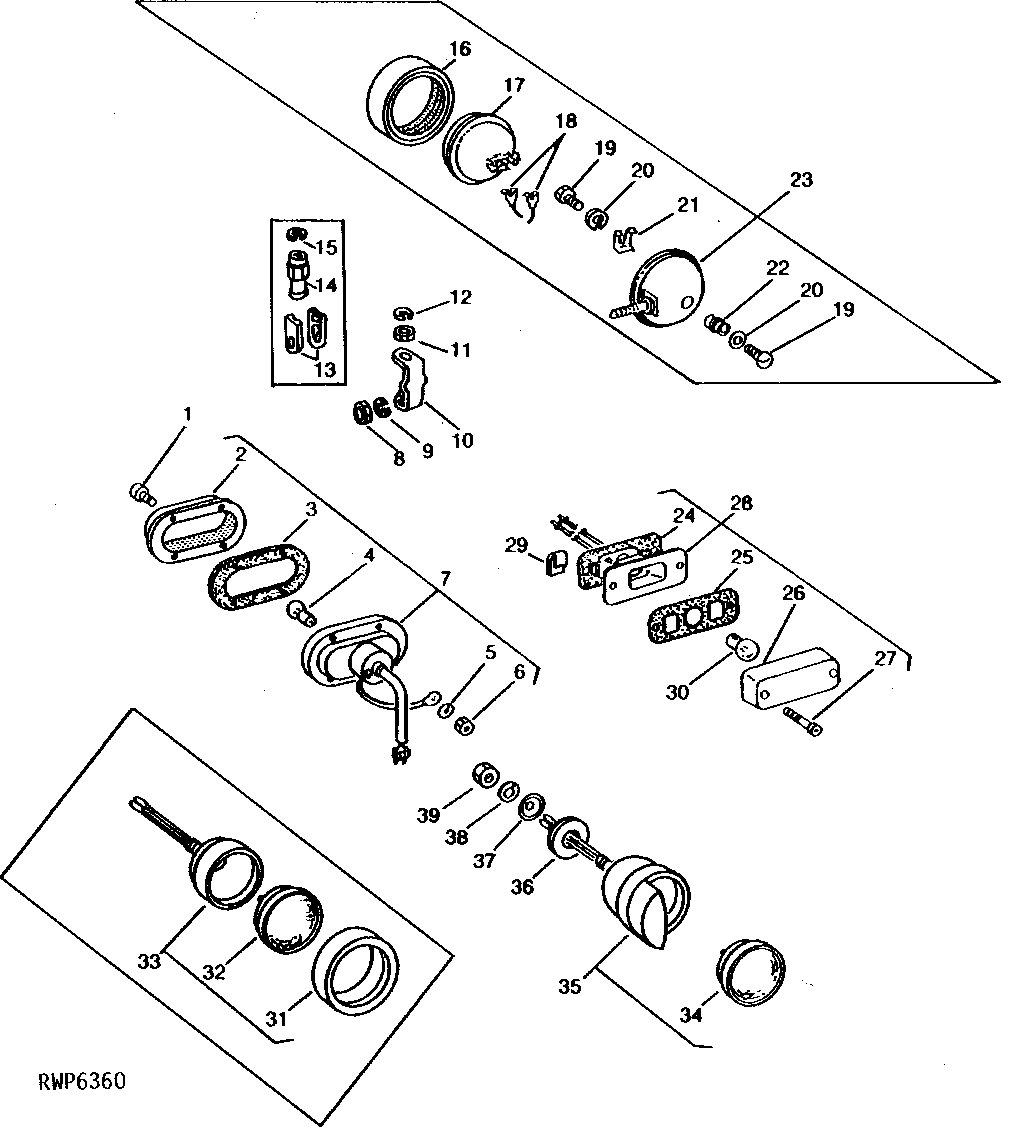

FRONT AND REAR LAMPS AND REAR LAMP BRACKETS (ROLL-GARD) [02D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R55933	2	Screw	-
2	R45936	2	Lens	-
3	R45937	2	Gasket	-
4	AR48041	2	Bulb	(12-VOLT)
5	12M7084	1	Lock Washer	0.169"
6	14H605	1	Nut	0.164"
7	AR78825	2	Tail Lamp	(SUB FOR AR45099)
8	14H1040	4	Nut	1/2"
9	12H301	4	Lock Washer	1/2"
10	R59160	2	BRACKET	-
11	14H1040	2	Nut	1/2"
12	12H301	2	Lock Washer	1/2"
13	R27460	4	ELEC. CONNECTOR ACCESSORY	-
14	R54778	2	NUT	(ALSO ORDER R32101) (SUB FOR R50810)
15	12H301	2	Lock Washer	1/2"
16	R30182	2	BEZEL	(HOBBS)
16	R31250	2	BEZEL	(GUIDE)
17	AR21059	2	HEADLIGHT	(12-VOLT)
17	RE285628	2	FLOODLAMP	LED LAMP, FLOOD PATTERN.
17	RE285629	2	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
18	-	2	Part 21	165 MM (6-1/2") (MAKE FROM R66319 AND (2) R32016) SEAL UNIT TO TERMINAL PLATE
19	21H1293	4	SCREW	0.164" X 5/16"
20	12M7084	4	Lock Washer	0.169"
21	A2899R	2	SPRING	-
22	R30181	2	PLATE	(HOBBS)
22	AA3495R	2	SUPPORT	(GUIDE)
23	AR35782	2	FLOODLAMP	(12-VOLT)
24	R54782	4	Gasket	-
25	R61179	4	Gasket	-
26	R54779	4	Lens	-
27	R54781	8	Screw	-
28	AR60250	4	Lamp	-
29	R99350	8	Nut	(SUB FOR R53528, THIS APPLICATION)
30	AD2062R	4	Bulb	(12-16 VOLT)
31	R30182	2	BEZEL	(HOBBS)
31	R31250	2	BEZEL	(GUIDE)
32	RE25125	2	Dual Beam Headlamp	(HALOGEN) (SUB FOR AR48723)
33	AR48721	2	HEADLIGHT	(SUB RE25126 R.H. OR RE25127 L.H., THIS APPLICATION)
34	RE25125	2	Dual Beam Headlamp	-
35	RE25126	1	Dual Beam Headlamp	R.H.
35	RE25127	1	Dual Beam Headlamp	L.H.
36	R48663	2	WASHER	-
37	F2935R	2	WASHER	-
38	12H301	2	Lock Washer	1/2"
39	14H1040	2	Nut	1/2"

FRONT AND REAR LAMPS AND REAR LAMP BRACKETS (ROLL-GARD) [02D20]
