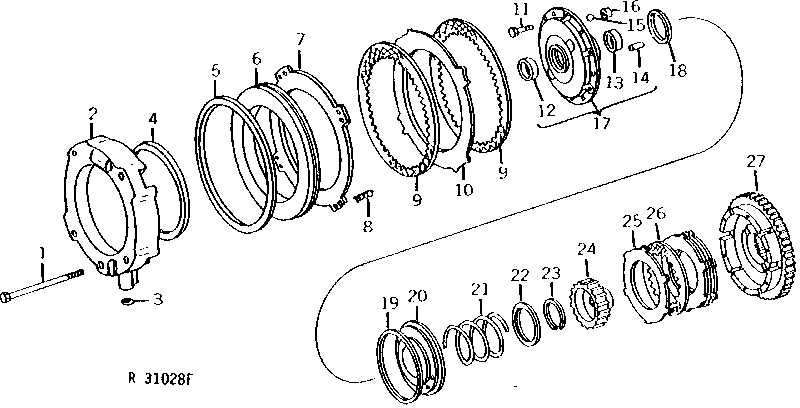

FOURTH PLANETARY BRAKE AND CLUTCH PACK (POWER SHIFT) [03E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3394	5	Cap Screw	3/8" X 8"
2	R51323	1	HOUSING	-
3	R459R	2	O-Ring	-
4	R65479	1	PACKING	(SUB FOR R44816)
5	R65480	1	PACKING	(SUB FOR R44817)
6	R81494	1	Piston	(SUB FOR R33261 OR R65592)
7	R48235	1	PLATE	-
8	R33054	8	SPRING	(SUB R74852)
9	R227405	2	BRAKE DISK	(SUB FOR R33053)
9	RE234305	2	Disk With Inner Spline	(SUB FOR AR69610 OR RE17162)
10	R48236	1	Plate	-
11	R41168	6	Cap Screw	-
12	R78663	1	Bushing	(SUB FOR R51329)
13	R78662	1	BUSHING	(SUB FOR R43050)
14	R30587	1	Dowel Pin	-
15	400R	1	Ball	6MM (1/4")
16	R40426	1	ROUND RETAINER	-
17	RE13619	1	HOUSING	(MARKED R51324) (SUB FOR AR55465 OR AR89867)
18	R33246	1	Seal	-
19	R41166	1	SEAL	-
20	R49499	1	PISTON	-
20	R60358	1	PISTON	-
21	R66612	1	SPRING	(SUB FOR R31359)
22	R33114	1	ROUND RETAINER	-
23	R33247	1	Snap Ring	-
24	AR104433	1	Hub	(SUB FOR R51327 OR AR72340)
25	R46391	5	CLUTCH PLATE	-
25	R57345	3	Clutch Plate	WAVY
25	R77671	1	Plate	FLAT
25	R31373	4	CLUTCH PLATE	(SUB R77671 AND (3) R57345, THIS APPLICATION)
26	RE234307	5	CLUTCH DISK	(SUB FOR RE27995, R31404 OR RE23000)
26	RE239058	4	Disk With Inner Spline	(SUB FOR AR69611 OR AR94516)
27	R51325	1	DRUM	(SUB RE20580)
..	AR61412	1	TRANSMISSION	(SUB RE19056 OR RE240041)
..	AR83395	1	TRANSMISSION	(SUB RE19056 OR RE240041)

FOURTH PLANETARY BRAKE AND CLUTCH PACK (POWER SHIFT) [03E16]

Нет текстового описания
