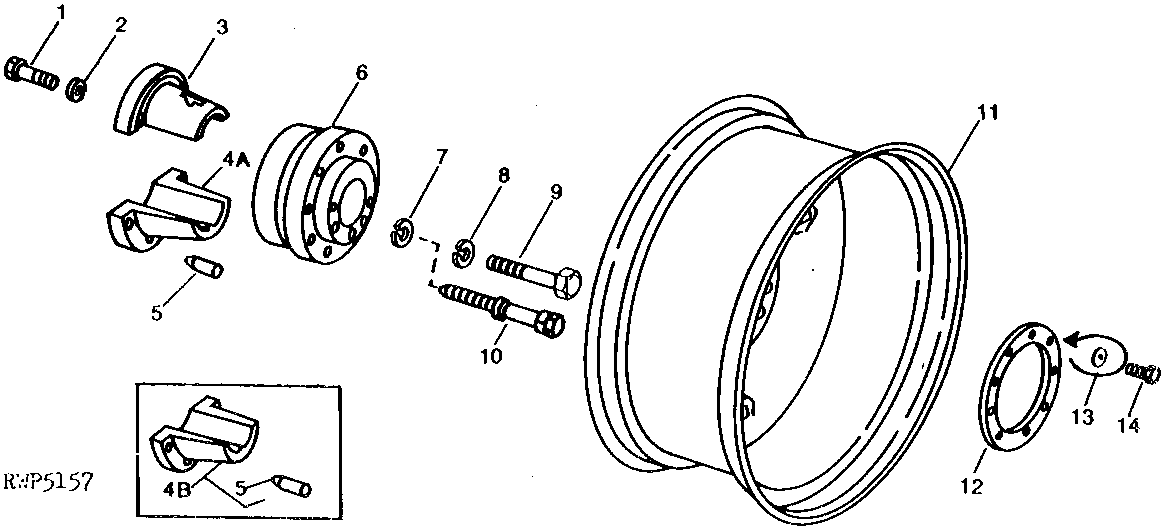

DUAL REAR WHEELS (ROW-CROP) (92 MM AXLE) [04I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1707	3	CAP SCREW	(B) 3/4" X 2-3/4"
1	19H2600	3	Cap Screw	(A) 3/4" X 2-5/8"
2	12H236	3	Lock Washer	3/4"
3	R57928	1	Half Sleeve	(A) (SUB R93959)
3	R35302	1	HUB	(B)
5	R35335	2	Dowel Pin	(B)
6	R57969	1	Hub	(A)
6	R54160	1	Hub	(B)
7	A4883R	2	Snap Ring	(A)
7	R35333	2	Snap Ring	(B)
8	12H245	3	Lock Washer	(B) 7/8"
9	08H4486	3	CAP SCREW	(B) 7/8" X 7-1/2"
9	R58302	3	Screw	(A)
10	R58303	2	Cap Screw	(A)
10	R35332	2	Screw	(B)
11	JD3224	1	Wheel	(18.4-34)
11	JD3226	1	Wheel	(20.8-34)
11	JD3222	1	WHEEL	(15.5-38)
11	JD3223	1	WHEEL	(16.9-38)
11	RE50908	1	Wheel	(B) (18.4-38) (SUB FOR JD3230 OR AR89140) (SUB RE214647)
11	AR89141	1	WHEEL	(20.8-38) (SUB FOR JD3231) (SUB RE51962)
11	JD3225	1	WHEEL	(A) (18.4-38)
12	R54983	1	WHEEL RING	(A)
13	R52006	10	Washer	(B)
14	JD27	9	Screw	(A) (USE WITH JD3222)
14	19H2672	9	Cap Screw	(A) 5/8" X 2"
14	19H2587	10	CAP SCREW	(B) 7/8" X 1-3/4"
4A	R57927	1	HALF SLEEVE	(A)
4B	AR83354	1	SLEEVE	(B) (SUB FOR R35303)

DUAL REAR WHEELS (ROW-CROP) (92 MM AXLE) [04I09]
