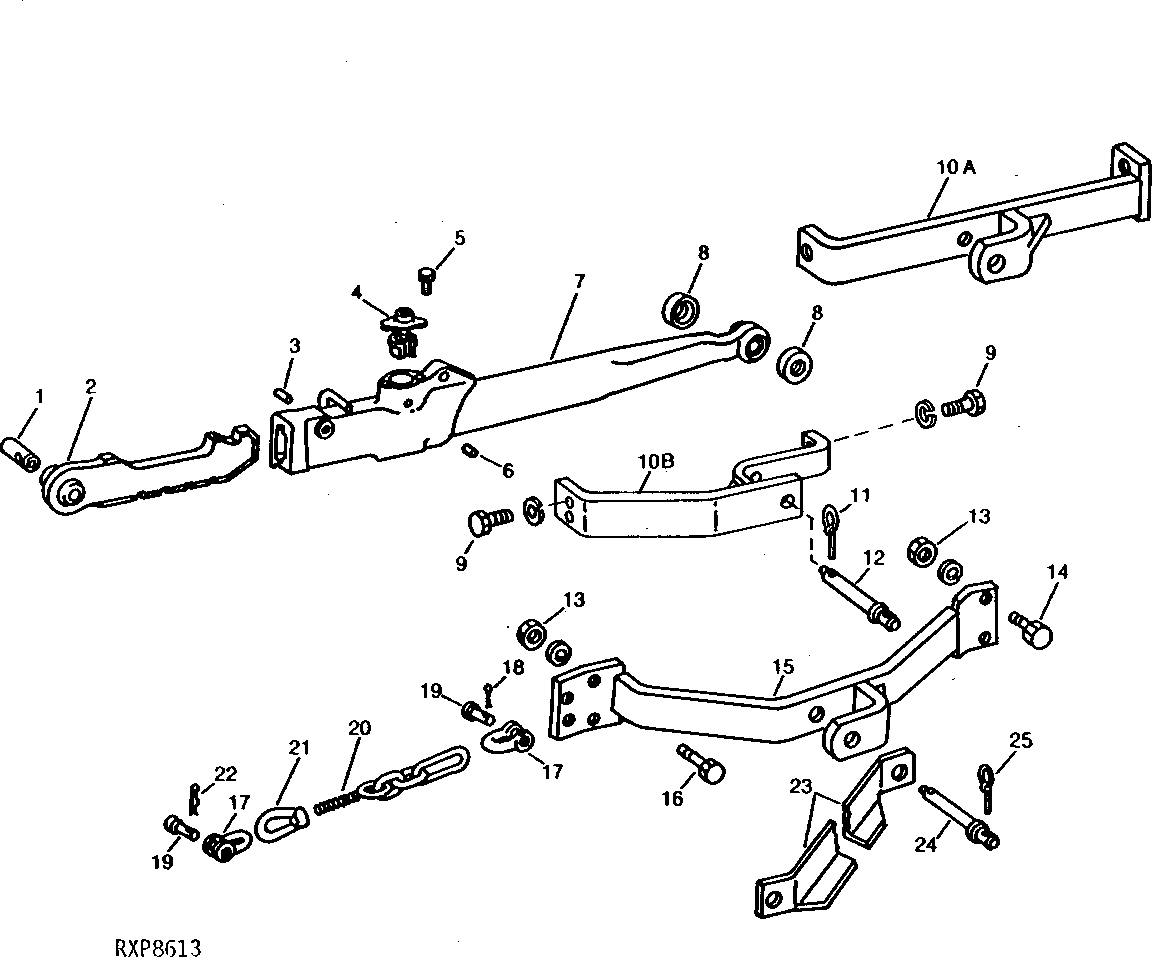

DRAFT LINKS AND SUPPORTS (HI-CROP) [04E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66433	2	Bushing	(LONG, CATEGORY I) (SUB FOR F2685R)
1	R66432	2	Bushing	(SHORT, CATEGORY I) (SUB FOR F2684R)
2	AR27646	1	DRAFT LINK END	L.H. (MARKED R28256)
2	AR27645	1	DRAFT LINK END	R.H. (MARKED R28255)
3	34H371	2	Spring Pin	1/2" X 2"
4	AR30288	2	LOCK	(SUB AR90082)
4	AR69317	2	LATCH	(SUB AR90082)
4	AR90082	1	LOCK	-
5	19H1227	4	Cap Screw	1/4" X 1/2"
5	12H302	4	Lock Washer	1/4"
6	B2641R	2	DOWEL PIN	-
7	AR56017	1	LINK BODY	L.H. (SUB AR69313 AND AR69317)
7	AR69313	1	Link Body	L.H.
7	AR56018	1	LINK BODY	R.H.
7	AR69314	1	Link Body	R.H.
8	R26608	4	Washer	-
9	19H2589	6	Cap Screw	3/4" X 1-7/8"
9	12H236	6	Lock Washer	3/4"
10	AR84855	2	Support	(WITH HITCH FOR WIDE CLEARANCE IMPLEMENTS) (SUB FOR AR56015)
11	M115827	2	Pin	(SUB FOR AR62151)
12	R26609	2	PIN	-
13	14H794	8	Nut	3/4"
13	12H236	8	Lock Washer	3/4"
14	19H1782	4	Cap Screw	3/4" X 2-1/4"
15	AR56019	2	SUPPORT	(WITH HITCH FOR MODIFIED CATEGORY I OR CATEGORY II IMPLEMENTS)
16	19H1715	4	Cap Screw	3/4" X 3"
17	31603	4	CLEVIS	(NLA)
18	11M7084	2	Cotter Pin	5 X 25 MM
19	RV695A	4	PIN FASTENER	(SUB FOR DA4560A)
20	AR56021	2	LINK CHAIN	-
21	R21342	2	NUT	-
22	A3581R	2	Spring Locking Pin	-
23	R51776	2	BRACE	-
24	R28271	2	PIN	-
25	M115827	2	Pin	(SUB FOR AR62151)
..	AF3147R	1	BAR	IMPLEMENT HITCH (NOT ILLUSTRATED)
