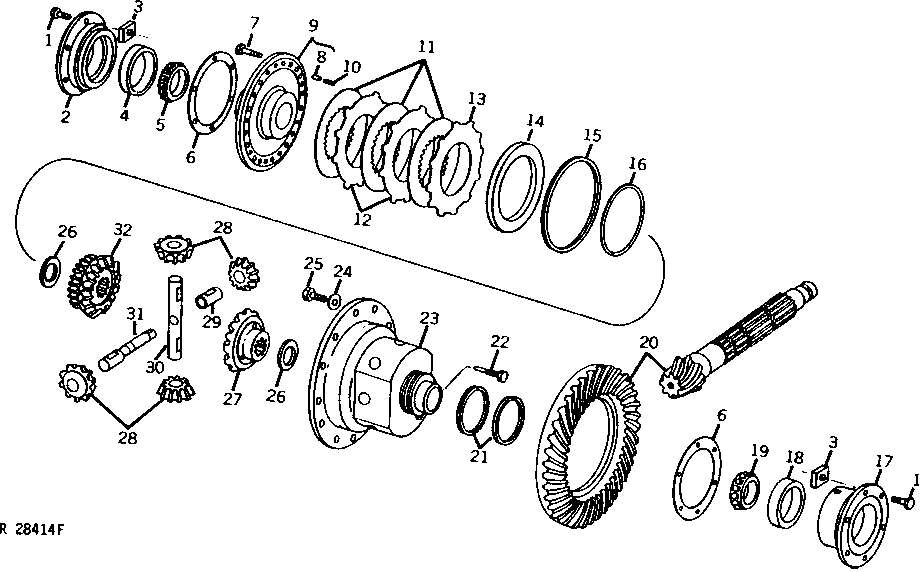

DIFFERENTIAL (DIFFERENTIAL LOCK) (QUAD-RANGE AND SYNCRO-RANGE) (FOUR-PINION) [03G13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R46360	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD8290	1	Bearing Cup	-
5	JD9019	1	BEARING CONE	-
6	R46323	1	Shim	0.08MM (.003")
6	R46324	1	Shim	0.13MM (.005")
6	R46325	1	Shim	0.25MM (.010")
7	R40236	12	Cap Screw	-
8	34H311	3	Spring Pin	1/4" X 7/8"
9	AR89837	1	COVER	(MARKED R56950 OR R68939) (SUB FOR AR48645)
10	R34863	3	SPRING	-
11	RE29428	3	DISK	(SUB FOR AR70154) (SUB RE53823, R34857 AND (2) R34858)
12	R34858	2	Clutch Plate	-
13	R34857	1	Clutch Plate	-
14	R34855	1	PISTON	-
15	R41017	1	WASHER	-
16	R44328	1	WASHER	-
17	R46448	1	BEARING HOUSING W/O BEARING	-
18	JD8259	1	Bearing Cup	-
19	JD8954	1	Bearing Cone	-
20	AR63369	1	BEVEL GEAR DRIVE	(MARKED R33062 AND R50533) (SUB AR94183, R71558 AND (2) R63303) (MATCHED SET)
20	AR94183	1	BEVEL GEAR DRIVE	(MARKED R33062 AND R71557) (MATCHED SET)
21	R46326	2	Ring	-
22	R70236	1	CAP SCREW	-
23	AR79676	1	HOUSING	(MARKED R64102) (SUB AR101618)
24	R47172	10	Washer	-
25	R41048	12	CAP SCREW	-
26	R72587	1	THRUST WASHER	(SUB R77145) (SUB FOR R53202 OR R65741)
27	R63477	1	Bevel Gear	-
28	R42444	4	PINION	-
29	R64103	1	BUSHING	-
30	R64104	1	SHAFT	-
31	R64105	1	SHAFT	-
32	R66715	1	Bevel Gear	(SUB FOR R54180)
..	AR91054	1	KIT	(SUB AR101618)
..	AR48800	1	BEARING HOUSING W/O BEARING	(INCLUDES R46448 AND JD8259)

DIFFERENTIAL (DIFFERENTIAL LOCK) (QUAD-RANGE AND SYNCRO-RANGE) (FOUR-PINION) [03G13]

Нет текстового описания
