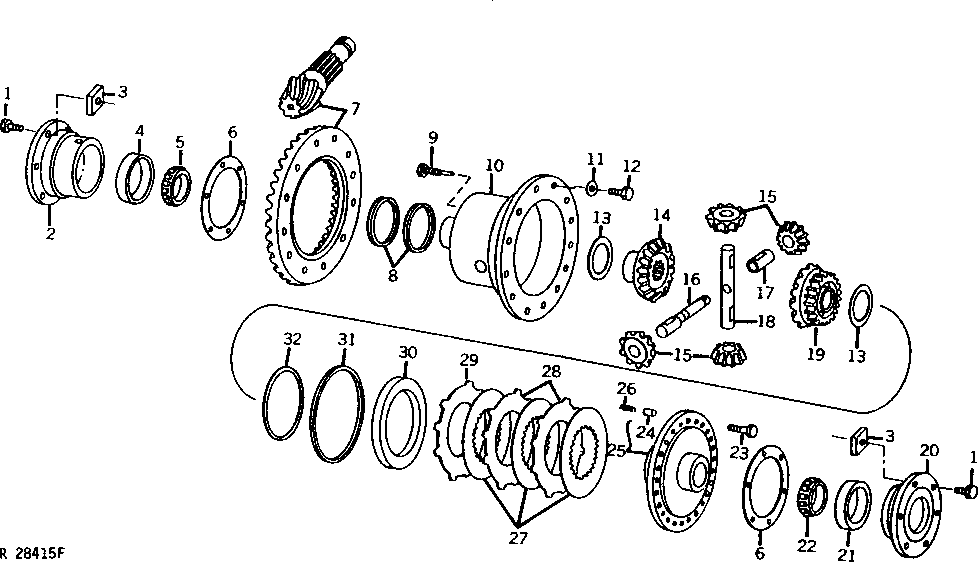

DIFFERENTIAL (DIFFERENTIAL LOCK) (POWER SHIFT) (FOUR-PINION) [03G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R46448	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R46323	1	Shim	0.08 MM (.003")
6	R46324	1	Shim	0.13 MM (.005")
6	R46325	1	Shim	0.25 MM (.010")
7	AR79093	1	BEVEL GEAR DRIVE	(MARKED R41764 AND R41766) (MATCHED SET)
8	R46326	2	Ring	-
9	R70236	1	CAP SCREW	-
10	AR79676	1	HOUSING	(MARKED R64102) (SUB AR101618)
11	R47172	10	Washer	-
12	R41048	12	CAP SCREW	-
13	R77145	1	WASHER	(SUB FOR R53202, R65741 OR R72587)
14	R63477	1	Bevel Gear	-
15	R42444	4	PINION	-
16	R64105	1	SHAFT	-
17	R64103	1	BUSHING	-
18	R64104	1	SHAFT	-
19	R66715	1	Bevel Gear	(SUB FOR R54180)
20	R46360	1	BEARING HOUSING W/O BEARING	-
21	JD8290	1	Bearing Cup	-
22	JD9019	1	BEARING CONE	-
23	R40236	12	Cap Screw	-
24	34H311	3	Spring Pin	1/4" X 7/8"
25	AR89837	1	COVER	(MARKED R56950 OR R68939)
26	R34863	3	SPRING	-
27	RE29428	3	DISK	(SUB FOR AR70154) (SUB RE53823, R34857 AND (3) R34858)
28	R34858	2	Clutch Plate	-
29	R34857	1	Clutch Plate	-
30	R34855	1	PISTON	-
31	R41017	1	WASHER	-
32	R44328	1	WASHER	-
..	AR91054	1	KIT	(SUB AR101618)
..	AR48800	1	BEARING HOUSING W/O BEARING	(INCLUDES R46448 AND JD8259)

DIFFERENTIAL (DIFFERENTIAL LOCK) (POWER SHIFT) (FOUR-PINION) [03G17]
