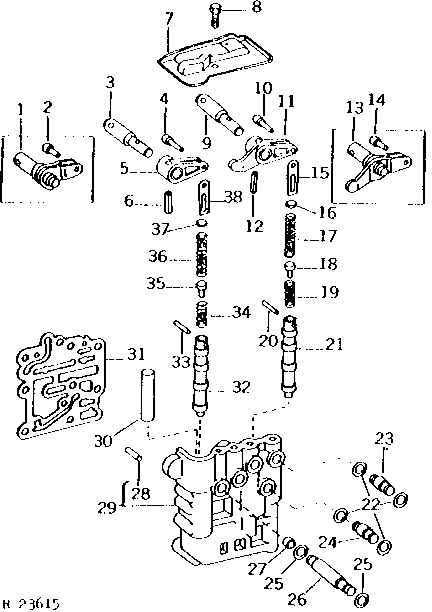

CLUTCH VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR54526	1	SHAFT	(SUB R62043, R63052, R58941 AND 34H313)
2	R33145	1	PIN	-
3	R63052	1	Shaft	(ALSO ORDER R62043, R58941 AND 34H313) (SUB FOR R58940 AND R62041)
4	R58941	1	Pin Fastener	-
5	R62043	1	Arm	(ALSO ORDER R63052, R58941 AND 34H313) (SUB FOR R58939)
6	34H328	1	Spring Pin	5/16" X 1-1/8"
6	34H313	1	Spring Pin	1/4" X 1-1/8"
7	R53268	1	Guard	-
8	R30165	1	Cap Screw	-
9	R63052	1	Shaft	(A) (ALSO ORDER R62042, R58941 AND 34H313) (SUB FOR R61939 OR R62041)
10	R58941	1	Pin Fastener	(A)
11	R67981	1	Arm	(A) (ALSO ORDER R63052, R58941 AND 34H313) (SUB FOR R58942 OR R62042)
12	34H313	1	Spring Pin	(A) 1/4" X 1-1/8"
12	34H328	1	Spring Pin	(A) 5/16" X 1-1/8"
13	AR54527	1	SHAFT	(A) (SUB R62042, R63052, R58941 AND 34H313)
14	R33145	1	PIN	(A)
15	R52666	1	Link	(A)
16	R52665	1	Disk	(A)
17	R52446	1	Spring	(A)
18	R52448	1	Pin	(A)
19	R52447	1	SPRING	(A)
20	R53076	1	Needle Roller	(A)
21	R51856	1	Valve	(A)
22	R26286	8	O-Ring	-
23	R52327	3	ADAPTER FITTING	-
24	R52328	1	ADAPTER FITTING	-
25	R26286	2	O-Ring	(QUAD-RANGE)
26	R52329	1	Adapter Fitting	(QUAD-RANGE)
27	R21630	1	PIPE PLUG	(SYNCRO-RANGE) (SUB FOR M4224T, THIS APPLICATION)
28	R38295	2	Needle Roller	-
29	AR71960	1	HOUSING	(MARKED R51855 OR R59597) (ALSO ORDER R99386) (SUB FOR AR61572) (SUB AR102797, MARKED R73809)
29	R54383	1	Plug	(LESS PTO)
29	34H268	1	Spring Pin	5/32" X 1-1/4"
30	R52900	1	Quick Lock Pin	(A)
31	R99386	1	GASKET	(SUB FOR R51857 OR R59598)
32	R51856	1	Valve	-
32	R62724	1	Valve	-
33	R53076	1	Needle Roller	-
34	R52447	1	SPRING	-
34	R63849	1	Spring	(SUB FOR R62727)
35	R52448	1	Pin	-
36	R52446	1	Spring	-
36	R62726	1	Spring	-
37	R52665	1	Disk	-
38	R52666	1	Link	-
38	R62725	1	Link	-

CLUTCH VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B19]
