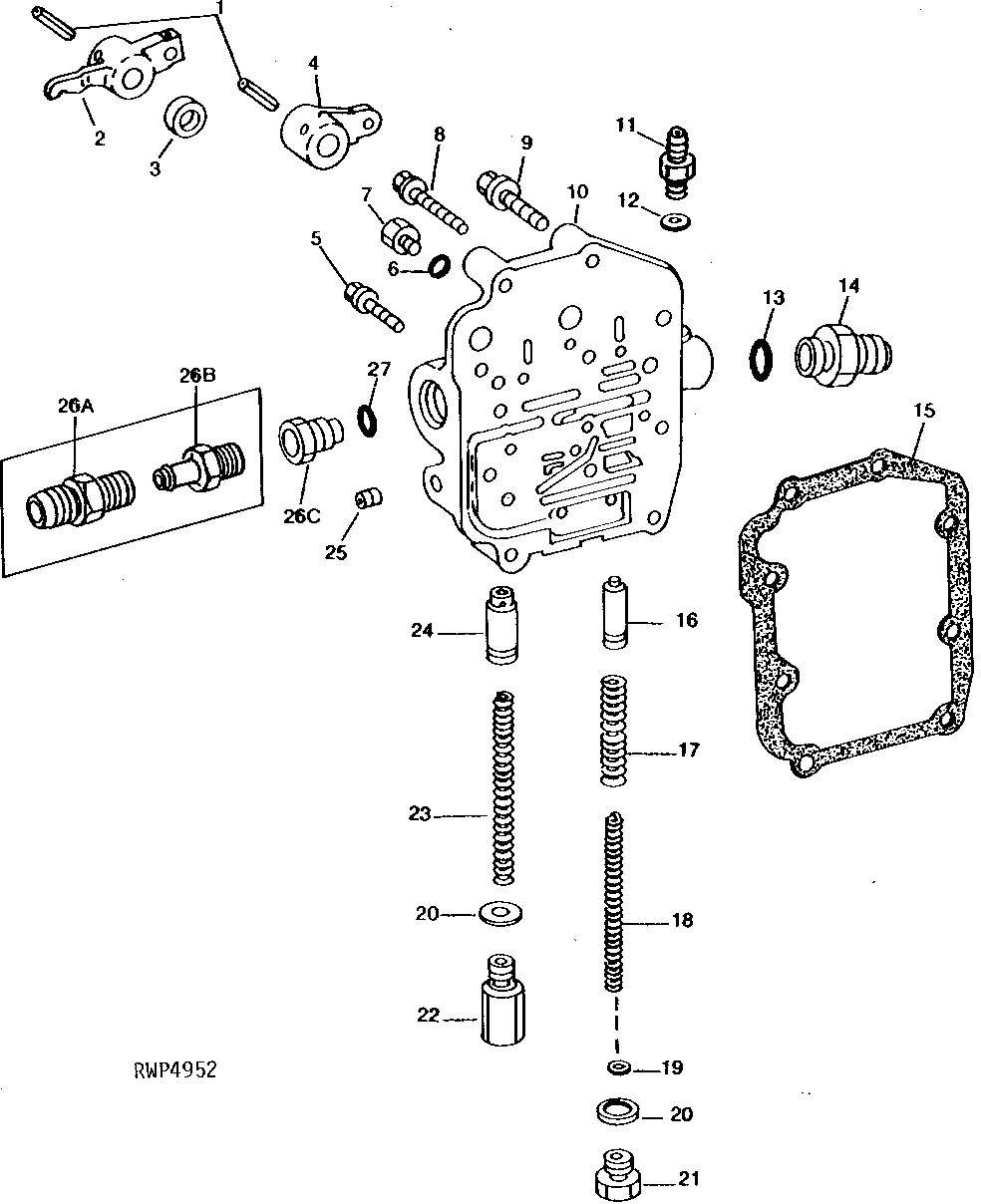

CLUTCH OIL PRESSURE REGULATING VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H331	2	Spring Pin	5/16" X 1-1/2"
2	R50333	1	ARM	-
3	AF2907R	2	Seal	-
4	R50334	1	Arm	-
5	19H3779	6	Screw	5/16" X 2", (SUB FOR R52904)
6	R26286	4	O-Ring	-
7	R27094	4	Drain Plug	-
8	R52907	2	SCREW	-
8	19H3779	2	Screw	5/16" X 2", (SUB FOR R52904)
9	19H3727	5	Screw	3/8" X 2", (SUB FOR R52906)
9	24H1298	3	Washer	3/8" X 5/8" X 0.032"
9	19H1731	3	Cap Screw	3/8" X 1"
9	19H3727	8	Screw	3/8" X 2", (SUB FOR R52906)
10	R51931	1	HOUSING	(SUB R66623, AR67011, R27003, R27094, (2) 19H3779, R76493, B2762R, (3) 19H1731 AND (3) 24H1298)
10	R57092	1	HOUSING	(SUB R66623, R27003 AND R27094)
10	R66623	1	HOUSING	(SUB FOR R57743)
10	R35286	1	PLUG	(LESS PTO)
11	R65684	1	FITTING	(SUB FOR R55525)
12	R27003	1	Washer	-
13	F3171R	1	O-Ring	-
14	R27267	1	Fitting	-
15	R94286	1	Gasket	(SUB FOR R52905)
16	R57559	1	VALVE	(ALSO ORDER R33259) (SUB FOR R33162, THIS APPLICATION)
17	R52903	1	SPRING	-
18	R52394	1	SPRING	-
19	R33521	1	Shim	-
20	R1742R	2	WASHER	-
21	R52589	1	FITTING PLUG	-
22	R51577	1	FITTING PLUG	-
23	R57585	1	SPRING	(SUB FOR R51576)
24	R57560	1	VALVE	(ALSO ORDER R33259) (SUB FOR R54042)
25	15H558	1	Pipe Plug	1/8", (SUB FOR R21630)
27	F3171R	1	O-Ring	-
27	B2762R	1	O-Ring	-
26A	R27267	1	Fitting	-
26B	R53540	1	Hose Fitting	-
26C	R76493	1	FITTING	(SUB FOR R56258)

CLUTCH OIL PRESSURE REGULATING VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B17]
