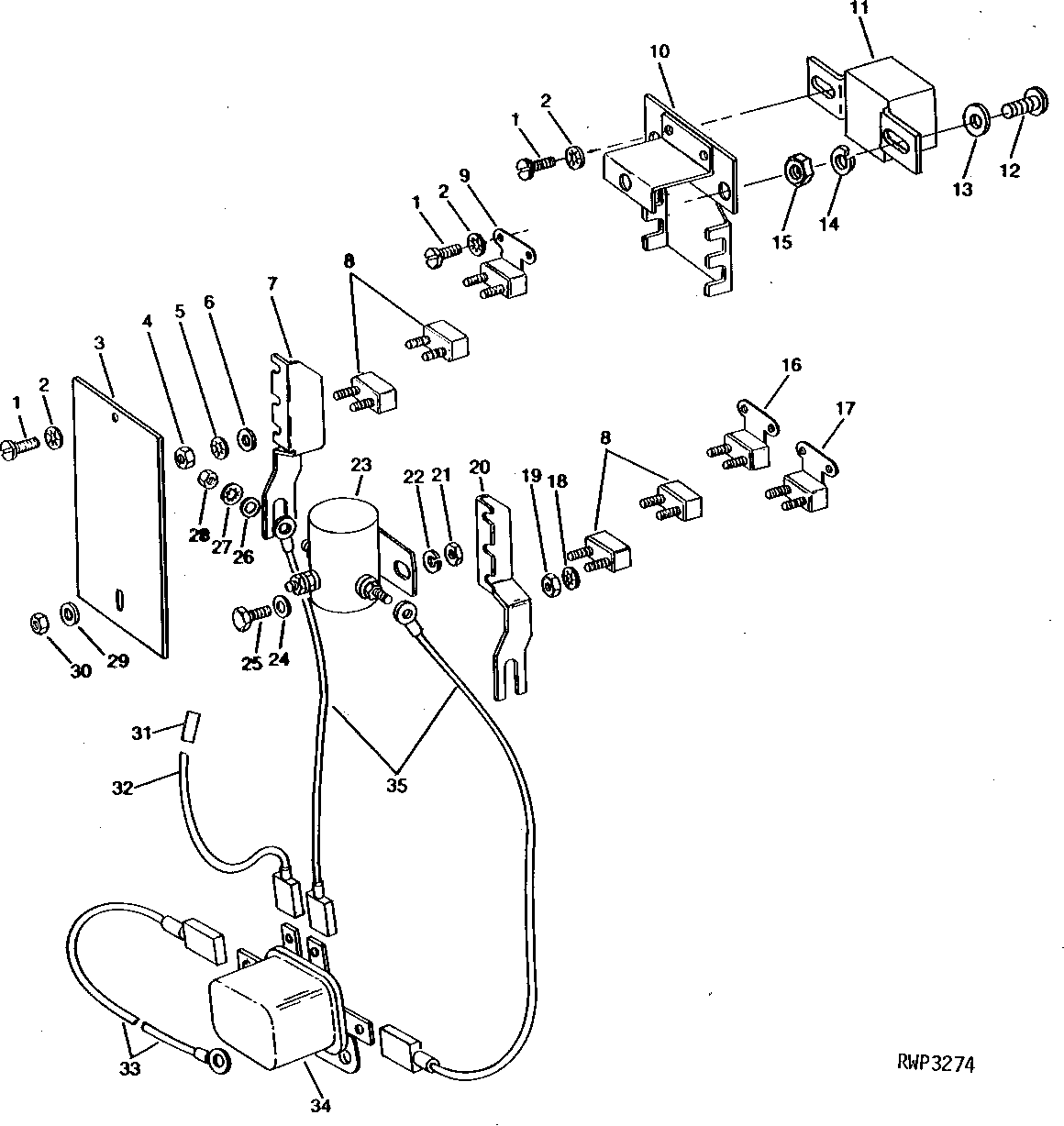

CIRCUIT BREAKERS AND RELAY (SOUND-GARD BODY) (TRACTOR SERIAL NO. -065975) [02C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1301	5	SCREW	0.190" X 1/2"
2	12M7060	5	Washer	0.209"
3	R52756	1	COVER	-
4	14H631	6	Nut	0.190"
5	12M7060	6	Washer	0.209"
6	24H1283	6	Washer	7/32" X 1/2" X 0.049"
7	R50044	1	FUSE HOLDER	-
8	AR56671	4	CIRCUIT BREAKER	20 AMP
9	AR55649	1	CIRCUIT BREAKER	10 AMP
10	AR58170	1	RETAINER	-
11	AR48594	1	Flasher	-
12	21H1295	2	Screw	0.190" X 5/8"
13	24H1283	2	Washer	7/32" X 1/2" X 0.049"
14	12M7060	2	Washer	0.209"
15	14H631	2	Nut	0.190"
16	AR28403	1	CIRCUIT BREAKER	20 AMP
17	AR28403	1	CIRCUIT BREAKER	20 AMP, (POWER FRONT WHEEL DRIVE)
17	AR55649	1	CIRCUIT BREAKER	10 AMP, (POWER FRONT WHEEL DRIVE)
18	12M7060	6	Washer	0.209"
19	14H631	6	Nut	0.190"
20	R50046	1	FUSE HOLDER	-
21	14H786	2	Nut	1/4"
22	12H302	2	Lock Washer	1/4"
23	AR46334	1	RELAY	(SUB FOR AR54484) (SUB AR91166, THIS APPLICATION)
24	24H1287	2	Washer	9/32" X 5/8" X 0.065"
25	19H1919	1	Cap Screw	1/4" X 5/8"
26	24H1136	2	Washer	11/32" X 11/16" X 0.065"
27	12H303	2	Lock Washer	5/16"
28	14H650	2	Nut	5/16"
29	T11651	1	SHIM	-
30	14H631	1	Nut	0.190"
31	R32027	1	Elec. Connector Terminal	-
32	AR78392	1	WIRING LEAD	RELAY COIL
33	AR78386	1	WIRING LEAD	RELAY GROUND
34	AH98337	1	RELAY	(SUB FOR AE23861)
35	AR78391	2	WIRING LEAD	RELAY TO BUSSBAR
..	AR56213	1	WIRING LEAD	BUSSBAR TO CHARGING CIRCUIT HARNESS
..	AR72391	1	WIRING LEAD	BUSSBAR TO STARTER RELAY
..	AR78381	1	KIT	WIRING ACCESSORY RELAY, (SUB AR91166)
