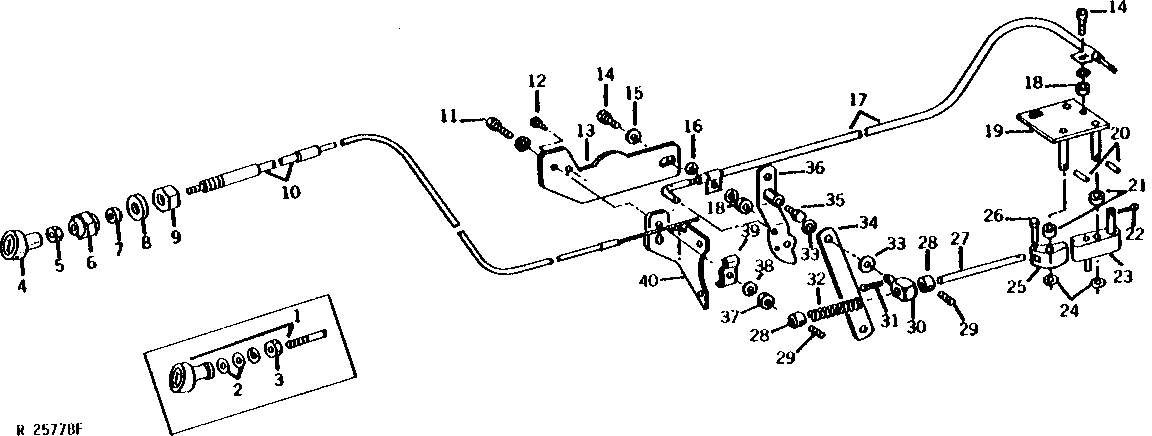

ANEROID CONTROL AND FUEL SHUT-OFF (ENGINE SERIAL NO. 427054-445569) [01F06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR65796	1	PUSH PULL CABLE	(SUB AR77678, R62899, R62900, R55202, 14H649, 12H304, 24M7096)
2	24H1299	2	Washer	3/8" X 1-1/4" X 0.065"
3	12H304	1	Lock Washer	3/8"
3	14H774	1	Nut	3/8"
4	R55202	1	Knob	-
5	14H649	1	Nut	1/4"
6	R62899	1	Nut	-
7	R62900	1	Washer	-
8	24M7096	1	Washer	10.500 X 18 X 1.600 MM
9	14H774	1	Nut	3/8"
10	AR77678	1	CABLE	-
11	12M7084	1	Lock Washer	(A) 0.169"
11	21H1319	1	Screw	(A) 0.164" X 7/8"
12	37H44	1	Screw	(A) 0.154" X 3/8"
13	R57841	1	GUIDE	(A) (NLA)
14	21H1295	2	Screw	(A) 0.190" X 5/8"
15	24H1283	1	Washer	(A) 7/32" X 1/2" X 0.049"
16	12M7060	1	Washer	(A) 0.209"
17	AR69541	1	PUSH PULL CABLE	(A)
18	14H631	2	Nut	(A) 0.190"
18	12H246	2	LOCK WASHER	(A) 0.190"
19	AR69539	1	BRACKET	(A)
20	34H228	2	SPRING PIN	(A) 3/32" X 9/16"
21	28H3082	2	Washer	(A) 0.269" X 0.405" X 9/32"
22	11M7077	1	Cotter Pin	(A) 1.600 X 25 MM
23	AR73544	1	BELLCRANK	(A)
24	B1664R	2	SHIM	(A)
25	R60649	1	LATCH	(A)
26	R61758	1	Pin	(A)
27	R61458	1	Shear Pin	(A)
28	R54294	2	SHIFT COLLAR	(A)
29	R30725	2	SCREW	-
30	R42912	1	SWIVEL	(A)
31	11M7079	1	Cotter Pin	0.098" X 0.472"
32	R26372	1	SPRING	(A)
33	24H1286	2	Washer	9/32" X 1/2" X 1/16"
34	R55065	1	LEVER	-
35	R60921	1	SCREW	-
36	AR63565	1	LEVER	-
37	14H605	1	Nut	(A) 0.164"
38	12H315	1	Lock Washer	(A) 0.164"
39	R53300	1	CLIP	-
40	R55066	1	BRACKET	-
..	AR74611	1	KIT	STARTING FUEL CONTROL FOR ENGINES PRIOR TO SERIAL NO. 427054 (NLA)

ANEROID CONTROL AND FUEL SHUT-OFF (ENGINE SERIAL NO. 427054-445569) [01F06]
