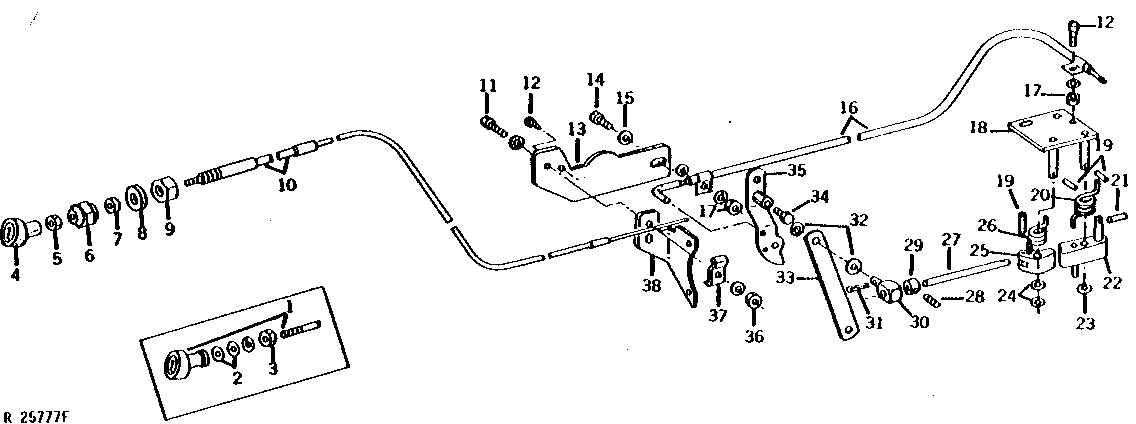

ANEROID CONTROL AND FUEL SHUT-OFF (ENGINE SERIAL NO. 390174-427053) [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR65796	1	PUSH PULL CABLE	(SUB AR77678, R62899, R62900, R55202, 14H649, 12H304 AND 24M7096)
2	24H1299	2	Washer	3/8" X 1-1/4" X 0.065"
3	12H304	1	Lock Washer	3/8"
3	14H774	1	Nut	3/8"
4	R55202	1	Knob	-
5	14H649	1	Nut	1/4"
6	R62899	1	Nut	-
7	R62900	1	Washer	-
8	24M7096	1	Washer	10.500 X 18 X 1.600 MM
9	14H774	1	Nut	3/8"
10	AR77678	1	CABLE	-
11	12M7084	1	Lock Washer	(A) 0.169"
11	21H1319	1	Screw	(A) 0.164" X 7/8"
12	37H44	1	Screw	(A) 0.154" X 3/8"
13	R57841	1	GUIDE	(A) (NLA)
14	21H981	2	SCREW	(A) 0.190" X 1/2"
15	24H1286	1	Washer	(A) 9/32" X 1/2" X 1/16"
16	AR69541	1	PUSH PULL CABLE	(A)
17	14H778	2	Nut	(A) 0.190"
17	12H246	2	LOCK WASHER	(A) 0.190"
18	AR69539	1	BRACKET	(A)
19	34H228	3	SPRING PIN	(A) 3/32" X 9/16"
20	R57885	1	SPRING	(A) (YELLOW)
21	34H206	1	SPRING PIN	(A) 5/64" X 1/4"
22	AR69538	1	LEVER	(A) (SUB AR73544 AND R60649)
23	B1664R	1	SHIM	(A)
24	24H1286	2	Washer	(A) 9/32" X 1/2" X 1/16"
25	R57838	1	LATCH	(A) (SUB R60649 AND AR73544)
26	R57714	1	SPRING PIN	(A) (GREEN)
27	R57840	1	SHEAR PIN	(A)
28	R30725	1	SCREW	-
29	R54294	1	SHIFT COLLAR	-
30	R42912	1	SWIVEL	-
31	11M7079	1	Cotter Pin	0.098" X 0.472"
32	24H1286	2	Washer	9/32" X 1/2" X 1/16"
33	R55065	1	LEVER	-
34	R60921	1	SCREW	-
35	AR63565	1	LEVER	-
36	14H605	1	Nut	(A) 0.164"
36	12H315	1	Lock Washer	(A) 0.164"
37	R53300	1	CLIP	-
38	R55066	1	BRACKET	-
..	AR70084	1	KIT	STARTING FUEL CONTROL FOR ENGINES PRIOR TO SERIAL NO. 390174, (NLA)

ANEROID CONTROL AND FUEL SHUT-OFF (ENGINE SERIAL NO. 390174-427053) [01F05]
