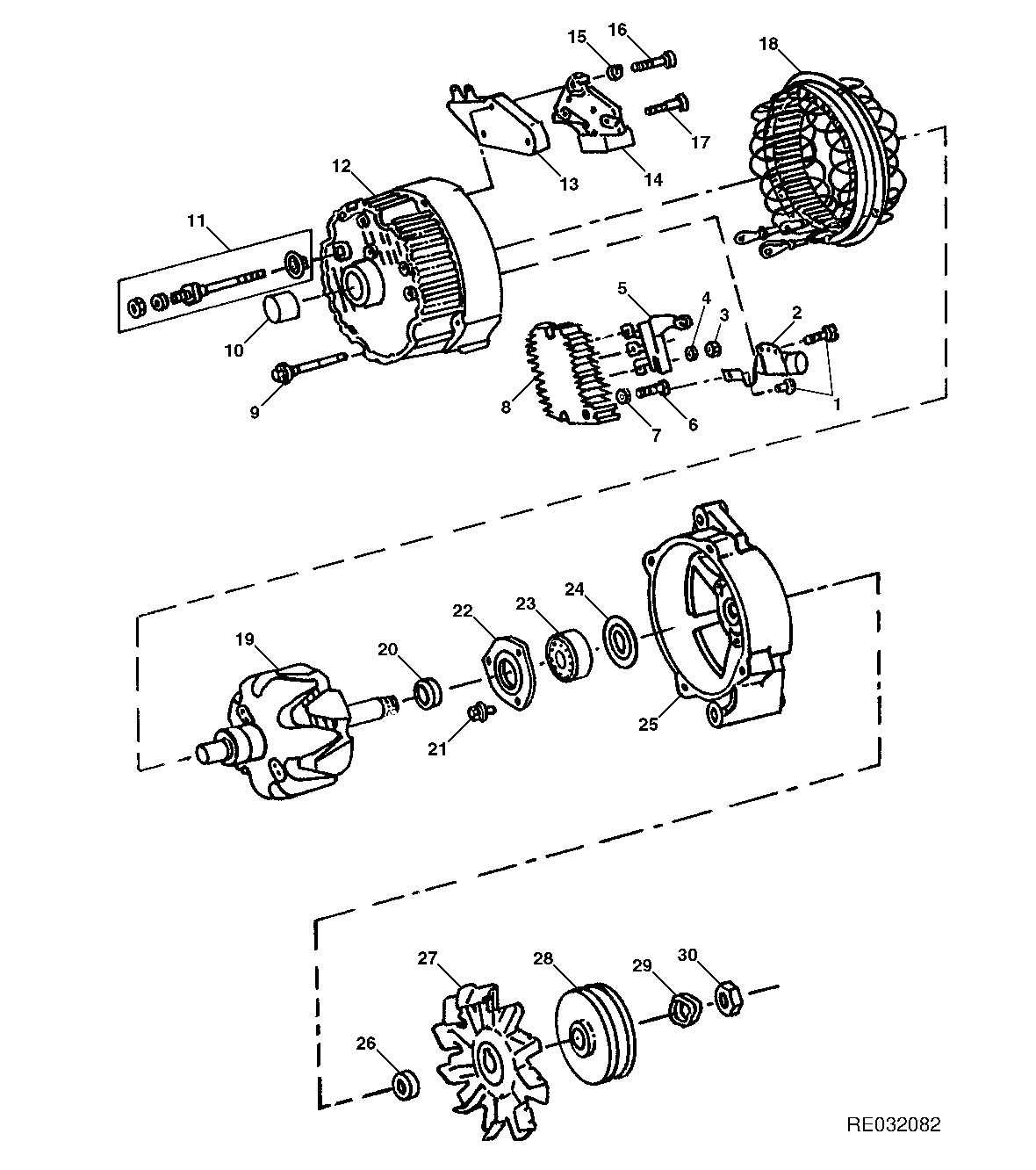

ALTERNATOR (12-VOLT) (DELCO-REMY) (TRACTOR SERIAL NO. -029611) [02C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H2	2	Screw	0.164" X 5/8"
2	AR55835	1	Capacitor	-
3	14H605	3	Nut	0.164"
4	12M7084	3	Lock Washer	0.169"
5	RE13798	1	Diode	(SUB FOR AR55831)
6	21H1319	1	Screw	0.164" X 7/8"
7	12M7084	1	Lock Washer	0.169"
8	AR55832	1	RECTIFIER	-
9	R51535	4	Cap Screw	-
10	AR77851	1	Cylindrical Roller Bearing	(SUB FOR AR55830)
11	AR55834	1	ELEC. CONNECTOR TERMINAL	(SUB AR93945 AND 14M7608)
12	R66301	1	HOUSING	(SUB R71400) (SUB FOR R51529)
13	AR55827	1	Voltage Regulator	(12-VOLT)
14	AR69269	1	BRUSH	(SUB FOR AR55833)
15	12M7084	5	Lock Washer	0.169"
16	R51531	1	SCREW	-
17	R51530	1	Screw	-
18	AR62395	1	STATOR	37 AMP
18	AR55837	1	STATOR	55 AMP, (SUB FOR AR55829 OR AR85940) (NLA)
19	RE13801	1	Rotor	(SUB FOR AR55828 OR AR78093) NLA
20	R51532	1	ECCENTRIC LOCKING COLLAR	-
21	21H1301	3	SCREW	0.190" X 1/2"
22	AR55836	1	RETAINER	(SUB R11109)
23	JD9449	1	Ball Bearing	(SUB FOR AT23188)
24	R51534	1	SHIM	-
25	R71399	1	Housing	(SUB FOR R51528 OR R69644) (SUB RE20035, R69645, 19H2705, 19H3552, 19H2661, 19H2043, 14H785 AND (4) 12H303)
26	R51533	1	WASHER	-
27	R50659	1	Fan	-
28	R52159	1	PULLEY	SINGLE
28	R81507	1	Pulley	DOUBLE, (SUB FOR R52161)
29	T10745	1	Washer	-
30	R11049	1	Nut	-
..	AR56728	1	ALTERNATOR	(A) 37 AMP, (SUB RE31694, 14M7608, 12M7006, 12M7065, 19M7163 OR TY6772)
..	AR54796	1	ALTERNATOR	(B) 55 AMP, (SUB RE31694, 14M7608, 12M7006, 12M7065, 19M7163 OR TY6772)
..	TY6772	1	ALTERNATOR	(72 AMP) (SUB FOR TY6600)

ALTERNATOR (12-VOLT) (DELCO-REMY) (TRACTOR SERIAL NO. -029611) [02C15]
