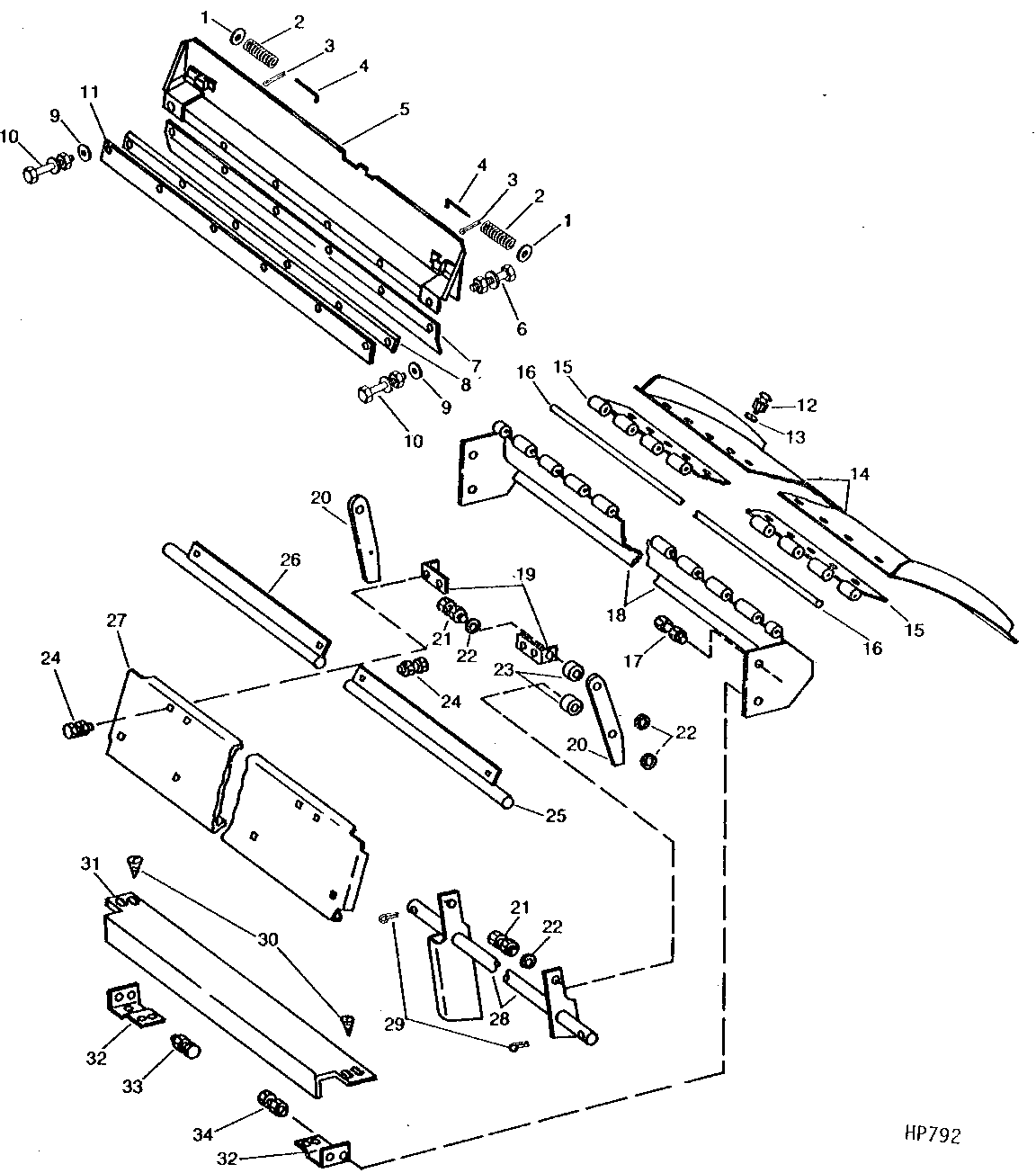

SEPARATOR FRONT SHEETS, FEED PLATE, REMOTE DUMP STONE TRAP, AND DOOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1305	2	Washer	13/32" X 13/16" X 0.065"
2	HZ5621H	2	Spring	-
3	11H211	2	COTTER PIN	1/8" X 3/4"
4	H76877	2	Pin Fastener	-
5	AH87716	1	Door	-
6	03H1540	6	Bolt	5/16" X 3/4"
6	12H303	6	Lock Washer	5/16"
6	14H785	6	Nut	5/16"
7	H82630	1	Seal	-
8	H75732	1	Strip	-
9	24H1136	2	Washer	11/32" X 11/16" X 0.065"
10	19H2127	6	Cap Screw	5/16" X 7/8"
10	12H303	6	Lock Washer	5/16"
10	14H785	6	Nut	5/16"
11	H78938	1	Seal	-
12	03H1463	7	Bolt	3/8" X 3/4"
12	12H304	7	Lock Washer	3/8"
12	14H812	7	NUT	3/8"
13	24H1305	7	Washer	13/32" X 13/16" X 0.065"
14	H102468	1	Plate	-
15	H82497	1	Hinge	-
16	H76258	1	Pin	-
17	19H1732	2	Cap Screw	3/8" X 1-1/4"
17	12H304	2	Lock Washer	3/8"
17	14H812	2	NUT	3/8"
18	AH92374	1	Support	-
19	H89649	2	Angle	-
20	H92931	2	Link	-
21	19H1849	4	Cap Screw	5/16" X 1-1/4"
21	12H303	4	Lock Washer	5/16"
21	14H785	4	Nut	5/16"
22	24H1822	8	Washer	11/32" X 7/8" X 1/16"
23	28H1883	4	Spacer	0.364" X 0.540" X 1/2"
24	03H1268	8	Bolt	5/16" X 3/4"
24	12H303	8	Lock Washer	5/16"
24	14H785	8	Nut	5/16"
25	AH96025	1	Support	DOOR, PIVOT, L.H.
26	AH96024	1	Support	DOOR, PIVOT, R.H.
27	AH113900	1	Door	-
27	AH92376	1	Door	(SUB AH113900)
28	AH92380	1	Shaft	-
28	AH113901	1	Shaft	-
29	11H218	2	Cotter Pin	3/16" X 1-1/2"
30	H76139	4	Screw	SELF-TAPPING
31	H92918	1	Deflector	-
32	H92919	2	Support	-
33	19H2284	2	Cap Screw	3/8" X 7/8"
33	12H304	2	Lock Washer	3/8"
33	14H812	2	NUT	3/8"
34	19H1800	2	Cap Screw	3/8" X 1-1/2"
34	12H304	2	Lock Washer	3/8"
34	14H812	2	NUT	3/8"

SEPARATOR FRONT SHEETS, FEED PLATE, REMOTE DUMP STONE TRAP, AND DOOR
