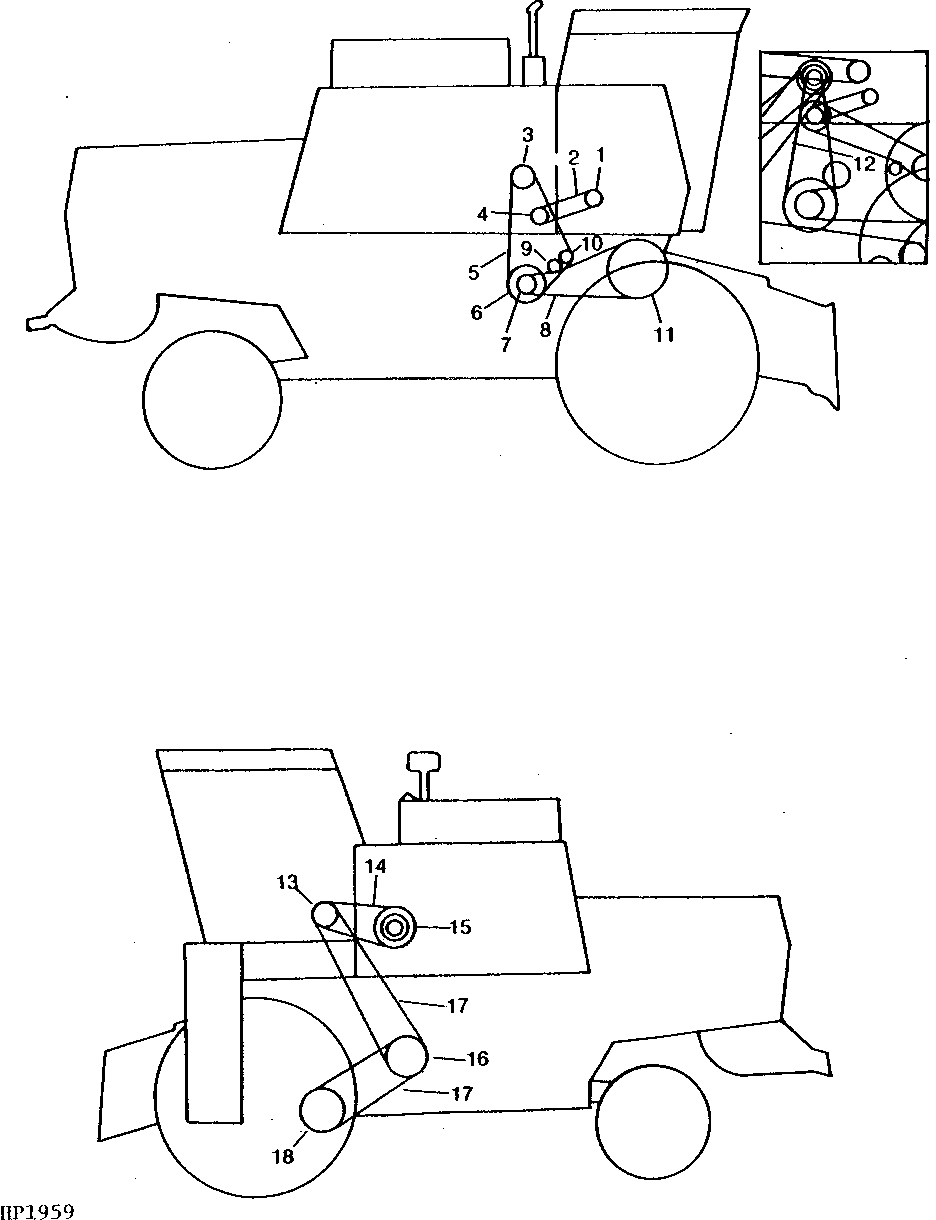

PRIMARY COUNTERSHAFT, BELTS, SHEAVES, SPROCKETS, CHAIN, AND TIGHTENERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H100585	1	Pulley	DRIVEN, CYLINDER TACHOMETER, 76 MM (3") DIA.
2	H83078	1	O-Ring	CYLINDER, TACHOMETER
3	AH84845	1	Pulley	SLIDING, PRIMARY COUNTERSHAFT CYLINDER DRIVE, 356 MM (14") DIA. (MARKED H75008)
3	AH84885	1	Pulley	FIXED, PRIMARY COUNTERSHAFT CYLINDER DRIVE, 356 MM (14-1/32") DIA. (MARKED H84417)
3	H85441	1	Chain Sprocket	(153 RPM), DRIVE, INTERMEDIATE CYINDER, 21 TEETH (SLOW SPEED)
3	H85442	1	Chain Sprocket	(182 RPM), DRIVE, INTERMEDIATE CYLINDER, 25 TEETH (SLOW SPEED)
4	H97481	1	Pulley	76 MM (3") DIA., DRIVE, CYLINDER TACHOMETER
5	H75816	1	V-Belt	CYLINDER INTERMEDIATE SHAFT
6	AH75294	1	Pulley	356 MM (14-1/32") DIA, SLIDING, DRIVEN, INTERMEDIATE CYLINDER
6	AH75293	1	Pulley	356 MM (14-1/32") DIA, FIXED, DRIVEN, INTERMEDIATE CYLINDER
6	H85448	1	Chain Sprocket	DRIVEN, INTERMEDIATE CYLINDER, 77 TEETH (SLOW SPEED)
7	H79647	1	Pulley	215 MM (8-29/64") DIA., DRIVE, CYLINDER,(HIGH SPEED)
7	H79646	1	Pulley	174 MM (6-55/64") DIA., DRIVE, CYLINDER, (SLOW SPEED)
8	AH80500	1	Belt Set	CYLINDER (MATCHED SET OF THREE)
9	AH86835	1	Idler	165 MM (6-1/2") DIA., TIGHTENER, CYLINDER DRIVE
10	AH86839	1	Idler	165 MM (6-1/2") DIA., TIGHTENER, INTERMEDIATE CYLINDER DRIVE
11	H84542	1	Pulley	467 MM (18-25/64") DIA., DRIVEN, CYLINDER
12	-	1	Part 18	DRIVE, ROLLER, TYPE 50-2, 16 MM (5/8") DOUBLE WIDTH, 126 LINKS (INTERMEDIATE SHAFT) (ASSEMBLE WITH 124 LINKS FROM AH66615 AND (2) SW50DOLUS) (SLOW SPEED CYLINDER DRIVE)
13	H84106	1	Pulley	227 MM, 232 MM, AND 181 MM (8-15/16", 9-1/8", AND 7-1/8") DIAS., ENGINE, POWER SHAFT
14	AH98052	1	Belt Set	PRIMARY COUNTERSHAFT (MATCHED PAIR)
15	H96848	1	Pulley	402 MM (15-53/64") DIA.
16	H75855	2	Pulley	HALF, PROPULSION COUNTERSHAFT, 397 MM (15-5/8") DIA. (SUB H112547)
16	H112547	2	Half Sheave	397 MM (15-5/8") DIA, HALF, PROPULSION COUNTERSHAFT
16	AH85700	1	Center Sheave	397 MM (15-5/8") DIA., CENTER, PROPULSION COUNTERSHAFT
17	H75847	2	V-Belt	PROPULSION (BELT DRIVE)
18	H75833	1	Pulley	356 MM (14") DIA, DRIVEN, LOWER PROPULSION
