OPERATOR'S PLATFORM SHIELDS, FLOORBOARD, FLOOR MATS, AND HANDRAILS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH87713	1	Shield	FRONT
2	19H1900	1	Cap Screw	5/16" X 3/4"
2	14H785	1	Nut	5/16"
2	12H303	1	Lock Washer	5/16"
3	24H1136	1	Washer	11/32" X 11/16" X 0.065"
4	H80970	2	Reinforcement	-
5	21H1069	2	SCREW	3/8" X 1"
5	14H812	2	NUT	3/8"
6	21H1075	4	Screw	5/16" X 1"
6	14H785	4	Nut	5/16"
7	H82936	1	Door	-
8	H82937	1	Door	-
9	H109904	1	Board	-
9	AH108504	1	Mat	-
9	AH86445	1	Mat	(WITH OPERATOR'S CAB) (SUB AH108504)
9	H95212	1	Floor	(LESS FLOOR MATS) (SUB H109904)
10	19H1731	4	Cap Screw	3/8" X 1"
10	12H304	4	Lock Washer	3/8"
10	14H812	4	NUT	3/8"
10	19H1731	1	Cap Screw	3/8" X 1"
10	12H304	1	Lock Washer	3/8"
10	14H812	1	NUT	3/8"
11	24H1305	4	Washer	13/32" X 13/16" X 0.065"
12	21H1310	1	SCREW	1/4" X 1/2"
12	14H786	1	Nut	1/4"
13	24H1287	1	Washer	9/32" X 5/8" X 0.065"
13	24H1305	1	Washer	13/32" X 13/16" X 0.065"
14	H83448	1	Reinforcement	-
15	R53663	2	SELF-LOCKING SCREW	-
15	14H812	2	NUT	3/8"
16	19H1801	2	CAP SCREW	3/8" X 2"
16	12H304	2	Lock Washer	3/8"
16	14H812	2	NUT	3/8"
17	24H1305	2	Washer	13/32" X 13/16" X 0.065"
19	24H1312	1	Washer	13/32" X 1-3/8" X 0.105"
20	21H1304	2	Screw	5/16" X 3/4"
20	14H785	2	Nut	5/16"
21	H103618	1	Shield	L.H., REAR
22	21H1321	2	Screw	3/8" X 3/4"
22	14H812	2	NUT	3/8"
23	R53668	4	THRUST WASHER	-
23	R53664	4	Self-Locking Screw	-
24	AH97858	1	Handrail	(WITH OPERATOR'S CAB)
..	-	1	Part 46	3 MM X 32 MM X 25 MM (1/8" X 1-1/4" X 1"), (AROUND LEFT AND RIGHT CONDENSATE DRAIN TUBES AT FLOORBOARD) (CUT FROM H88771)
18A	AH97870	1	Handrail	L.H., REAR
18B	AH114060	1	Handrail	L.H., REAR

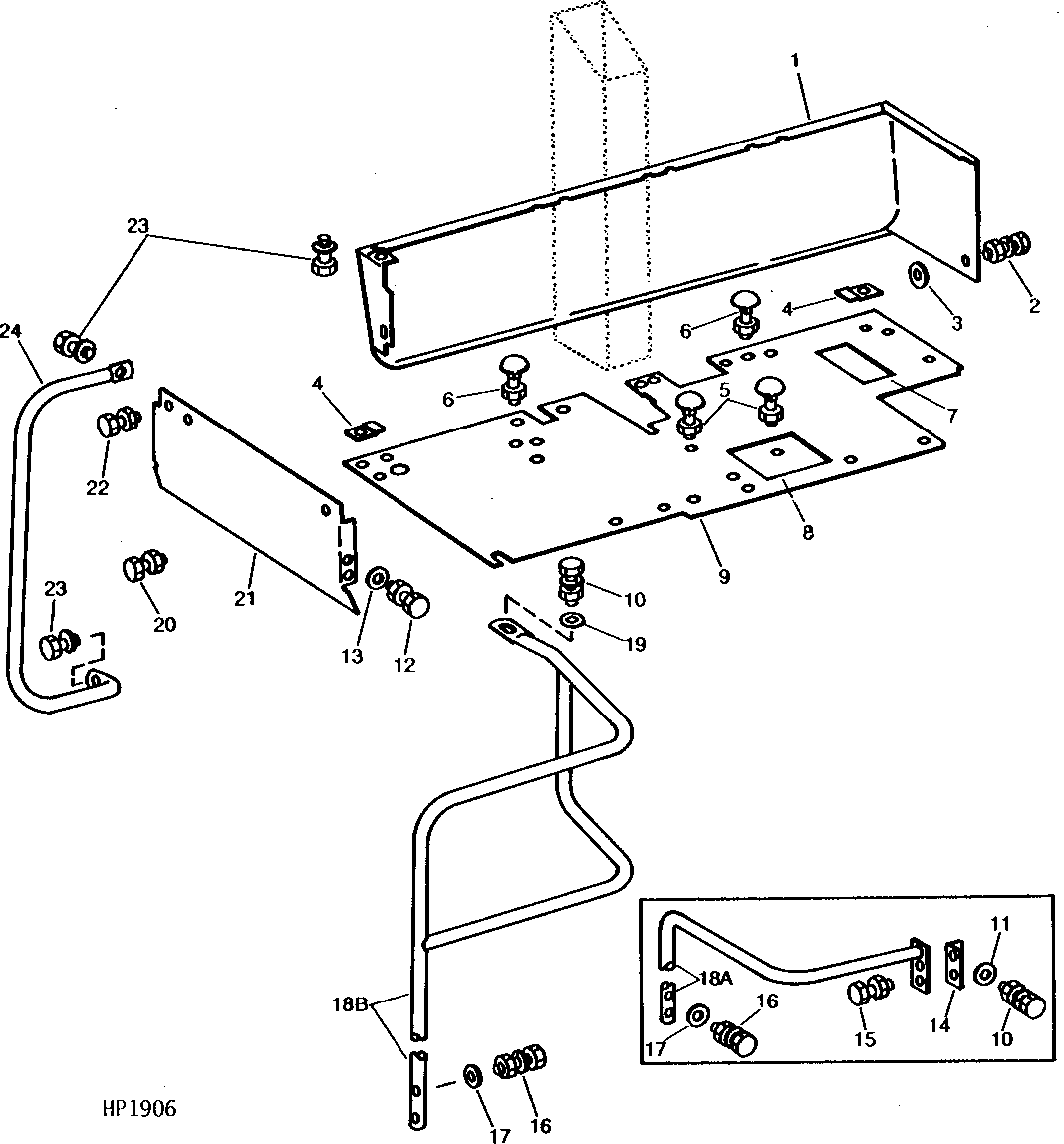

OPERATOR'S PLATFORM SHIELDS, FLOORBOARD, FLOOR MATS, AND HANDRAILS
