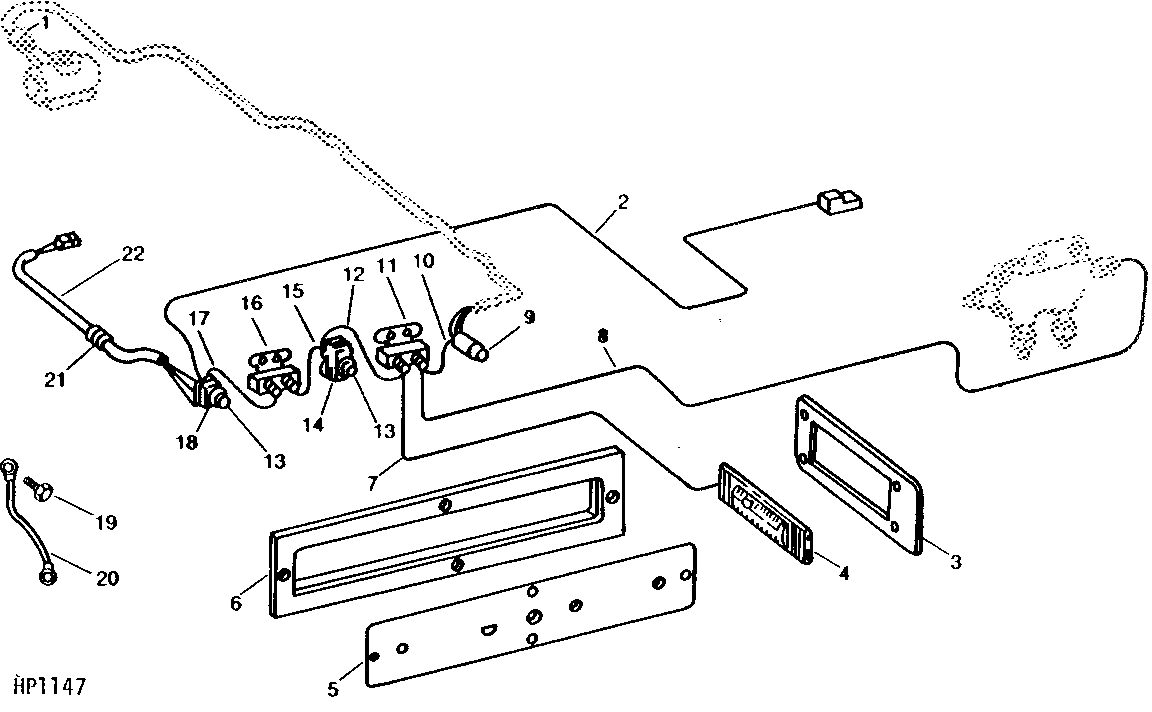

OPERATOR'S CAB ELECTRICAL WIRING AND SWITCHES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L1863N	1	Grommet	(WIPER)
2	-	1	Part 2	2845 MM (112") LONG, (MAKE FROM R66319, (2) U46662, AND T28583 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER AND HEATER)
2	AH117228	1	Wiring Harness	-
3	H84109	1	GASKET	-
4	AH80210	1	LAMP	DOME
5	H97813	1	Panel	SWITCH
6	H85835	1	HOUSING	PLATE, SWITCH
7	-	1	Part 8	711 MM (28") LONG, (MAKE FROM R66319, R32018, AND T28585 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER, PRESSURIZER, AND HEATER)
8	-	1	Part 9	2591 MM (102") LONG, (MAKE FROM R66319, AND (2) R32019 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER, PRESSURIZER, AND HEATER)
9	AT38296	1	SWITCH	WIPER, WITH KNOB
9	T44545	1	Knob	WIPER SWITCH
10	-	1	Part 12	127 MM (5") LONG, (MAKE FROM R66319, R32018, AND U46662 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER AND HEATER)
11	AR49352	1	Circuit Breaker	30 AMP
12	-	1	Part 14	229 MM (9") LONG, (MAKE FROM R66319, R32018, AND U46662 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER, PRESSURIZER, AND HEATER)
13	AH80168	1	KNOB	(PRESSURIZER AND AIR CONDITIONER)
14	AH84588	1	SWITCH	PRESSURIZER
14	H204146	1	Nut	-
15	-	1	Part 18	127 MM (5") LONG, (MAKE FROM R66319, R32018, AND U46662 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER AND HEATER)
16	AH96309	1	Circuit Breaker	6 AMP
17	-	1	Part 20	229 MM (9") LONG, (MAKE FROM R66319, R32018, AND U46662 IN AR84006 WIRE REPAIR KIT) (AIR CONDITIONER AND HEATER)
18	AH80197	1	SWITCH	THERMOSTAT (AIR CONDITIONER)
18	R44165	1	Lock Nut	(AIR CONDITIONER)
19	21H1299	1	SCREW	0.164" X 3/8"
20	-	1	Part 24	203 MM (8") LONG, (MAKE FROM R66321, R32019, AND R32022 IN AR84006 WIRE REPAIR KIT) (USED TO GROUND OPERATOR'S CAB)
21	H81679	1	GROMMET	-
22	AH80182	1	WIRING HARNESS	-

OPERATOR'S CAB ELECTRICAL WIRING AND SWITCHES
