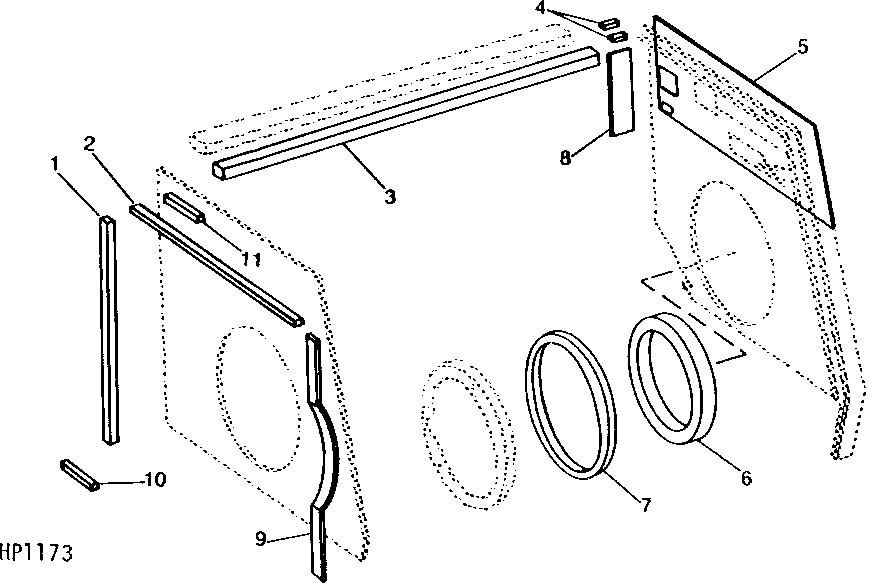

ENGINE COMPARTMENT SEALS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	19 MM X 19 MM X 610 MM (3/4" X 3/4" X 24"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT REAR) (CUT FROM H88769)
2	-	1	Part 2	10 MM X 25 MM X 711 MM (3/8" X 1" X 28"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT TOP) (CUT FROM H88769)
3	-	1	Part 3	25 MM X 25 MM X 1114 MM (1" X 1" X 4-7/8"), (BETWEEN TOP DOOR HINGE SEAL AND GRAIN TANK) (CUT FROM H81326)
4	-	2	Part 4	27 MM X 27 MM X 76 MM (1-1/16" X 1-1/16" X 3"), (UNDER GRAIN TANK CHANNEL NEXT TO INSTRUMENT WALL AND BETWEEN L.H. GUSSET AND INSTRUMENT WALL) (CUT FROM H88770)
5	H86990	1	Seal	PRESSURE SENSITIVE (ON ENGINE SIDE OF INSTRUMENT WALL AT TOP)
6	AH85910	1	Isolator	(BETWEEN INSTRUMENT WALL AND BELL HOUSING)
7	H81350	1	Seal	(BETWEEN INSTRUMENT WALL AND ENGINE SEAL PLATE)
8	-	1	Part 8	3 MM X 32 MM X 457 MM (1/8" X 1-1/4" X 18"), (BETWEEN REAR SHEET AND CORNER REINFORCEMENT ANGLE AT TOP) (CUT FROM H88771)
9	-	1	Part 9	19 MM X 19 MM X 737 MM (3/4" X 3/4" X 29"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT FRONT) (CUT FROM H88769)
10	-	1	Part 10	19 MM X 19 MM X 76 MM (3/4" X 3/4" X 3"), PRESSURE SENSITIVE (BETWEEN ROTARY SCREEN DOOR STOP BRACKET AND CORNER FRAME) (CUT FROM H88769)
11	-	1	Part 11	19 MM X 19 MM X 203 MM (3/4" X 3/4" X 8"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT LEFT FRONT) (CUT FROM H88769)
