ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	11	Lock Washer	3/8"
1	14H812	11	NUT	3/8"
1	19H1731	11	Cap Screw	3/8" X 1"
2	AH87796	1	Angle	-
3	21H1137	1	Screw	5/16" X 1-1/4"
3	12H303	1	Lock Washer	5/16"
3	14H785	1	Nut	5/16"
4	AH87795	1	Angle	-
5	AH93670	1	Support	-
6	19H1905	7	Cap Screw	5/16" X 1"
6	12H303	7	Lock Washer	5/16"
6	14H785	7	Nut	5/16"
7	H78809	1	Angle	-
8	12H303	2	Lock Washer	5/16"
8	14H785	2	Nut	5/16"
8	19H1900	2	Cap Screw	5/16" X 3/4"
9	H78808	1	Angle	-
10	H95044	1	Sheet	(SUB H103271)
10	H103271	1	Sheet	-
11	21H1069	5	SCREW	3/8" X 1"
11	12H304	5	Lock Washer	3/8"
11	14H812	5	NUT	3/8"
12	24H1378	2	Washer	11/16" X 1-15/32" X 0.134"
13	H86583	1	Sheet	-
14	19H1792	2	Cap Screw	1/2" X 1"
14	12H301	2	Lock Washer	1/2"
14	14H1040	2	Nut	1/2"
15	19H1813	4	CAP SCREW	5/16" X 5/8"
15	14H785	4	Nut	5/16"
15	12H303	4	Lock Washer	5/16"
16	H65108	3	Screw	-
16	H76139	2	Screw	-
17	AH102739	1	Support	(SUB AH105315)
17	AH105315	1	Support	(SUB AH109597)
17	AH109597	1	Support	-
18	19H1732	3	Cap Screw	3/8" X 1-1/4"
18	12H304	3	Lock Washer	3/8"
19	24H1305	3	Washer	13/32" X 13/16" X 0.065"
20	H85345	3	Strap	-
21	H86687	1	Angle	-
22	H91710	1	Rail	(SUB H103269)
22	H103269	1	Rail	-
23	19H1732	2	Cap Screw	3/8" X 1-1/4"
23	N10215	2	Lock Nut	-
24	AH83452	1	Angle	(SUB AH105062)
24	AH105062	1	Support	-
25	19H1815	3	Cap Screw	1/2" X 1-1/4"
25	12H301	3	Lock Washer	1/2"
25	14H1040	3	Nut	1/2"
26	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
27	19H1936	1	Cap Screw	3/8" X 3/4"
27	12H304	1	Lock Washer	3/8"
27	14H812	1	NUT	3/8"
28	H82617	1	Sheet	-
29	H78827	1	Angle	-

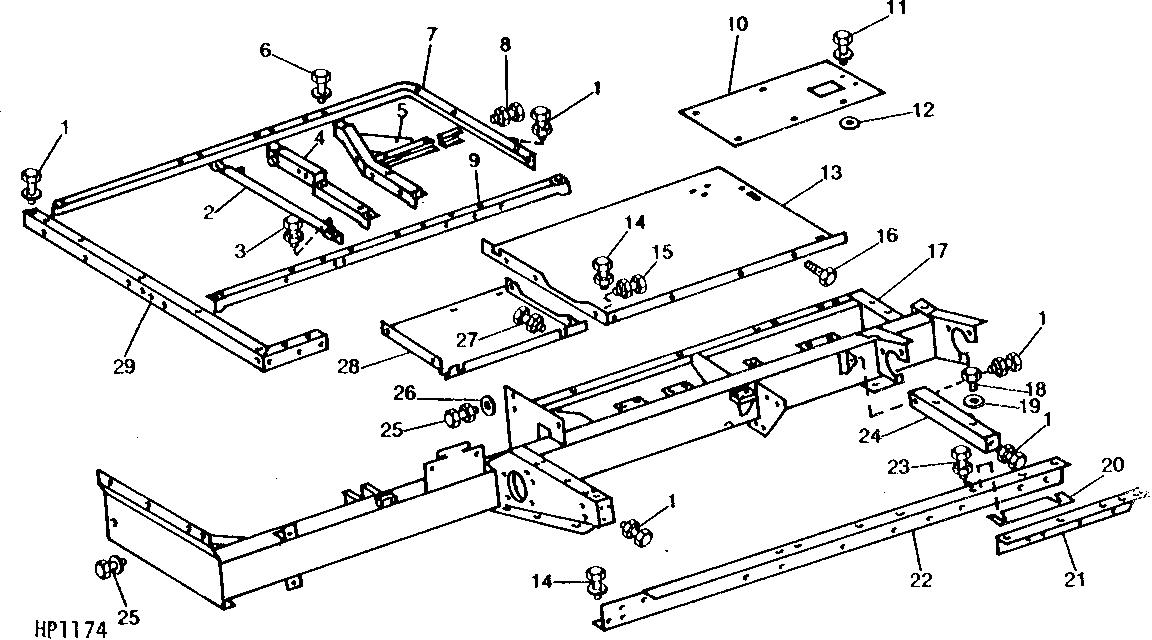

ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS
