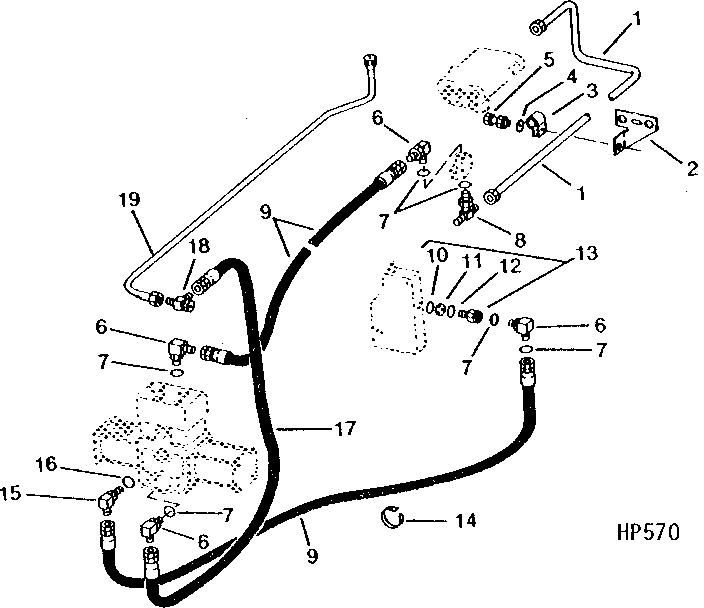

Auger Swing, Automatic Header Height Lines, And Dial-A-Matic Header Height Control

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89609	1	Line	UPPER PLATFORM
2	H88393	1	Bracket	-
3	AH76882	1	Clip	-
4	24H1243	1	WASHER	11/32" X 5/8" X 1/16"
5	19H1900	1	Cap Screw	5/16" X 3/4"
5	12H303	1	Lock Washer	5/16"
5	14H785	1	Nut	5/16"
6	AR26763	5	ELBOW FITTING	90°
7	R26375	6	O-Ring	-
8	AR32667	1	TEE FITTING	-
9	AH89607	2	Hydraulic Hose	-
10	R28776	1	O-Ring	(WITH AUTOMATIC AND DIAL-A-MATIC HEADER HEIGHT)
11	E41820	1	Back-Up Ring	(WITH AUTOMATIC AND DIAL-A-MATIC HEADER HEIGHT)
12	U40745	1	O-Ring	(WITH AUTOMATIC AND DIAL-A-MATIC HEADER HEIGHT)
13	AH89356	1	Pipe Plug	(WITH AUTOMATIC AND DIAL-A-MATIC HEADER HEIGHT)
13	R39112	1	Fitting	(WITHOUT AUTOMATIC AND DIAL-A-MATIC HEADER HEIGHT)
13	R26375	1	O-Ring	(WITHOUT AUTOMATIC AND DIAL-A-MATIC HEADER HEIGHT)
14	M66044	1	Tie Band	-
15	AR37017	1	Elbow Fitting	(SUB AT35120)
15	AT35120	1	Elbow Fitting	90°
16	R26448	1	O-Ring	-
17	AH89613	1	Hydraulic Hose	-
18	AN33434	1	Tee Fitting	-
19	AH89610	1	Line	-

Auger Swing, Automatic Header Height Lines, And Dial-A-Matic Header Height Control
