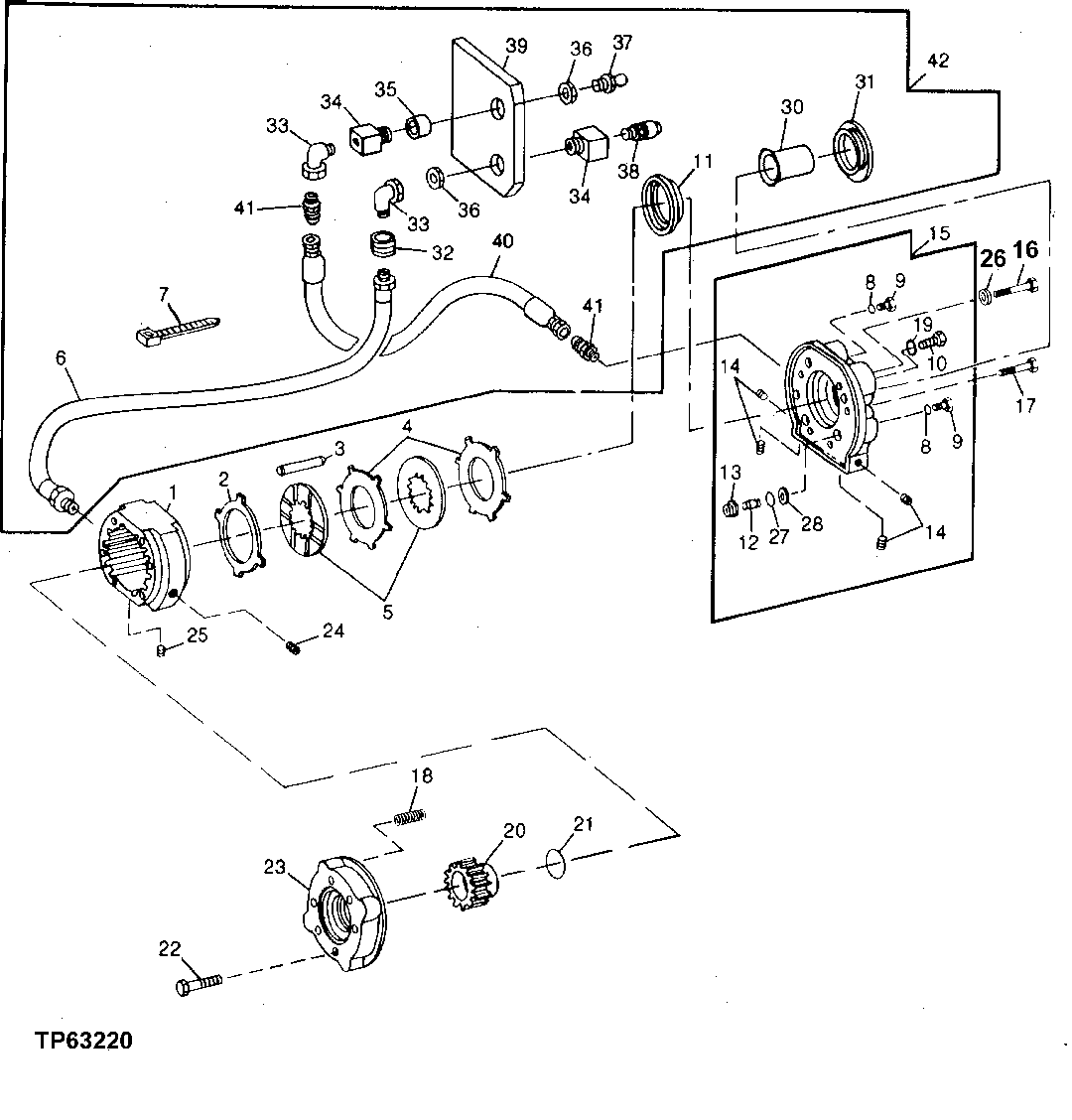

PARKING BRAKE (SERIAL NO. 531034- ) [02B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T118942	1	HOUSING	(SUB FOR T74234)
2	T74235	1	PLATE	-
3	R26144	4	SHAFT	-
4	T113689	8	DISK	(SUB FOR T21315, THIS APPLICATION)
5	AT117553	8	LINING	(SUB FOR T44128)
6	AT64886	2	Hydraulic Hose	1/8" X 1 740 MM (68-1/2") X 1/8"
6	AT64886	1	Hydraulic Hose	1/8" X 1 740 MM (68-1/2") X 1/8"
7	R44302	2	Tie Band	-
8	R26286	2	O-Ring	-
9	R27094	2	Drain Plug	-
10	R39112	1	Fitting	-
11	AT141741	1	SEAL	-
12	T74232	4	PIN	-
13	T74233	4	SEAL	-
14	15H558	4	Pipe Plug	1/8"
15	AT113894	1	HOUSING	-
16	19H3542	4	Cap Screw	1/2" X 6-1/2"
17	19H3030	2	Cap Screw	1/2" X 1-1/4"
18	T74237	18	COMPRESSION SPRING	-
19	R26375	1	O-Ring	-
20	T119079	1	HUB	-
21	T14065	1	O-Ring	-
22	19H3616	6	Screw	1/2" X 3"
23	T74236	1	HOUSING	-
24	RE57836	1	Pipe Plug	1/2", (SUB FOR 15H561)
25	15H638	1	Pipe Plug	1/8"
26	T23891	4	Washer	-
27	R56461	4	O-Ring	-
28	R78388	4	WASHER	-
29	AT114358	1	SEAL	-
30	T128056	1	SLEEVE	-
31	AT142972	1	SEAL	-
32	15H84	1	Coupling	1/8"
33	T56112	2	Elbow Fitting	-
34	R36311	2	Fitting	-
35	28H860	1	Washer	0.423" X 0.675" X 3/8"
36	E12379	2	Nut	-
37	JD7797	1	Lubrication Fitting	-
38	AT142746	1	VENT	-
39	-	1	Part 40	( T27328 NO LONGER AVAILABLE)
40	AT57327	1	HYDRAULIC HOSE	3/8" X 1 802 MM (71") X 3/8"
41	R39832	2	Adapter Fitting	-
42	-	1	Part 43	NLA AT142882
