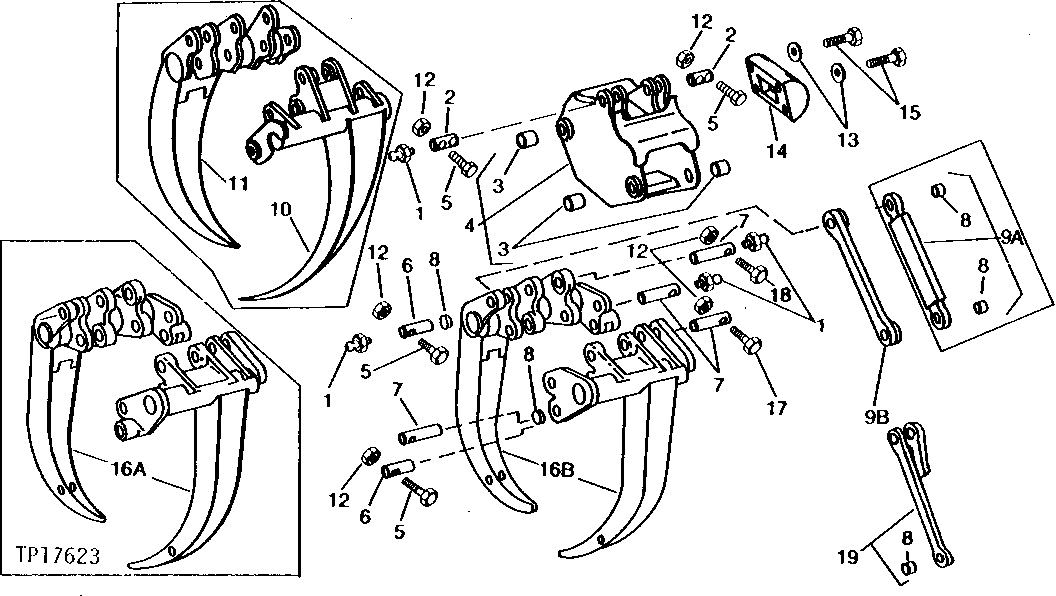

GRAPPLE FRAME WITH CROSSLINK AND TONGS (GRAPPLE SKIDDER) [03B04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	8	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR T162396)
2	AT90345	2	PIN	(GRAPPLE FRAME TO YOKE) (WITH GREASE FITTING) (SUB FOR T56471)
3	T25877	4	BUSHING	-
4	AT50599	1	FRAME	(ALSO ORDER (2) AT73329 HYDRAULIC HOSES) (SUB AT77160)
4	AT77160	1	FRAME	LOG GRAPPLE
4	AT84626	1	FRAME	-
5	19H3404	8	Cap Screw	3/8" X 4", (USE WITH AT50601 AND AT50608)
5	19H2228	4	Cap Screw	3/8" X 4", (USE WITH AT79180)
6	T56470	2	PIN FASTENER	(USE WITH AT50601 AND AT50608)
6	AT90345	2	PIN	(WITH GREASE FITTING) (USE WITH AT79180) (SUB FOR T56471)
7	T56469	4	PIN FASTENER	(USE WITH AT50601 AND AT50608)
7	T77141	4	PIN FASTENER	(USE WITH AT79180)
8	T29885	2	BUSHING	-
8	T29885	3	BUSHING	-
10	AT50601	1	TONG	(A) LOG GRAPPLE, R.H.
11	AT50608	1	TONG	(A) LOG GRAPPLE, L.H.
12	H129201	10	Lock Nut	(SUB FOR T32552 OR T11234)
13	24H1211	4	Washer	9/16" X 1-3/8" X 0.105"
14	T51632	1	BUMPER	HALF ROUND
15	19H2644	4	Cap Screw	1/2" X 2-1/2"
17	19H2054	2	CAP SCREW	(USE WITH AT79180)
17	19H2054	6	CAP SCREW	3/8" X 4-3/4", (USE WITH AT50601 AND AT50608)
18	19H2104	4	Cap Screw	(USE WITH AT79180)
19	AT85602	1	LINK	(A)
9A	AT50613	1	DRAG LINK	(USE WITH AT50601 AND AT50608)
9B	T78976	1	LINK	(A)
16A	AT75753	2	TONG	(A)
16B	AT79180	2	TONG	(A)
