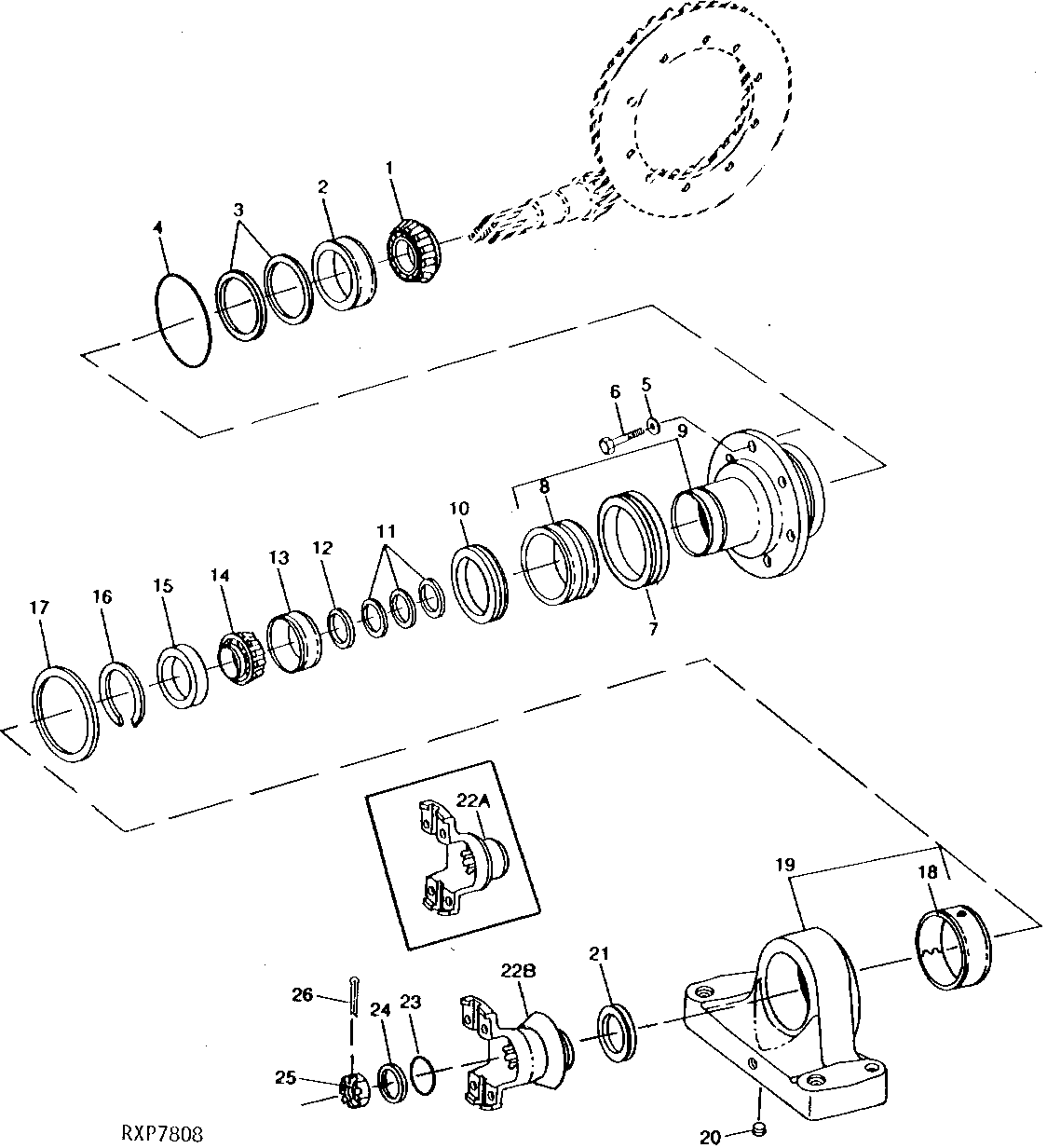

FRONT DIFFERENTIAL YOKE AND QUILL (ROAL) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD8970	1	Bearing Cone	-
2	JD8264	1	Bearing Cup	-
3	-	1	Part 4	(A) 0.13MM (.005") ( R26228 NO LONGER AVAILABLE)
3	-	1	Part 3	(A) 0.08MM (.003") ( R26227 NO LONGER AVAILABLE)
4	R27796	1	O-Ring	-
5	R47172	6	Washer	-
6	R68206	6	Cap Screw	-
6	R48783	6	CAP SCREW	-
7	R91560	1	SEAL	-
8	R37436	1	BUSHING	-
8	R91785	1	BUSHING	-
9	RE30146	1	BEARING HOUSING W/O BEARING	(MARKED R67053, R77346 OR R90577) (SUB FOR AR87170)
9	RE31758	1	BEARING HOUSING W/O BEARING	-
10	R87141	1	V-Ring Seal	-
11	R45197	1	Shim	0.18MM (.007")
11	R45198	1	Shim	0.25MM (.010")
11	R45199	1	Shim	0.30MM (.012")
11	R45200	1	Shim	0.38MM (.015")
12	R135535	1	Spacer	(SUB FOR R45201)
13	JD8240	1	Bearing Cup	-
14	JD8974	1	Bearing Cone	-
15	R37410	1	Seal	(SUB FOR RE10888) (SUB RE45312)
16	R50952	1	SNAP RING	-
17	R37439	1	WASHER	-
17	R92078	1	THRUST WASHER	-
18	R37438	1	BUSHING	-
18	R78266	1	Bushing	-
19	RE33189	1	SUPPORT	(MARKED R78154, R69275 OR R93387) (SUB FOR AR90388 OR RE12554) (ALSO ORDER 15H558)
19	RE31460	1	SUPPORT	(MARKED R90558)
20	15H558	1	Pipe Plug	1/8", STRAIGHT, 1/8"
21	R89326	1	Seal	-
23	U10289	1	O-Ring	-
24	R48733	1	Washer	0.63MM (.025")
24	R48734	1	Washer	0.62MM (.024")
24	R48735	1	Washer	0.60MM (.024")
25	R48776	1	Nut	HEX, SLOTTED
26	11M7032	1	Cotter Pin	5 X 50 MM
22A	R47655	1	Universal Joint Yoke	(SUB FOR R47653) (SUB RE30076 AND RE45312)
22B	RE30076	1	UNIVERSAL JOINT YOKE	(MARKED R89911)
22B	RE32423	1	UNIVERSAL JOINT YOKE	-

FRONT DIFFERENTIAL YOKE AND QUILL (ROAL) [01B18]
