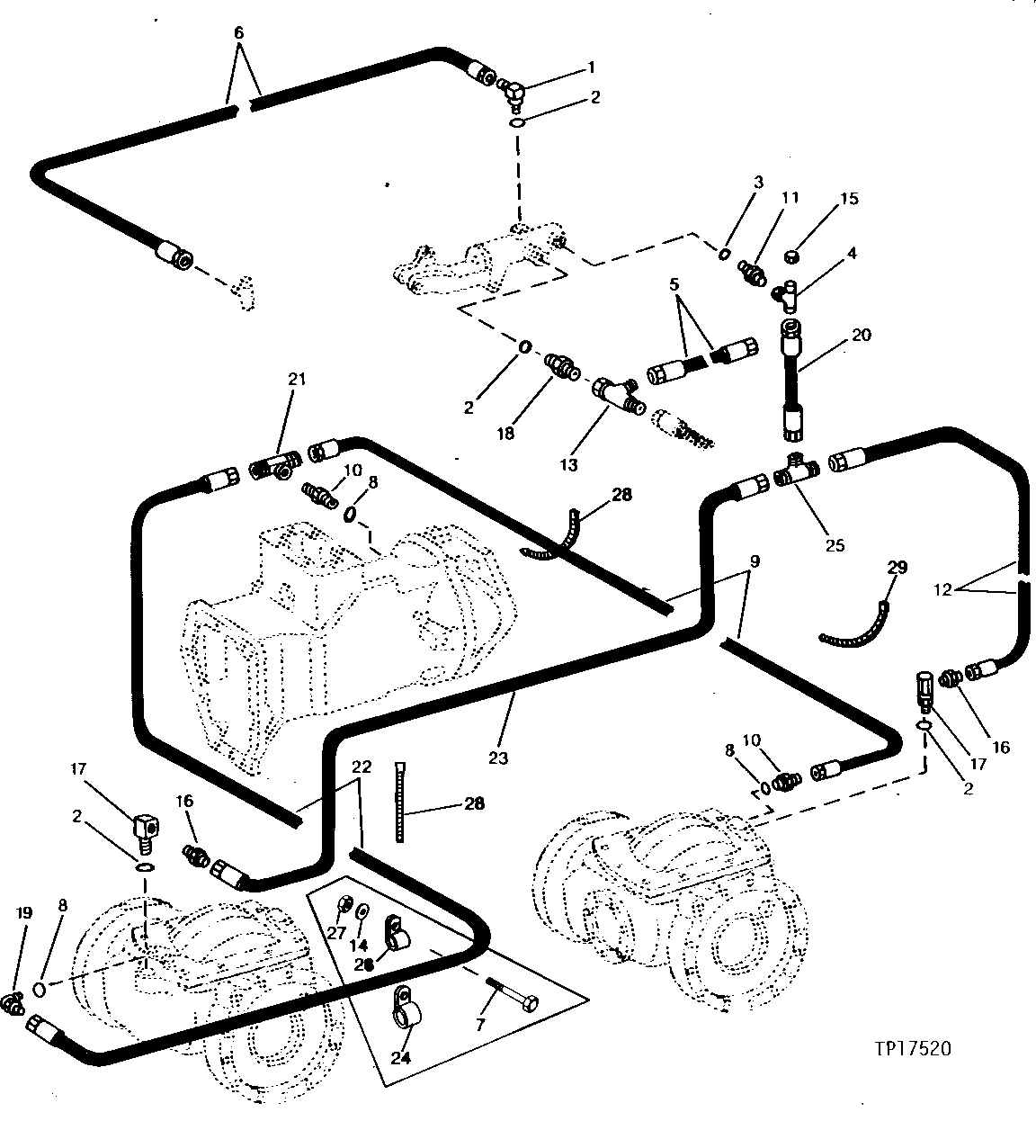

FRONT AND REAR DIFFERENTIAL LOCK VALVE HYDRAULICS [01C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT36464	1	ELBOW FITTING	-
2	R26287	4	O-Ring	-
3	R26286	1	O-Ring	-
4	AT42420	1	Tee Fitting	-
5	AT73330	1	HYDRAULIC HOSE - FABRICATE	1/2" X 838 MM (33") X 9/16"
6	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16"
7	19H2676	1	Cap Screw	3/8" X 1", (NO LONGER USED)
8	R26906	3	O-Ring	-
9	AR51461	1	HYDRAULIC HOSE	1-1/16" X 1 372 MM (54") X 1-1/16" RETURN FRONT
10	T38666	2	Fitting	-
11	R27272	1	Fitting	-
12	AU43485	1	HYDRAULIC HOSE - FABRICATE	1/2" X 1 219 MM (48") X 9/16", PRESSURE FRONT, (SUB FOR AT44032)
13	U45760	1	FITTING	-
14	R42729	1	Washer	(NO LONGER USED)
15	R39783	1	Fitting	-
16	R27346	2	Fitting	-
17	AT46962	2	ELBOW FITTING	-
18	R46704	1	Fitting	-
19	AE30518	1	Elbow Fitting	-
20	AR67565	1	Hose	9/16" X 470 MM (18-1/2") X 9/16"
21	AT53289	1	Fitting	-
22	AT59462	1	HYDRAULIC HOSE - FABRICATE	1/2" X 3 264 MM (128-1/2") X 9/16", PRESSURE REAR
22	AT77902	1	HYDRAULIC HOSE - FABRICATE	1/2" X 3 264 MM (128-1/2") X 9/16", PRESSURE REAR
23	AT73029	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 3 556 MM (140") X 1-1/16", RETURN REAR
23	AT77903	1	Hydraulic Hose	1-1/16" X 3 556 MM (140") X 1-1/16", RETURN REAR
24	R72659	1	Clamp	(SUB FOR AH83545)
24	T28949	1	Clamp	(NO LONGER USED)
25	T20926	1	Tee Fitting	-
26	R46414	1	Clamp	(SUB FOR T45038 AND AH78125, THIS APPLICATION)
26	R46667	1	Clamp	(NO LONGER USED)
27	14H812	1	NUT	3/8", (NO LONGER USED)
28	R44302	2	Tie Band	-
29	H77698	1	Tie Band	BAND FRONT DIFFERENTIAL RETURN AND PRESSURE HOSES TO MAIN HYDRAULIC PUMP CHARGE LINE 6" AHEAD OF CLAMP THAT ATTACHES CHARGE LINE TO ENGINE FLYWHEEL HOUSING
