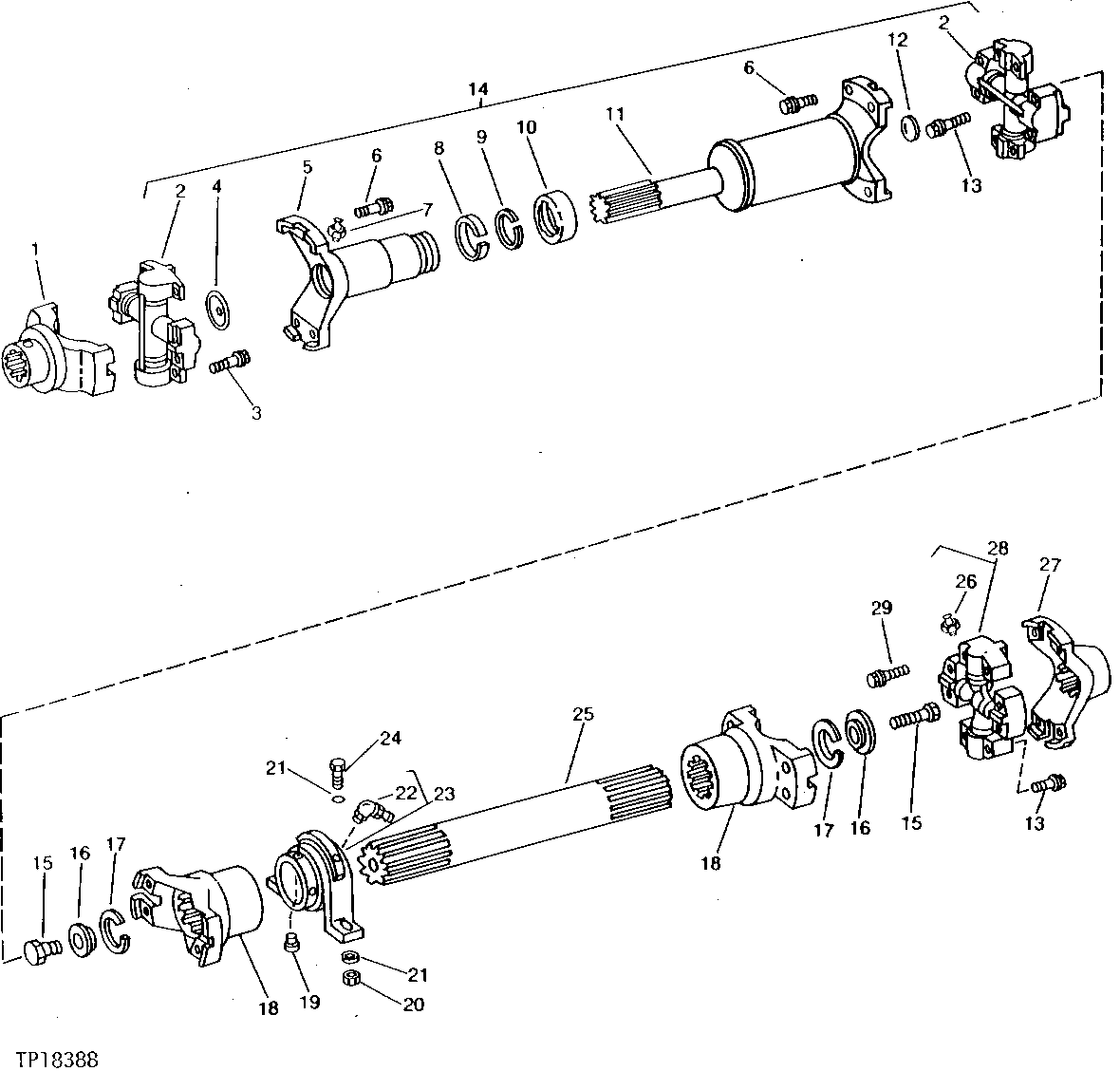

DOUBLE UNIVERSAL TELESCOPING JOINT (SERIAL NO. -517646) [01C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R47655	1	Universal Joint Yoke	(SUB FOR T74745) TRANSMISSION OUTPUT
2	AT74268	2	CROSS AND BEARING ASSEMBLY	-
3	T66731	4	SCREW	-
4	T25242	1	WASHER	-
5	-	1	Part 5	( T49027 NO LONGER AVAILABLE, SUB AT114338)
6	T82430	8	SCREW	(SUB FOR T76091)
7	JD7759	1	Lubrication Fitting	1/8"
8	T29903	1	BACK-UP RING	(USE WITH AT74270)
8	-	1	Part 9	(NOT AVAILABLE FOR SERVICE)
9	T25244	2	WASHER	-
9	-	1	Part 11	(NOT AVAILABLE FOR SERVICE)
10	T25243	1	CAP	-
10	-	1	Part 13	(NOT AVAILABLE FOR SERVICE)
11	-	1	Part 14	( AT47624 NO LONGER AVAILABLE, SUB AT114338)
12	30H17	1	Plug	EXPANSION, (USE WITH AT47624) (SUB FOR T25246)
13	T66730	8	SCREW	-
14	AT114338	1	DRIVE SHAFT	TELESCOPING, (SUB FOR AT74270)
15	19H2473	2	Cap Screw	1/2" X 1-3/4"
16	T45168	2	WASHER	-
17	T45167	2	SNAP RING	-
18	T45166	2	UNIVERSAL JOINT YOKE	-
19	T113716	1	PIN	(SUB FOR T27135)
20	14H1040	2	Nut	1/2", (SUB FOR 14H809)
21	T21242	4	Washer	-
21	T21242	2	Washer	-
22	JD7781	1	Lubrication Fitting	1/8", 90°
23	AT114340	1	BEARING WITH HOUSING	COUPLING SHAFT SUPPORT (SUB FOR AT44078, ALSO ORDER T113716)
24	19H2735	2	Cap Screw	1/2" X 2"
24	19M7813	2	Screw	M12 X 45
25	T55458	1	SHAFT	(18 TEETH)
26	JD7788	1	Lubrication Fitting	1/4", (SUB FOR JD7842, THIS APPLICATION)
27	R77343	1	UNIVERSAL JOINT YOKE	FRONT
27	R94490	1	UNIVERSAL JOINT YOKE	-
28	AT74269	1	CROSS AND BEARING ASSEMBLY	-
29	T66731	4	SCREW	-
