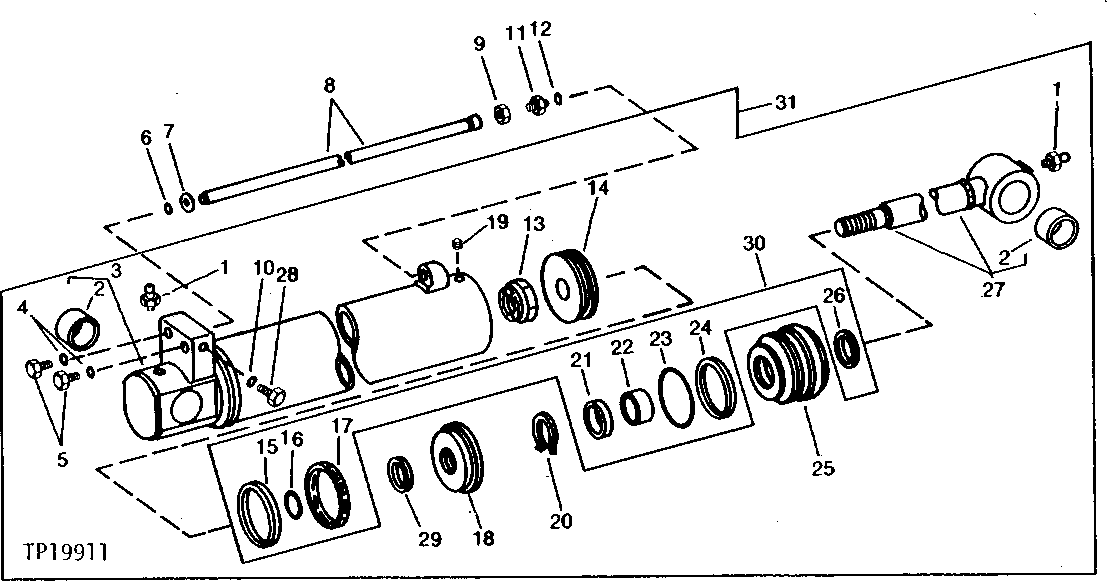

GRAPPLE CYLINDER (SERIAL NO. -405023) [02J17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	2	Lubrication Fitting	STRAIGHT, 1/4"
2	U40305	4	Bushing	-
3	AR89732	1	HYDRAULIC CYLINDER BARREL	WITH HEAD AND BUSHING
3	AT49984	1	HYDRAULIC CYLINDER BARREL	WITH HEAD AND BUSHING, (SUB AR89732)
4	R26448	2	O-Ring	-
5	R27218	2	Fitting Plug	-
6	R394R	1	O-Ring	-
7	N132177	1	Back-Up Ring	-
8	T51552	1	LINE	-
9	R27274	1	FITTING PLUG	FLARE
10	R26286	1	O-Ring	-
11	R27237	1	Fitting	-
12	R26375	1	O-Ring	-
13	L2235CU	1	LOCK NUT	-
13	U44586	1	LOCK NUT	-
14	U42713	1	PISTON	-
14	T43577	1	PISTON	-
15	U42719	1	WEAR RING	-
16	U46335	1	O-Ring	(SUB FOR R29463 AND R31378, THIS APPLICATION)
17	T54813	1	PACKING	-
18	U42714	1	PISTON	-
18	T43576	1	PISTON	-
19	22H842	1	SET SCREW	1/4" X 5/16"
20	W11229	1	RING	-
21	R76790	1	PACKING	(SUB FOR T35851)
22	U42716	1	WEAR RING	-
23	T12275	1	O-Ring	-
24	R78815	1	BACK-UP RING	(SUB FOR U42720, THIS APPLICATION)
25	R80954	1	GUIDE	(SUB FOR U42725)
26	U11022	1	SEAL	WIPER
27	AT49985	1	ROD	PISTON, WITH BUSHINGS
27	AR89733	1	ROD	PISTON, WITH BUSHINGS
28	R27094	1	Drain Plug	-
29	R68835	1	WASHER	-
30	AT52707	1	KIT	(SUB AR105346)
30	AR105346	1	HYDRAULIC CYLINDER KIT	(SUB FOR AR89749)
31	AR89731	1	CYLINDER	GRAPPLE, (SUB FOR AT49983)

GRAPPLE CYLINDER (SERIAL NO. -405023) [02J17]
