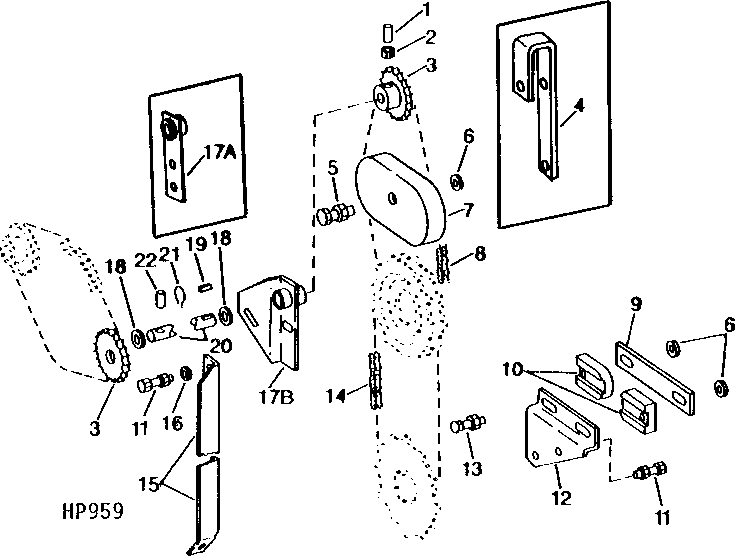

Variable Speed Cylinder Control, Separator Side

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H892	2	Set Screw	1/4" X 5/8"
2	14H850	1	NUT	1/4"
3	H89035	2	Chain Sprocket	-
3	AH101521	1	Chain Sprocket	Z = 14
3	H84541	2	Chain Sprocket	SUB FOR H76501
4	AH80954	1	Bracket	SUB FOR H76531
5	03H1505	1	Bolt	5/16" X 1-3/4", USE WITH 14H785
6	24H1305	3	Washer	13/32" X 13/16" X 0.065"
7	H76518	1	Tightener	-
8	-	1	Part 11	13 MM (1/2"), TYPE 65, PITCH, 58 LINKS (ASSEMBLE FROM (55) LINKS OF AB18594, AB14025, AND (2) AB17232)
8	H87036	1	Cotter Pin	-
8	H78973	1	Pin Fastener	-
8	H78972	1	Clip	-
8	SW35OLUS	1	Chain Link	SUB FOR AH77090
8	SW35COUS	1	Chain Link	SUB FOR AH77091
8	-	1	Part 10	10 MM (3/8"), PITCH ROLLER CHAIN, 77 LINKS (ASSEMBLE FROM (75) LINKS OF AH168527, SW35OLUS, AND SW35COUS)
9	H96911	1	Strap	-
10	P47883	2	Tightener	-
11	19H1731	2	Cap Screw	3/8" X 1", USE WITH 14H812
12	H82542	1	Bracket	-
13	03H2020	2	Bolt	3/8" X 2", USE WITH 14H812
14	-	1	Part 22	10 MM (3/8"), PITCH ROLLER CHAIN, 154 LINKS (ASSEMBLE FROM (151) LINKS OF AH168527, (2) SW35OLUS, AND SW35COUS)
14	-	1	Part 23	13MM (1/2") PITCH, TYPE 65, 116 LINKS (ASSEMBLE FROM (115) LINKS OF AB18594 AND AB14025)
14	SW35COUS	1	Chain Link	SUB FOR AH77091
14	SW35OLUS	1	Chain Link	SUB FOR AH77090
14	H78972	1	Clip	-
14	H78973	1	Pin Fastener	-
15	H86170	1	Support	-
16	24H1305	2	Washer	13/32" X 13/16" X 0.065"
18	24H1368	2	Washer	21/32" X 1-5/16" X 0.090"
19	U46425	1	SHAFT KEY	-
20	H101822	1	Shaft	SUB FOR H76528, USE WITH AH101521, U46428, U46425, 22H892 AND 24H1368
21	11H224	1	Cotter Pin	1/8" X 1-1/4"
22	34H283	1	Spring Pin	3/16" X 1-1/8"
17A	AH78546	1	Reinforcement	ORDER AH80954
17B	AH80954	1	Bracket	-
