STRAW CHOPPER DRIVE IDLER AND TIGHTENER ( - 201250)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH85276	1	Idler	229 MM (9") DIA.
2	AH101206	1	Arm	(SUB FOR AH79057 OR AH83828)
3	19H2602	2	Cap Screw	5/8" X 2-5/8", (USE WITH 12H294 AND 14H821)
4	11M7038	1	Cotter Pin	6.300 X 40 mm
5	P50955	1	Bushing	-
5	H94114	1	Bushing	-
6	AH101208	1	Support	(SUB FOR AH79059 OR AH83335)
7	19H1905	1	Cap Screw	5/16" X 1", (USE WITH 14H785)
8	JD7788	2	Lubrication Fitting	45°, 1/4"
9	19H1900	3	Cap Screw	5/16" X 3/4", (USE WITH 14H785)
10	24H1274	1	Washer	49/64" X 1-1/4" X 0.048"
10	R73380	1	Snap Ring	(SUB FOR A369R)
11	H83756	1	Strap	(SUB FOR H79677)
14	AH80240	1	Pin Fastener	-
15	H98655	2	Bushing	-
15	P47216	2	BUSHING	-
15	P50955	2	Bushing	-
16	AH80893	1	Arm	(USE WITH AH101205) (SUB FOR AH77915)
17	24H1305	1	Washer	13/32" X 13/16" X 0.065"
18	H79676	1	Pin Fastener	-
19	11M7084	1	Cotter Pin	5 X 25 mm
20	JD9338	2	Ball Bearing	-
21	24H1682	1	Washer	13/32" X 7/8" X 0.120"
22	P42232	2	Snap Ring	-
23	H78743	1	Idler	233 MM (9-3/16") DIA.
24	24H1483	1	Washer	1-3/16" X 2-1/4" X 0.134"
25	AN15237	1	Idler	202 MM (7-5/16") DIA.
26	19H1731	1	Cap Screw	3/8" X 1", (USE WITH BP12233)
27	H86646	1	Spring	(SUB FOR H76585)
29	19H1913	2	Cap Screw	5/16" X 2-1/4", (USE WITH 14H785)
30	28H1016	2	Spacer	0.742" X 1.050" X 1"
31	H77931	1	SCREW	(SUB FOR H81101), SELF-TAPPING
32	24H1413	1	Washer	57/64" X 1-3/8" X 0.048"
12A	19H2284	4	Cap Screw	3/8" X 7/8", (USE WITH 14H812)
12B	03H1631	2	Bolt	3/8" X 3-1/2", (USE WITH 14H812)
13A	AH78547	1	Shaft	(SUB AH80891 AND AH80893)
13B	AH101205	1	Pivot	(USE WITH AH80893) (SUB FOR AH80891)
28A	AH77637	1	Support	-
28B	H82798	1	Support	-

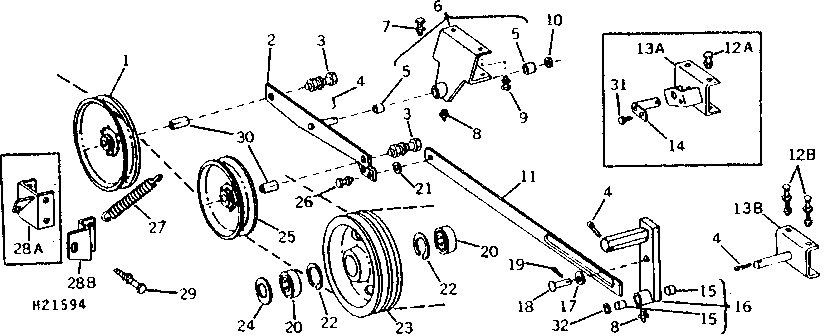

STRAW CHOPPER DRIVE IDLER AND TIGHTENER ( - 201250)
