Открытый узел

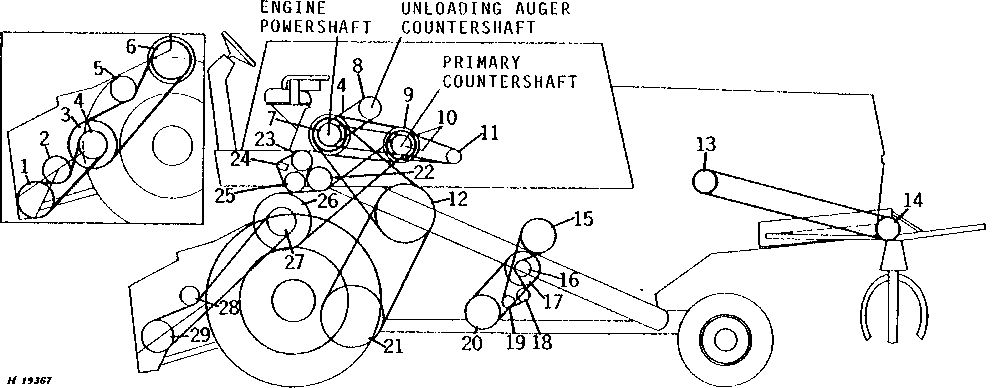

SHEAVES, SPROCKETS, AND TIGHTENERS ON L.H. SIDE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H76851	1	Pulley	289 MM (11-3/8") DIA, (DRIVEN, PLATFORM AND FEEDER HOUSE VARIABLE BELT LOWER (LONG FEEDER HOUSE)
1	H76849	1	Pulley	292 MM (11-1/2") DIA, (DRIVEN, PLATFORM AND FEEDER HOUSE VARIABLE BELT LOWER)
2	AH86835	1	Idler	165 MM (6-1/2") DIA, (TIGHTENER, PLATFORM AND FEEDER HOUSE VARIABLE DRIVE LOWER BELT)
2	H79489	1	Idler	165 MM (6-1/2") DIA., (TIGHTENER, PLATFORM AND FEEDER HOUSE VARIABLE DRIVE LOWER BELT)
3	AH84613	1	Pulley	(SUB FOR AH77256, AH77257, AH83397 OR AH83817)
4	H76848	1	Pulley	216 MM (8-1/2") DIA, (DRIVE, PLATFORM AND FEEDER HOUSE VARIABLE BELT MIDDLE)
5	AH85276	1	Idler	229 MM (9") DIA., (TIGHTENER, PLATFORM AND FEEDER HOUSE VARIABLE DRIVE MIDDLE BELT)
6	AH84613	1	Pulley	(SUB FOR AH77257, AH83397, AH77255 OR AH83817)
7	H84106	1	Pulley	(SUB FOR H80805 OR H82174)
8	AH75984	1	Pulley	245 MM (9-5/8") DIA, (DRIVEN, UNLOADING AUGER COUNTERSHAFT)
9	H77390	1	Pulley	-
9	H96848	1	Pulley	402 MM (15-53/64") DIA, (DRIVEN, PRIMARY COUNTERSHAFT)
10	H77392	1	Pulley	229 MM (9") DIA, (DRIVE, PLATFORM AND FEEDER HOUSE AND HYDRO. DRIVE REEL PUMP) (W/O ELECTROMAGNETIC CLUTCH)
10	AH96107	1	Pulley	229 MM (9") DIA, (DRIVE, PLATFORM AND FEEDER HOUSE AND HYDRO. DRIVE REEL PUMP) (W/ELECTROMAGNETIC CLUTCH) (MARKED H97311)
10	AH76192	1	Pulley	-
11	AH83518	1	Pulley	(SUB FOR H77681)
12	H75855	2	Pulley	-
12	H112547	2	Half Sheave	397 MM (15-5/8") DIA, (PROPULSION COUNTERSHAFT)
12	AH85700	1	Center Sheave	(SUB FOR AH75362)
13	AH75982	1	Pulley	238 MM (9-3/8") DIA, (DRIVE, STRAW SPREADER)
14	AH108938	1	Pulley	(SUB FOR AH75981)
15	H76434	1	Chain Sprocket	49 TEETH, (DRIVE, STRAW WALKER)
16	AH84242	1	Chain Sprocket	(SUB FOR H80388)
17	H80724	1	Half Sheave	-
17	H100794	2	Half Sheave	(SUB FOR AH78925, AH87209 OR AH100010) (USE WITH A4730R AND JD7798)
18	AH21440	1	Idler Sprocket	17 TEETH, (TIGHTENER, SHOE AND STRAW WALKER DRIVE)
19	H78523	1	Chain Sprocket	27 TEETH, (DRIVEN, SHOE PITMAN)
20	H97703	1	Half Sheave	(SUB FOR H75015) (USE WITH 34H307 AND 34H357) CLEANING FAN, DRIVEN, OUTER
20	AH173726	1	Half Sheave	(USE WITH N137598) (SUB FOR AH75844 OR AH100009) (MARKED H178856) CLEANING FAN, DRIVEN, INNER
21	H75262	1	Pulley	356 MM (14") DIA, (DRIVEN, LOWER PROPULSION)
21	H75833	1	Pulley	356 MM (14") DIA, (DRIVEN, LOWER PROPULSION)
22	AH85276	1	Idler	229 MM (9") DIA, (TIGHTENER, PLATFORM AND FEEDER HOUSE UPPER DRIVE)
23	H78297	1	Chain Sprocket	14 TEETH, (DRIVE, UPPER TAILINGS AUGER)
24	P47883	1	Tightener	(TAILINGS UPPER AUGER DRIVE)
25	PK1613H	1	Chain Sprocket	12 TEETH, (DRIVEN, UPPER TAILINGS AUGER)
26	AH75979	1	Pulley	440 MM (7-5/16") DIA, (DRIVEN, PLATFORM AND FEEDER HOUSE UPPER CHAIN)
27	H77967	1	Chain Sprocket	18 TEETH, (DRIVE, PLATFORM AND FEEDER HOUSE LOWER CHAIN)
28	AH20447	1	Idler Sprocket	12 TEETH, (TIGHTENER, PLATFORM AND FEEDER HOUSE CHAIN DRIVE), INCLUDES JD9295
28	JD9295	1	Ball Bearing	-
29	H77951	1	Chain Sprocket	29 TEETH, (DRIVEN, PLATFORM AND FEEDER HOUSE CHAIN)
29	H77950	1	Chain Sprocket	18 TEETH, (DRIVEN, PLATFORM AND FEEDER HOUSE CHAIN)
29	H77979	1	Chain Sprocket	22 TEETH, (DRIVE, FEEDER CONVEYOR)

SHEAVES, SPROCKETS, AND TIGHTENERS ON L.H. SIDE
