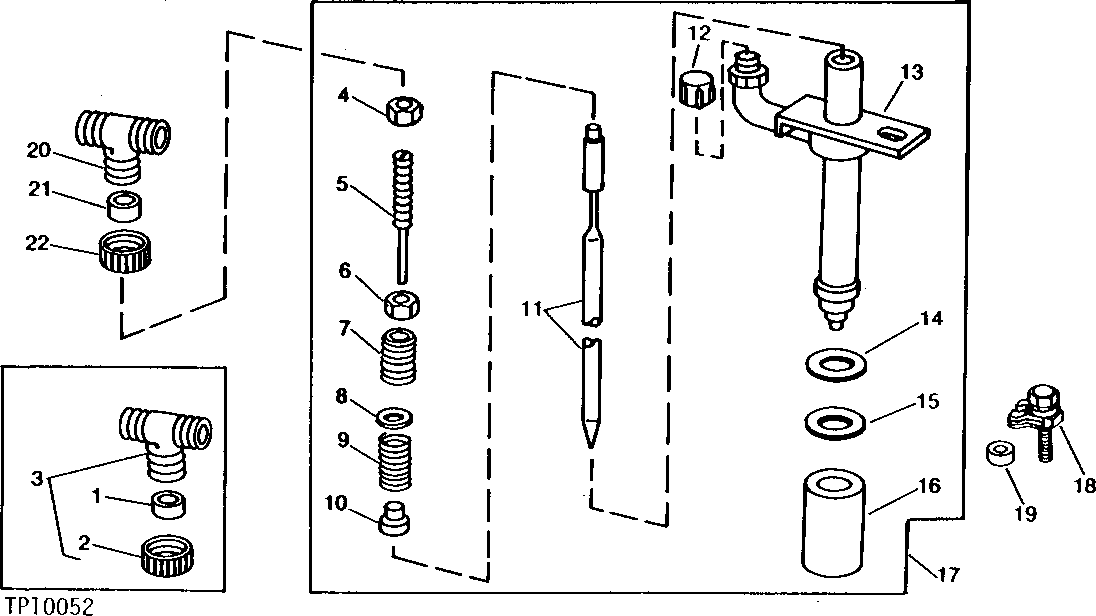

REPLACEMENT FUEL INJECTION NOZZLE ASSEMBLY

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R79605	1	Washer	(SUB FOR T29539)
2	R79604	1	Tube Nut	(SUB FOR T29540)
3	AT27622	1	CAP	-
3	R79604	1	Tube Nut	(USE WITH R79605 AND R79606) (SUB FOR AR85618)
4	R47733	1	LOCK NUT	-
5	R69443	1	SCREW	-
6	R46675	1	NUT	-
7	R62984	1	SCREW	-
8	R62981	1	WASHER	-
9	R69442	1	SPRING	-
10	R62982	1	GUIDE	-
10	SE500823	1	NOZZLE	(PKG OF 6), (REMANUFACTURED FOR AR89564)
10	SE501099	1	NOZZLE	(PKG OF 1), (REMANUFACTURED FOR AR89564)
11	AR89564	1	INJECTION NOZZLE	-
12	T31174	1	Cap	(USE FOR SERVICING NOZZLE)
13	R67779	1	CLAMP	-
14	R34764	1	WASHER	(SUB RE32011, THIS APPLICATION)
14	R60746	1	WASHER	(KIT <service-part>RE32011</service-part>) (USE AFTER RE32011 HAS BEEN INSTALLED)
15	R48000	1	Seal	-
16	T24472	1	Cap	-
17	AR89564	1	INJECTION NOZZLE	(ROOSA-MASTER NO. 22202)
17	SE501099	1	NOZZLE	(PKG OF 1), (REMANUFACTURED FOR AR89564)
17	SE500823	1	NOZZLE	(PKG OF 6), (REMANUFACTURED FOR AR89564)
18	R34760	1	CLAMP	WITH SCREW AND WASHER
19	RE32011	1	O-Ring Kit	(SUB RE32011, THIS APPLICATION) (SUB FOR R34761)
19	R60745	1	SPACER	(KIT <service-part>RE32011</service-part>) (USE AFTER RE13887 HAS BEEN INSTALLED)
20	R79606	1	Tee Fitting	-
21	R79605	1	Washer	-
22	R79604	1	Tube Nut	-

REPLACEMENT FUEL INJECTION NOZZLE ASSEMBLY

Нет текстового описания
