Открытый узел

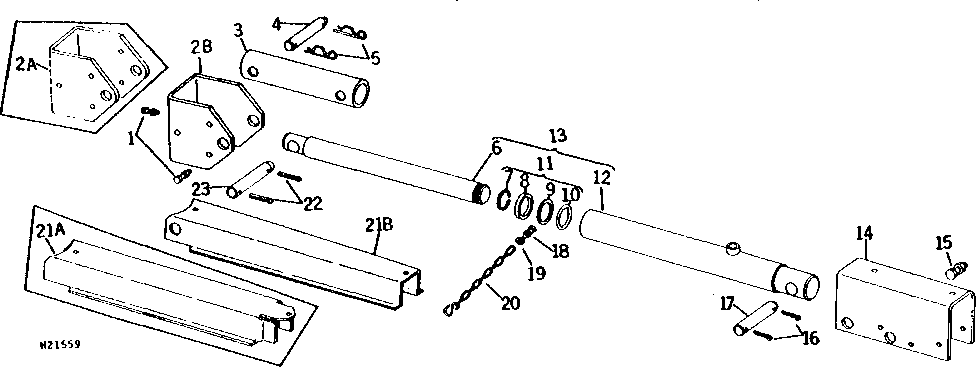

PLATFORM LIFT CYLINDER, BRACKETS, AND SAFETY STOP

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	4	Cap Screw	3/8" X 1", (USE WITH 14H812)
3	H79553	1	Extension	-
3	H91708	1	Extension	(LONG FEEDER HOUSE)
3	AH96699	1	Extension	(LONG FEEDER HOUSE)
4	H112109	1	Pin	(SUB FOR H80265 OR H95041)
5	28316	2	Spring Locking Pin	-
5	H95042	2	Cotter Pin	5.639 X 44.450 mm (0.222" X 1-3/4")
6	-	1	Part 10	(SUB AH75409)
7	-	1	Part 11	(SUB AH78774)
8	-	1	Part 12	(SUB AH78774)
9	-	1	Part 13	(SUB AH78774)
10	-	1	Part 14	(SUB AH78774)
11	AH78775	1	Seal Kit	(FOR AH89362 CYLINDER)
11	AH78774	1	Seal Kit	(FOR AH75409 CYLINDER)
12	-	1	Part 17	(SUB AH75409)
13	AH75409	1	Hydraulic Cylinder	-
13	AH89362	1	Hydraulic Cylinder	-
14	H76107	1	Bracket	-
14	AH90872	1	Bracket	-
14	AH101491	1	Bracket	-
14	AH112374	1	Bracket	(R.H.)
14	AH112375	1	Bracket	(SUB FOR AH101492)
15	19H2898	3	Cap Screw	1/2" X 1-1/4", (USE WITH 12H301 AND 14H1040)
16	H95042	2	Cotter Pin	5.639 X 44.450 mm (0.222" X 1-3/4")
17	H148930	1	Pin	(SUB FOR P46196, W25142, W42110 OR H99086)
18	19H1900	1	Cap Screw	5/16" X 3/4", (USE WITH 14H785)
19	24H1136	1	Washer	11/32" X 11/16" X 0.065"
20	AH80055	1	Link Chain	(WITH FLOAT SPRINGS)
20	AH20203	1	Link Chain	(WITHOUT FLOAT SPRINGS)
22	H95042	2	Cotter Pin	5.639 X 44.450 mm (0.222" X 1-3/4")
23	H148930	1	Pin	(SUB FOR H28802 OR H99086)
2A	H77535	1	Bracket	(SUB H117900)
2B	H117900	1	Bracket	(SUB FOR H83634), FRONT
21A	H79552	1	Stop	-
21B	H83969	1	Stop	(LEFT-HAND SIDE)
21B	H88237	1	Stop	-

PLATFORM LIFT CYLINDER, BRACKETS, AND SAFETY STOP
