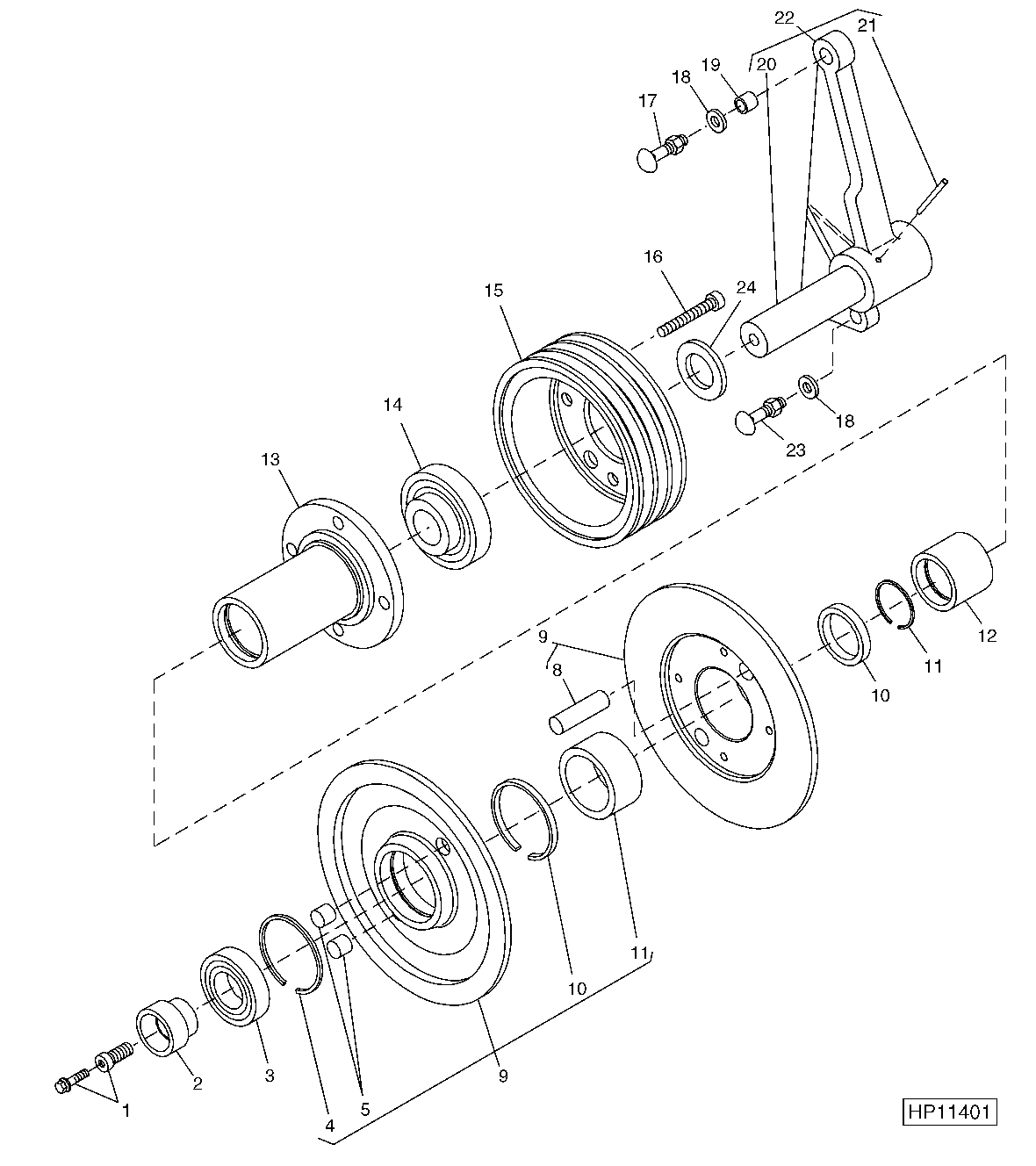

Lower Countershaft, Sheaves for Platform and Feeder House Variable Belt Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	1	Lubrication Fitting	-
2	H85652	1	Hub	(SUB FOR H77268)
3	JD9406	1	Ball Bearing	-
4	H83285	1	Snap Ring	-
4	H83285	2	Snap Ring	-
5	H82457	2	Bushing	(SUB FOR H79405)
5	H82457	4	Bushing	-
6	H75691	1	Bushing	-
7	AH84613	1	Pulley	(SUB FOR AH77257, AH83397 OR AH83817)
8	H79404	2	Pin Fastener	-
8	H79404	4	Pin Fastener	-
9	AH83816	1	Pulley	(SUB FOR AH77256), (SUB AH83816 SERIAL NO. 6501 AND UP; SUB AH83816 AND AH83817 PRIOR TO SERIAL NO. 6501)
10	H25051	1	Seal	-
11	E1343FN	1	Snap Ring	-
12	JD9878	1	NEEDLE BEARING	-
13	H84449	1	Hub	(SUB FOR H79403 OR H83286)
14	JD9301	1	Ball Bearing	-
15	H76848	1	Pulley	216 MM (8-1/2") DIA
15	H86021	1	Pulley	226 MM (8-27/32") DIA, (LONG FEEDER HOUSE)
16	19H1765	1	Cap Screw	3/8" X 1-3/4"
17	03H1629	1	Bolt	5/8" X 2-1/4", (USE WITH 12H294 AND 14H1039)
18	24H1305	4	Washer	13/32" X 13/16" X 0.065"
19	U40538	1	Bushing	-
20	H76852	1	Pin	(SUB AH75821, THIS APPLICATION)
21	34H386	1	Spring Pin	1/4" X 2"
22	AH109096	1	Shaft	(USE WITH U40538) (SUB FOR AH75821, AH90710 OR AH96810)
22	AH84897	1	Support	(MARKED H80226)
23	03H1439	2	Bolt	1/2" X 1-3/4", (USE WITH 14H1040)
24	24H1669	1	Washer	1-25/64" X 2-1/8" X 0.075"

Lower Countershaft, Sheaves for Platform and Feeder House Variable Belt Drive
