Открытый узел

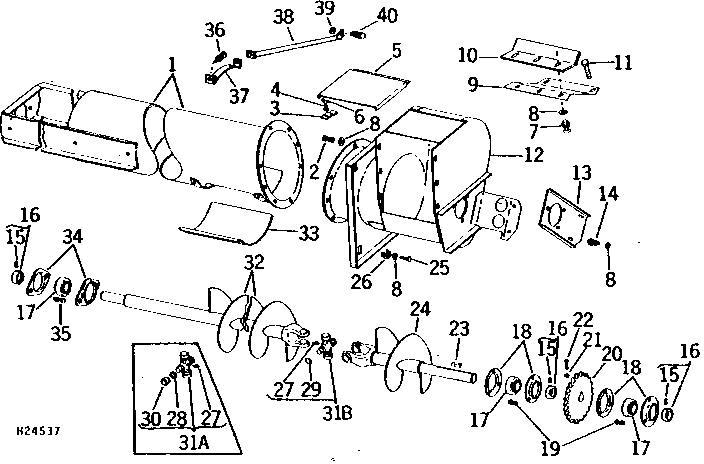

LOADING AUGER AND HOUSING ( - 151500)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH78201	1	Housing	-
2	19H1813	8	CAP SCREW	5/16" X 5/8", (USE WITH 14H785)
3	P47159	1	Clip	-
4	03H1540	1	Bolt	5/16" X 3/4"
5	H78452	1	Door	-
6	14H819	1	Wing Nut	5/16"
7	19H1900	3	Cap Screw	5/16" X 3/4", (USE WITH 14H785)
8	24H1136	25	Washer	11/32" X 11/16" X 0.065"
9	H77506	1	Reinforcement	-
9	H83894	1	Reinforcement	-
10	H84885	1	Angle	-
11	H65108	1	Screw	-
12	AH88992	1	Spout	(USE WITH H83896) (SUB FOR AH76253, AH83976 OR AH83907)
13	H77037	1	Bracket	-
14	03H1540	2	Bolt	5/16" X 3/4", (USE WITH 14H785)
15	22H897	3	Set Screw	1/4" X 1/4"
16	JD8554	3	Eccentric Locking Collar	-
17	JD8665	3	Ball Bearing	(SUB FOR JD8555)
18	H103264	4	Pressed Flanged Housing	(SUB FOR P46463 OR H87472)
19	03H1539	6	Bolt	5/16" X 5/8", (USE WITH 14H785)
20	H77059	1	Chain Sprocket	16 TEETH
21	14H732	2	Nut	3/8"
22	22H853	2	Set Screw	3/8" X 7/8"
23	-	1	Part 24	6 MM X 6 MM X 35 MM (1/4" X 1/4" X 1-3/8), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
24	AH84813	1	Auger	(SUB FOR AH77942 OR AH83348)
25	19H1905	4	Cap Screw	5/16" X 1"
26	P48289	4	Nut	-
27	JD7763	1	Lubrication Fitting	45°, 1/4"
28	AE793E	4	Cross And Bearing Assembly	(SUB FOR E4297E)
29	E4298E	4	Snap Ring	-
30	AE793E	4	Cross And Bearing Assembly	(SUB FOR E4296E)
32	AH84816	1	Auger	(SUB FOR AH78204 OR AH81109)
33	H77053	1	Door	-
34	P44439	2	PRESSED FLANGED HOUSING	(USE WITH 14H785)
35	19H1900	2	Cap Screw	5/16" X 3/4", (USE WITH 14H785)
36	03H1540	2	Bolt	5/16" X 3/4", (A) (USE WITH 14H785)
37	H86191	1	Brace	(A) (LOADING AUGER EXTENSION)
38	H86193	1	Pipe	(A) REAR
38	H86192	1	Brace	(A) FRONT
39	24H1136	1	Washer	11/32" X 11/16" X 0.065", (A)
40	19H1900	2	Cap Screw	5/16" X 3/4", (A) (USE WITH 14H785)
31A	AH79074	1	Universal Joint	(SUB AE793E)
31B	AE793E	1	Cross And Bearing Assembly	(SUB FOR AH83541)

LOADING AUGER AND HOUSING ( - 151500)
