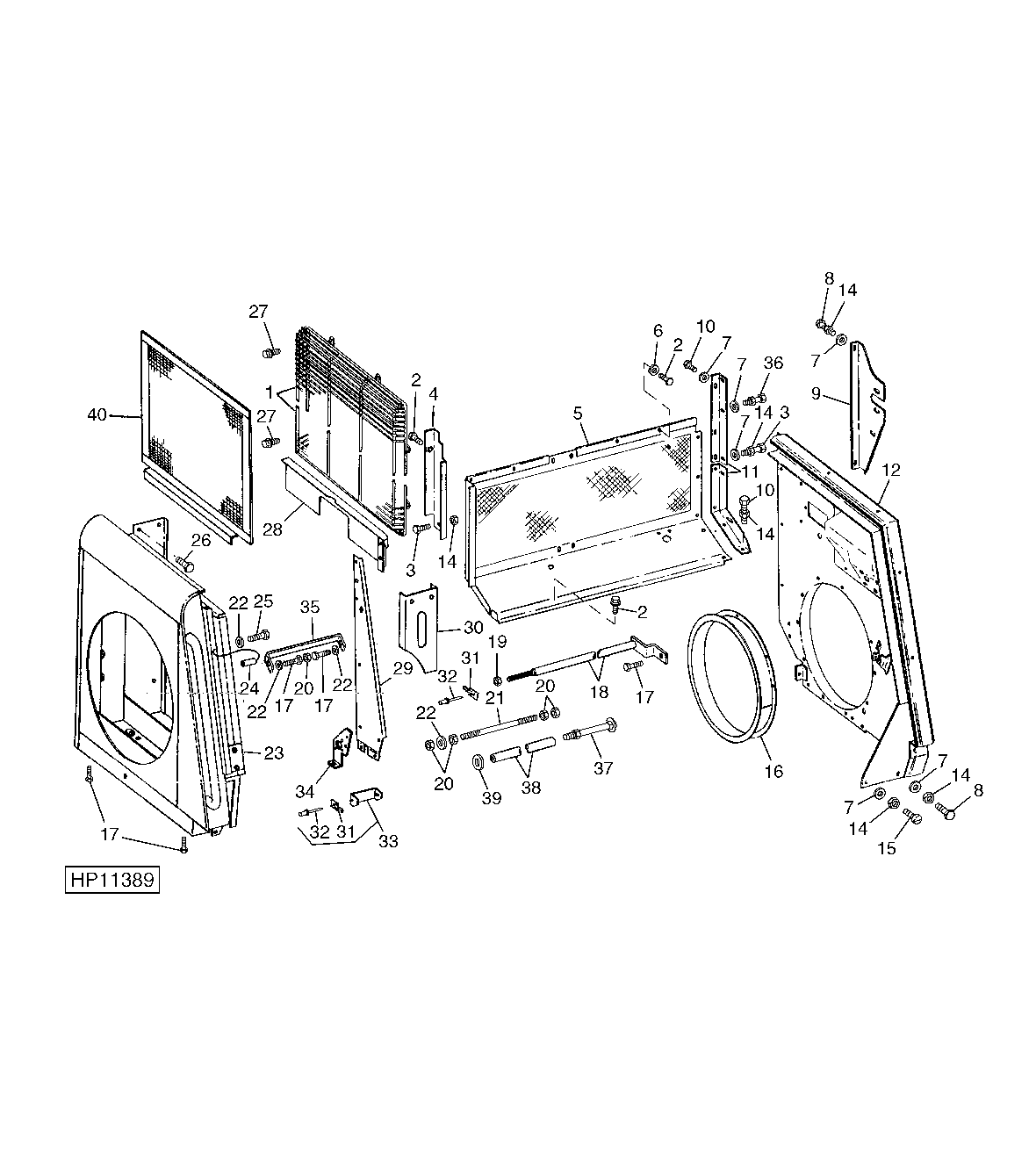

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL ( - 101300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH83432	1	Grille	(DIESEL)
1	AH79227	1	Grille	-
2	H65108	1	Screw	SELF-TAPPING
3	19H1813	4	CAP SCREW	5/16" X 5/8"
4	H79389	1	Extension	R.H.
5	AH85486	1	Sheet	-
6	24M7207	3	Washer	8.400 X 24 X 2 mm
7	24H1136	12	Washer	11/32" X 11/16" X 0.065"
8	19H1900	1	Cap Screw	5/16" X 3/4"
9	H80160	1	Bracket	-
10	19H1905	2	Cap Screw	5/16" X 1"
11	H78070	1	Angle	-
11	H84581	1	Angle	-
12	AH76576	1	Partition	-
12	AH81747	1	Partition	-
13	H76478	8	Screw	-
14	14H785	1	Nut	5/16"
15	21H1304	1	Screw	5/16" X 3/4"
16	H78080	1	Seal	-
17	19H1936	2	Cap Screw	3/8" X 3/4"
18	AH79067	1	Rail	-
19	14H1040	2	Nut	1/2", (USE WITH 12H301)
20	14H812	4	NUT	3/8"
21	H83346	1	Stud	-
21	H81357	1	Stud	-
21	H79232	1	Stud	-
22	24H1305	2	Washer	13/32" X 13/16" X 0.065", (GASOLINE)
23	AH79229	1	Shroud	-
23	AH81743	1	Shroud	(SUB AH83911 FOR GASOLINE OR AH83443 FOR DIESEL)
23	AH83443	1	Shroud	(DIESEL)
23	AH83911	1	Shroud	(GASOLINE) (REQUIRES (2) AP23835)
24	28H1673	1	Bushing	0.493" X 0.675" X 4-3/16"
25	19H2104	1	Cap Screw	3/8" X 5"
26	19H2020	2	Cap Screw	5/16" X 1/2"
27	H76139	1	Screw	(DIESEL)
28	AH83437	1	Support	(DIESEL)
29	H83319	1	Support	(DIESEL)
30	AH87705	1	Support	(SUB FOR AH77685), (DIESEL)
31	AP23835	2	Latch	(USED WITH AH83911 SHROUD)
32	H62547	2	Rivet	-
33	AH83451	1	Clip	(DIESEL)
34	AH83456	1	Support	-
35	H83408	1	Bracket	(DIESEL)
36	19H2127	1	Cap Screw	5/16" X 7/8"
37	03H2247	1	Bolt	5/16" X 9-1/2", (GASOLINE)
38	28H3290	1	Bushing	0.364" X 0.540" X 8-13/32", (GASOLINE)
39	24H1308	4	Washer	13/32" X 1" X 0.134", (GASOLINE)
40	AH83915	1	Screen	(CORN)

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL ( - 101300)
