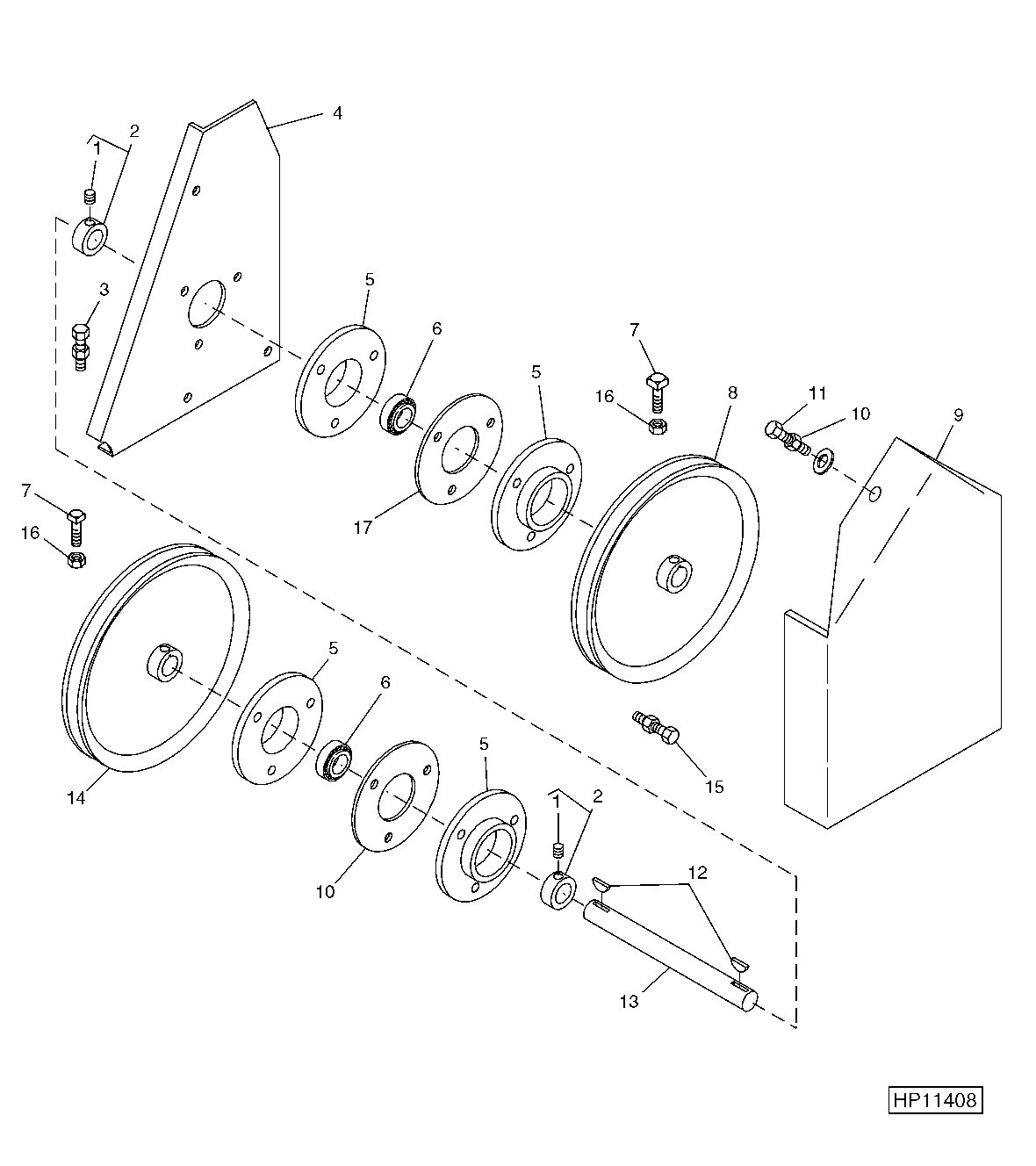

ENGINE FAN DRIVE COUNTERSHAFT ( - 101300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	2	Set Screw	1/4" X 1/4"
2	JD9218	2	Eccentric Locking Collar	-
2	JD8554	2	Eccentric Locking Collar	-
3	19H1731	2	Cap Screw	3/8" X 1", (USE WITH 14H812)
4	H79243	1	Support	GASOLINE (WITHOUT AIR CONDITIONER)
4	AH85837	1	Support	GASOLINE
4	H81718	1	Support	-
4	H79243	1	Support	DIESEL (WITHOUT AIR CONDITIONER)
5	H24630	4	Pressed Flanged Housing	-
5	P47232	4	PRESSED FLANGED HOUSING	-
5	H103264	4	Pressed Flanged Housing	(SUB FOR H87472)
6	JD9217	2	Ball Bearing	-
6	JD8665	2	Ball Bearing	(SUB AH169077, THIS APPLICATION AND H36155) (SUB FOR JD8555)
6	AH169077	2	Ball Bearing	(SUB FOR JD9273) (SUB AH214862), (USE H36155 PRIOR TO SERIAL NO. 101300)
6	AH214862	2	Ball Bearing	-
7	22H836	4	Set Screw	3/8" X 1"
8	AH77175	1	Pulley	-
8	AH82233	1	Pulley	-
9	H79244	1	Shield	GASOLINE (WITHOUT AIR CONDITIONER)
9	H81719	1	Shield	-
9	H79244	1	Shield	DIESEL (WITHOUT AIR CONDITIONER)
10	24H1136	1	Washer	11/32" X 11/16" X 0.065"
11	19H1900	4	Cap Screw	5/16" X 3/4", (USE WITH 14H785)
12	26H85	2	Shaft Key	1/4" X 1"
13	H83038	1	Countershaft	(SUB FOR H79231, AH82235 OR AH82234) (USE WITH AH82232, AH82233, H103264, JD8554 AND JD8665)
13	H83036	1	Countershaft	(CONSISTS OF AH82232, AH82233, (2) JD8554, (2) JD8555, (4) P47232, (4) 14H732, (4) 22H836 AND (2) 26H22)
13	H84402	1	Countershaft	-
13	AH82232	1	Pulley	(USE WITH AH82233, (4) 14H732, (4) 22H836 AND (2) 26H85) (SUB FOR AH82234)
14	AH77171	1	Pulley	165 MM (6-1/2") DIA.
14	AH82232	1	Pulley	165 MM (6-1/2") DIA
15	19H2127	3	Cap Screw	5/16" X 7/8", (USE WITH 14H785)
16	14H732	4	Nut	3/8"
17	H36155	2	Shim	-

ENGINE FAN DRIVE COUNTERSHAFT ( - 101300)
