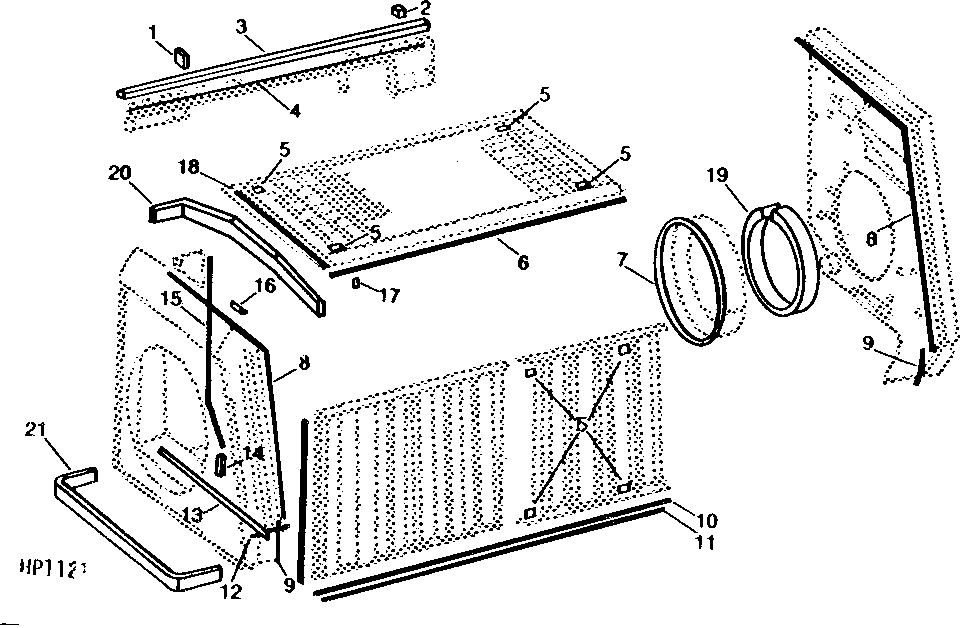

ENGINE COMPARTMENT SEALS AND RUBBER CUSHIONS ( - 101300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H79367	1	Seal	-
2	H79307	1	Isolator	-
3	-	1	Part 3	DOOR, UPPER (CUT FROM H81326)
4	-	1	Part 4	DOOR, UPPER (CUT FROM H81825)
5	-	8	Part 5	(CUT FROM H81330)
6	-	1	Part 6	DOOR, MIDDLE (CUT FROM H81825)
7	-	1	Part 7	(GASOLINE) (CUT FROM H85782)
7	H81350	1	Seal	(DIESEL)
8	-	2	Part 9	MIDDLE DOOR, R.H. AND L.H. (CUT FROM H81825)
9	-	1	Part 10	MIDDLE DOOR, R.H. AND L.H. (CUT FROM H81825)
10	-	1	Part 11	MIDDLE DOOR, FRONT (CUT FROM H82474)
11	-	1	Part 12	MIDDLE DOOR, LOWER (CUT FROM H82474)
12	-	1	Part 13	FAN SHROUD (CUT FROM H81825)
13	-	2	Part 14	RADIATOR (CUT FROM H81325)
14	-	1	Part 15	ENGINE RAIL (CUT FROM H81325)
15	-	1	Part 16	CLOSURE SHEET (CUT FROM H88769)
16	-	1	Part 17	(CUT FROM H81332)
17	-	1	Part 18	UPPER DOOR, FRONT (CUT FROM H81825)
18	-	1	Part 19	LOUVER, FRONT (CUT FROM H81330)
19	AH85910	1	Isolator	(DIESEL)
20	-	1	Part 21	19 MM X 45 MM X 914 MM (3/4" X 1-3/4" X 36"), RADIATOR, TOP (CUT FROM H92017)
21	-	1	Part 22	19 MM X 45 MM X 965 MM (3/4" X 1-3/4" X 38"), RADIATOR, BOTTOM (CUT FROM H92017)
99	H85782	1	Seal	(SUB FOR H85782)
99	H88769	1	Isolator	(SUB FOR H81324)

ENGINE COMPARTMENT SEALS AND RUBBER CUSHIONS ( - 101300)
