ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS ( - 101300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	11	Cap Screw	3/8" X 1", (USE WITH 14H812)
2	AH77020	1	Angle	L.H., STEERING COLUMN
3	21H1137	1	Screw	5/16" X 1-1/4"
4	AH77025	1	Angle	R.H., STEERING COLUMN
5	AH106724	1	Grate	(SUB FOR AH96370)
5	H81688	1	Spring	(SUB FOR AH77026)
6	21H1331	16	SCREW	5/16" X 1"
7	H78809	1	Angle	FRONT, R.H.
8	19H1900	6	Cap Screw	5/16" X 3/4"
9	H78808	1	Angle	CROSS, FRONT
10	19H1813	4	CAP SCREW	5/16" X 5/8"
11	H94255	1	Tube	(SUB FOR H83478 OR H79382)
11	H84403	1	Sheet	(SUB FOR H83324)
11	H83472	1	Sheet	DECK, ENGINE (GASOLINE)
11	H81348	1	Sheet	DECK, ENGINE (DIESEL)
12	19H1936	1	Cap Screw	3/8" X 3/4", (USE WITH 14H812)
13	H76139	2	Screw	SELF-TAPPING
14	19H1792	2	Cap Screw	1/2" X 1", (USE WITH 14H1040 AND 12H301)
15	21H1347	3	Screw	5/16" X 5/8"
16	H78641	1	Strap	-
17	AH84851	1	Support	(SUB FOR AH77166 OR AH83444)
18	H78639	1	Angle	-
18	H83321	1	Angle	-
18	H86687	1	Angle	(DIESEL)
19	H79283	1	Rail	ENGINE (GASOLINE)
19	H83344	1	Rail	ENGINE (DIESEL)
20	19H1815	3	Cap Screw	1/2" X 1-1/4", (USE WITH 14H1040 AND 12H301)
21	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
22	AH81104	1	Cover	-
22	H82617	1	Sheet	L.H.
22	H79379	1	Sheet	-
23	21H1304	1	Screw	5/16" X 3/4"
24	H78827	1	Angle	L.H.
25	19H1732	2	Cap Screw	3/8" X 1-1/4"
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	AH83452	1	Angle	-
28	H85055	1	Seal	-
29	14H785	1	Nut	5/16"

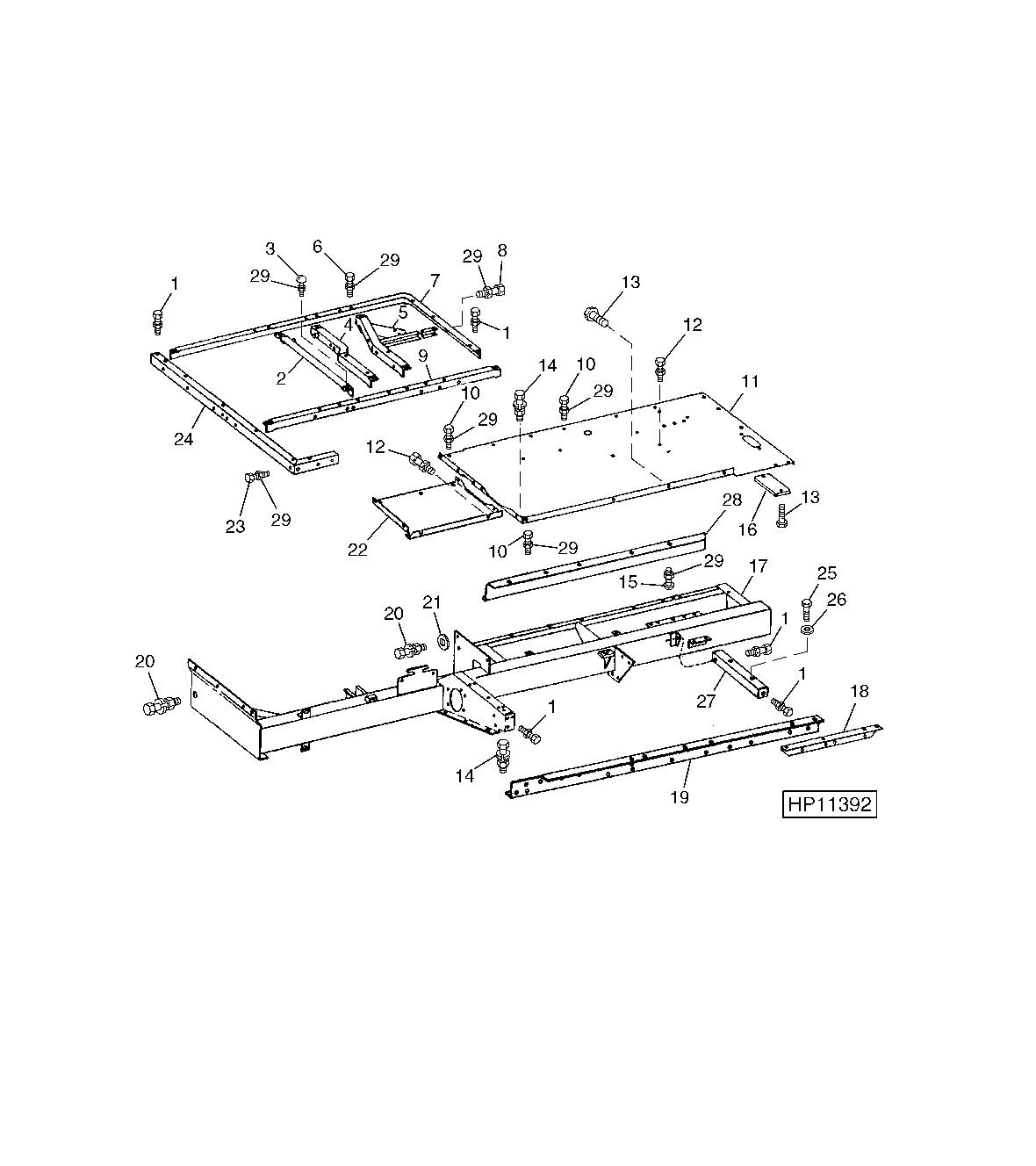

ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS ( - 101300)
