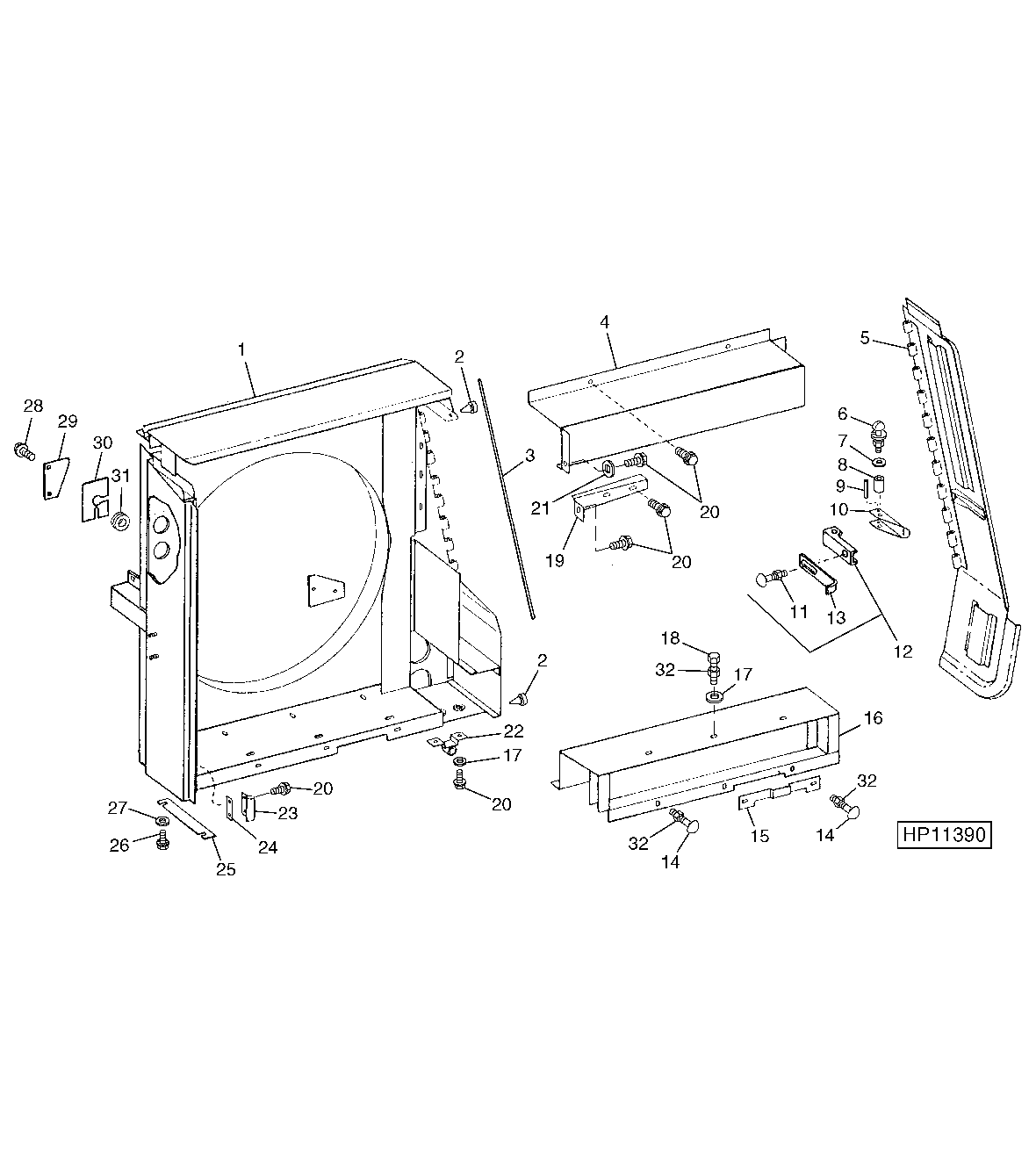

CORNER FRAME, RADIATOR CLOSURES, AND DOOR (101301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89019	1	Frame	-
1	AH87736	1	Frame	-
1	AH92224	1	Frame	-
2	H81804	2	Bumper	-
3	H86509	1	Pin	-
4	AH87728	1	Cover	-
4	AH89017	1	Cover	-
4	AH92222	1	Cover	UPPER
5	AH87641	1	Panel	-
5	AH90894	1	Panel	-
6	21H1045	1	Screw	1/4" X 2", (USE WITH 12H302 AND 14H786)
7	24H1287	1	Washer	9/32" X 5/8" X 0.065"
8	28H1955	1	Bushing	0.269" X 0.405" X 1-15/32"
9	34H270	1	Spring Pin	5/32" X 1-1/2"
10	-	1	Part 15	(SUB FOR H86493)(A)
11	14H850	2	NUT	1/4", (USE WITH 03H1268)(A)
11	03H1268	2	Bolt	5/16" X 3/4", SUB FOR 03H1416 (A)
12	AH139345	1	Handle Kit	(SUB FOR AH87636 OR AH87635 OR H86493), INCLUDES PARTS MARKED (A)
13	H89313	1	Bracket	(A)
14	03H1774	3	Bolt	5/16" X 5/8", (WITHOUT AIR CONDITIONING)
15	H86901	1	Bracket	-
16	AH87730	1	Support	BOTTOM (WITHOUT AIR CONDITIONING)
17	24H1136	5	Washer	11/32" X 11/16" X 0.065"
18	19H1813	3	CAP SCREW	5/16" X 5/8"
19	H86689	1	Bracket	-
20	N71292	12	SELF-LOCKING SCREW	-
21	24M7207	1	Washer	8.400 X 24 X 2 mm
22	H99937	1	Bracket	(SUB FOR AH87631)
23	H94605	2	Hinge	-
23	H86840	2	Hinge	-
24	H86523	2	Strap	-
25	H86688	1	Strap	-
26	N10214	2	Self-Locking Screw	-
27	24H1305	2	Washer	13/32" X 13/16" X 0.065"
28	37H3	2	SCREW	1/4" X 5/8", (WITH AIR CONDITIONING)
29	H87661	2	Cover	-
30	H88190	1	Cover	(WITH AIR CONDITIONING)
31	H80306	1	Grommet	(WITH AIR CONDITIONING)
32	N10213	1	Lock Nut	(A)
