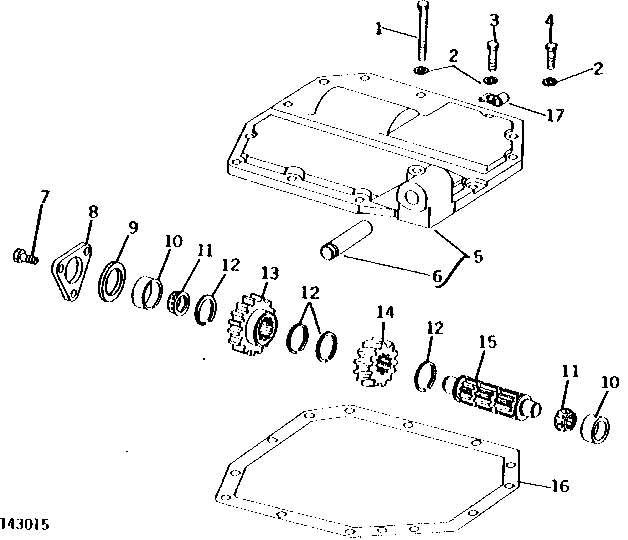

TRANSMISSION TOP COVER (SYNCRO-RANGE TRANSMISSION) [02B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2732	1	Cap Screw	3/8" X 2-3/4"
2	12H304	12	Lock Washer	3/8"
3	19H3239	10	Cap Screw	3/8" X 1-1/4"
4	19H2676	1	Cap Screw	3/8" X 1"
5	AT20219	1	COVER	WELLAND SERIAL NO. ( - 20800) TRANSMISSION CASE WITH BRAKE LEVER, (MARKED T20582)
5	AT28571	1	COVER	WELLAND SERIAL NO. ( 20801- ) TRANSMISSION CASE WITH PIN, (MARKED T20582)
6	-	1	Part 7	WELLAND SERIAL NO. ( - 20800) BRAKE LEVER PIVOT ( T22485, NO LONGER AVAILABLE)
6	T30685	1	DOWEL PIN	WELLAND SERIAL N0. ( 20801- ) (SUB FOR T27791)
7	19H1648	3	Cap Screw	3/8" X 3/4"
8	T20584	1	RETAINER	REVERSE COUNTERSHAFT BEARING
9	-	1	Part 11	(A) 0.08 MM (.003") ( T20374 NO LONGER AVAILABLE)
9	-	1	Part 13	(A) 0.25 MM (.010") ( T20376 NO LONGER AVAILABLE)
9	-	1	Part 12	(A) 0.13 MM (.005") ( T20375 NO LONGER AVAILABLE)
10	JD8226	2	Bearing Cup	-
11	JD8188	2	Bearing Cone	-
12	F534R	4	Snap Ring	-
13	T22020	1	GEAR	(18 TEETH) REVERSE
14	T26387	1	PINION	(SUB FOR T22019) (13 TEETH) REVERSE
15	T22018	1	COUNTERSHAFT	REVERSE
16	T20583	1	GASKET	-
17	H75541	3	Clamp	(SUB FOR R34557)

TRANSMISSION TOP COVER (SYNCRO-RANGE TRANSMISSION) [02B08]
