Открытый узел

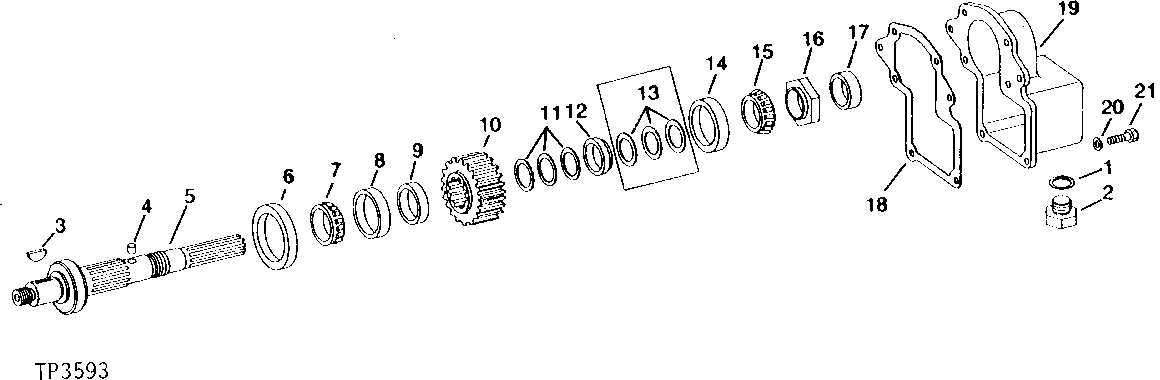

TRANSMISSION OUTPUT SHAFT AND DRIVEN GEAR (SYNCRO-RANGE TRANSMISSION) [02C16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4827R	1	Washer	-
2	R26727	1	DRAIN PLUG	(A) (SUB FOR T25831)
3	26H100	1	Shaft Key	5/16" X 1-1/2"
4	T16573	1	Pin	WELLAND SERIAL NO. ( 15149- 20282)
5	T24716	1	SHAFT	WELLAND SERIAL NO. ( - 15148) OUTPUT, (ALSO ORDER T24717, T16573, (2) L497T, (2) L498T AND (2) L499T) (SUB FOR T20432)
5	T24855	1	SHAFT	WELLAND SERIAL NO. ( 15149- 20282) (SUB AT27436)
5	AT27436	1	SHAFT	(A) WELLAND SERIAL NO. ( 20283- ) OUTPUT WITH PIN
6	AT13956	1	Seal	-
7	JD8922	1	BEARING CONE	-
8	JD8247	1	Bearing Cup	-
9	T20372	1	BUSHING	-
10	T20433	1	GEAR	WELLAND SERIAL NO. ( - 21153) OUTPUT SHAFT DRIVEN (24 TEETH) (SUB T33140)
10	T33140	1	GEAR	OUTPUT SHAFT DRIVEN (24 TEETH)
11	-	2	Part 14	(A) (B) ( L497T NO LONGER AVAILABLE) WELLAND SERIAL NO. ( 15149- ) (.002")
11	-	2	Part 15	(A) (B) ( L498T NO LONGER AVAILABLE) WELLAND SERIAL NO. ( 15149- ) (.005")
11	-	2	Part 16	(A) (B) ( L499T NO LONGER AVAILABLE) WELLAND SERIAL NO. ( 15149- ) (.010")
12	T24717	1	BUSHING	-
13	-	1	Part 18	(B) WELLAND SERIAL NO. ( - 15148) (.003") ( T20374 NO LONGER AVAILABLE)
13	-	1	Part 19	(B) WELLAND SERIAL NO. ( - 15148) (.005") ( T20375 NO LONGER AVAILABLE)
13	-	1	Part 20	(B) WELLAND SERIAL NO. ( - 15148) (.010") ( T20376 NO LONGER AVAILABLE)
14	JD7293	1	Bearing Cup	-
15	JD8996	1	Bearing Cone	-
16	T20383	1	LOCK NUT	WELLAND SERIAL NO. ( - 15148)
16	T24853	1	LOCK NUT	(A) WELLAND SERIAL NO. ( 15149- )
17	AT11888	1	SEAL	(SUB FOR AT16076)
18	T20527	1	GASKET	WELLAND SERIAL NO. ( - 15148)
18	T24710	1	GASKET	(A) WELLAND SERIAL NO. ( 15149- )
19	T20526	1	BEARING HOUSING W/O BEARING	WELLAND SERIAL NO. ( - 15148) (NO LONGER AVAILABLE)
19	T24711	1	COVER	(A) WELLAND SERIAL NO. ( 15149- )
20	12H304	6	Lock Washer	3/8"
21	19H3483	6	Cap Screw	3/8" X 1-1/8"
..	AT21762	1	SHAFT	TRANSMISSION OUTPUT IDLER GEAR AND OIL PUMP

TRANSMISSION OUTPUT SHAFT AND DRIVEN GEAR (SYNCRO-RANGE TRANSMISSION) [02C16]
