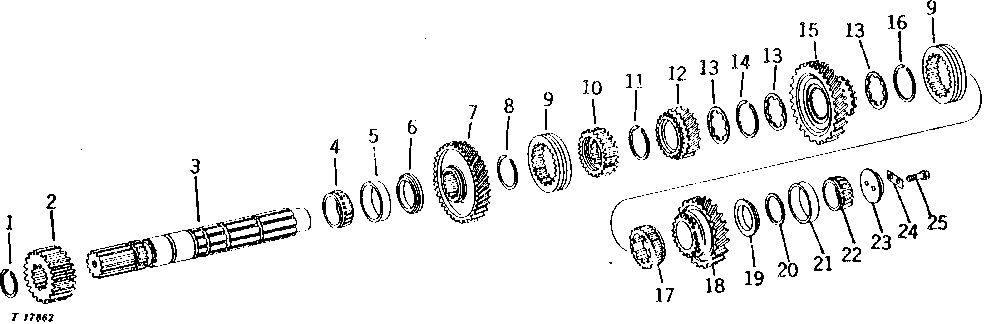

TRANSMISSION OUTPUT GEARS AND SHAFTS (SYNCRO-RANGE TRANSMISSION) [02C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24514	1	SNAP RING	(A) (SUB FOR T20377)
2	T20437	1	GEAR	WELLAND SERIAL NO. ( - 15148) (SUB T33139 AND T24718)
2	T24719	1	GEAR	WELLAND SERIAL NO. ( 15149- ) TRANSMISSION OUTPUT DRIVE (26 TEETH) (SUB T33139)
2	T33139	1	GEAR	(A) WELLAND SERIAL NO. ( 21154- ) (26 TEETH)
3	T22014	1	SHAFT	(ALSO ORDER R69214) (THRUST WASHER)
4	JD8952	1	Bearing Cone	-
5	JD8258	1	Bearing Cup	-
6	T24718	1	THRUST WASHER	(A) THRUST, REAR, (SUB FOR T20436)
7	AT32129	1	STEERING GEAR	1ST & 3RD SPEED WITH BUSHINGS (44 TEETH) (MARKED T32877)
8	R26264	1	Snap Ring	-
9	T26351	2	SHIFT COLLAR	TRANSMISSION SHIFTER, (SUB FOR T23519)
10	R33510	1	GEAR	TRANSMISSION SHIFTER (31 TEETH)
11	R33474	1	SNAP RING	-
12	R33511	1	GEAR	6TH & 8TH SPEED (24 TEETH)
13	R26253	3	THRUST WASHER	-
14	R26265	1	Snap Ring	-
15	T32878	1	GEAR	2ND & 5TH SPEED (38 TEETH)
16	R26266	1	SNAP RING	-
17	R26255	1	GEAR	TRANSMISSION SHIFTER, FRONT (31 TEETH)
18	R26990	1	GEAR	4TH & 7TH SPEED (31 TEETH)
19	R69214	1	THRUST WASHER	(SUB FOR R33386)
20	-	1	Part 22	(B) ( R33413 NO LONGER AVAILABLE) .003"
20	-	1	Part 23	(B) ( R33414 NO LONGER AVAILABLE) .005"
20	-	1	Part 24	(B) ( R33415 NO LONGER AVAILABLE) .010"
21	JD7427	1	Bearing Cup	-
22	JD8105	1	BEARING CONE	-
23	R50365	1	PLATE	(SUB FOR R33347)
24	R26072	1	STRAP	-
25	19H2676	2	Cap Screw	3/8" X 1"
..	AT21762	1	SHAFT	TRANSMISSION OUTPUT IDLER GEAR AND OIL PUMP (USE WHEN AT21763 TRANSMISSION CASE HAS BEEN INSTALLED AS A REPLACEMENT PART)

TRANSMISSION OUTPUT GEARS AND SHAFTS (SYNCRO-RANGE TRANSMISSION) [02C13]

Нет текстового описания
